Double Metal Shield BC4-10ZZ Deep Groove Ball Bearing Miniature Bearing 4mm × 10mm × 3mm
Double Seal BC4-10ZZ Deep Groove Ball Bearing Miniature Ball Bearing 4mm × 10mm × 3mm
Bearing Specification :
|
Model Number |
BC4-10ZZ |
|
Part Name |
Miniature Deep Groove Ball Bearing |
|
Brand |
FSKG / KBE / FAG / NTN / NSK / KOYO / OEM |
|
Precision Rating |
ABEC-3 / ABEC-5 |
| Material | Gcr15 Chrome Steel / Stainless Steel / Carbon Steel |
| Number of Row | Single Row |
|
Dimensions(mm)(d*D*b) |
4mm × 10mm × 3mm |
|
Weight / Mass ( KG ) |
0.001kg |
|
HS Code |
8482800000 |
| Original Country Show | CHINA |

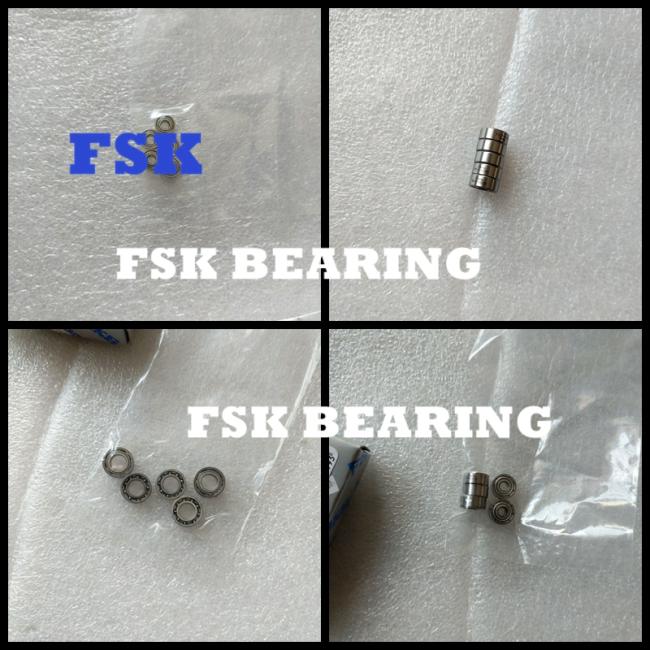

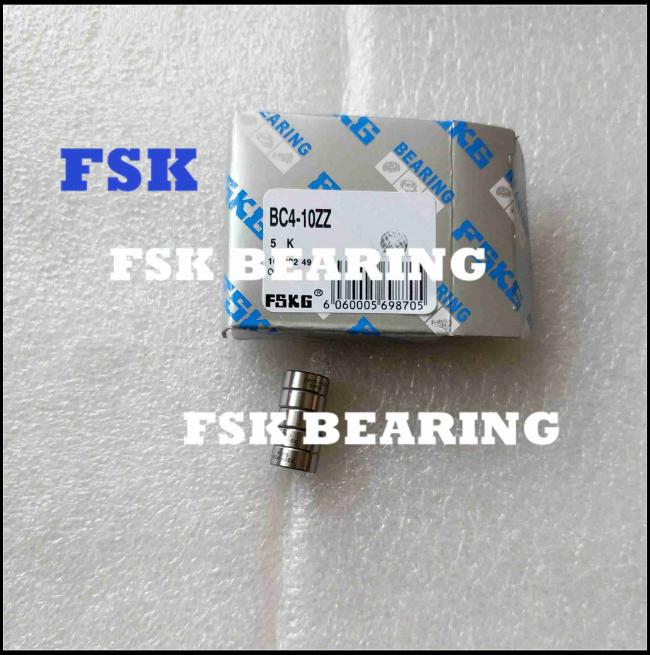

Bearings Detailed Pictures :

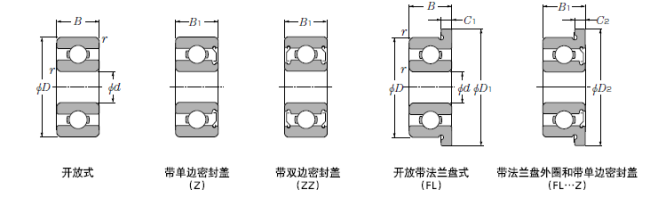

Same Series Miniature Balll Bearings List :
| Type | Size (mm) | Open Mass | FL Mass | |||||
| Open | Single seal | Double seal | Flange | d | D | B | g | g |
| 68/1.5 | W68/1.5SA | SSA | FL68/1.5 | 1.5 | 4 | 1.2 | 0.07 | 0.09 |
| 69/1.5A | W69/1.5ASA | SSA | FL69/1.5A | 1.5 | 5 | 2 | 0.18 | 0.24 |
| 60/1.5 | W60/1.5ZA | ZZA | FL60/1.5 | 1.5 | 6 | 2.5 | 0.35 | 0.42 |
| 672 | 2 | 4 | 1.2 | 0.06 | ||||
| 682 | W682SA | SSA | FL682 | 2 | 5 | 1.5 | 0.13 | 0.17 |
| BC2-5 | WBC2-5SA | SSA | 2 | 5 | 2 | 0.16 | ||
| 692 | W692SA | SSA | FL692 | 2 | 6 | 2.3 | 0.31 | 0.38 |
| BC2-6 | FLBC2-6 | 2 | 6 | 2.5 | 0.32 | 0.38 | ||
| BC2-7A | 2 | 7 | 2.5 | 0.44 | ||||
| 602 | W602ZA | ZZA | FL602 | 2 | 7 | 2.8 | 0.54 | 0.64 |
| 67/2.5 | W67/2.5ZA | ZZA | 2.5 | 5 | 1.5 | 0.11 | ||
| 68/2.5 | W68/2.5ZA | ZZA | FL68/2.5 | 2.5 | 6 | 1.8 | 0.22 | 0.26 |
| WBC2.5-7ZA | ZZA | 2.5 | 7 | 3 | 0.63) | 0.673) | ||
| 69/2.5 | W69/2.5SA | SSA | FL69/2.5 | 2.5 | 7 | 2.5 | 0.43 | 0.53 |
| BC2.5-8 | WBC2.5-8ZA | ZZA | FLBC2.5-8 | 2.5 | 8 | 2.5 | 0.57 | 0.65 |
| 60/2.5 | W60/2.5ZA | ZZA | FL60/2.5 | 2.5 | 8 | 2.8 | 0.72 | 0.83 |
| 673 | WA673SA | SSA | FL673 | 3 | 6 | 2 | 0.2 | 0.26 |
| 683 | W683ZA | ZZA | FL683 | 3 | 7 | 2 | 0.33 | 0.38 |
| BC3-8 | FLBC3-8 | 3 | 8 | 2.5 | 0.52 | 0.6 | ||
| 693 | W693Z | ZZ | FL693 | 3 | 8 | 3 | 0.61 | 0.72 |
| BC3-9 | WBC3-9ZA | ZZA | FLBC3-9 | 3 | 9 | 2.5 | 0.71 | 0.79 |
| 603 | W603Z | ZZ | FL603 | 3 | 9 | 3 | 0.92 | 1 |
| 623 | 623Z | ZZ | FL623 | 3 | 10 | 4 | 1.6 | 1.8 |
| 674A | WA674ASA | SSA | FL674A | 4 | 7 | 2 | 0.28 | 0.35 |
| BC4-8 | WBC4-8Z | ZZ | FLBC4-8 | 4 | 8 | 2 | 0.38 | 0.46 |
| 684AX50 | W684AX50Z | ZZ | FL684AX50 | 4 | 9 | 2.5 | 0.67 | 0.76 |
| BC4-10 | WBC4-10Z | ZZ | FLBC4-10 | 4 | 10 | 3 | 1 | 1.1 |
| 694 | 694Z | ZZ | FL694 | 4 | 11 | 4 | 1.8 | 2 |
| 604 | 604Z | ZZ | FL604 | 4 | 12 | 4 | 2.1 | 2.3 |
| 624 | 624Z | ZZ | FL624 | 4 | 13 | 5 | 3.2 | 3.5 |
| 634 | 634Z | ZZ | 4 | 16 | 5 | 5.1 | ||
| 675 | WA675Z | ZZ | FL675 | 5 | 8 | 2 | 0.32 | 0.4 |
| BC5-9 | WBC5-9Z | ZZ | FLBC5-9 | 5 | 9 | 2.5 | 0.55 | 0.63 |
| BC5-10 | WBC5-10Z | ZZ | FLBC5-10 | 5 | 10 | 3 | 0.88 | 0.97 |
About FSK Bearing Company:
Advantage :
1. Low noice
2. Wear resistant
3. Easy replacement
4. Minimum lubrication
5. Requires little attention
6. Running in not required
7. Dimensions relatively small
8. No scraping required to fit shaft
Our Service :
1. Highest quality and most competitive price----we are the only one manufacture who adopts import raw materials. Low bad rates, is just 0.1%. It is amazing, and with cheap price and guaranteed quality.
2. Delivery fast -----Goods be sent out within 3 to 7 days based on order quantity.
3. Professional-----We are special in source and sells, as development, methods, conjugations, and handling.
4. Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long term business.
Double Seal BC4-10ZZ Deep Groove Ball Bearing Miniature Ball Bearing 4mm × 10mm × 3mm,Get Cheap Price from China Roller Bearing Factory Now !
