Thick Walled 62309 2RSR C3 Single Row Deep Groove Ball Bearing 45 × 100 × 36 mm
62309-2RSR/C3 Deep Groove Ball Bearing Agricultural Machinery Bearing 45 × 100 × 36 mm
62309-2RSR/C3 Bearing Specification :
|
Model Number |
62309-2RS C3 |
|
Part Name |
Deep Groove Ball Bearing |
| Feature | Thick Walled Bearing |
|
Brand |
FSKG / KBE / FAG / NTN / NSK / KOYO / OEM |
|
Precision Rating |
ABEC-3 to ABEC-5 |
| Material | Gcr15 Chrome Steel |
| Vibration | Z2V2 / Z3V3 |
|
Dimensions(mm)(d*D*b) |
45 × 100 × 36 mm |
|
Weight / Mass ( KG ) |
1.2 kg |
|
HS Code |
8482800000 |
| Original Country Show | CHINA |
Ball Bearings List :
| Bearing Model | Size(mm) |
Mass (kg) |
||||||||||
| Current | Old | Z | 2Z | RZ | 2RZ | RS | 2RS | d | D | B |
Rs min |
|
| 62200 | 180500 | 62000-Z | 62200-2Z | 62200-RZ | 62200-2RZ | 62200-RS | 62200-2RS | 10 | 30 | 14 | 1 | 0.044 |
| 62201 | 180501 | 62201-Z | 62201-2Z | 62201-RZ | 62201-2RZ | 62201-RS | 62201-2RS | 12 | 32 | 14 | 1.1 | 0.053 |
| 62202 | 180502 | 62202-Z | 62202-2Z | 62202-RZ | 62202-2RZ | 62202-RS | 62202-2RS | 15 | 35 | 14 | 1.1 | 0.065 |
| 62203 | 180503 | 62203-Z | 62203-2Z | 62203-RZ | 62203-2RZ | 62203-RS | 62203-2RS | 17 | 40 | 16 | 0.6 | 0.086 |
| 62204 | 180504 | 62204-Z | 62204-2Z | 62204-RZ | 62204-2RZ | 62204-RS | 62204-2RS | 20 | 47 | 18 | 1 | 0.134 |
| 62205 | 180505 | 62205-Z | 62205-2Z | 62205-RZ | 62205-2RZ | 62205-RS | 62205-2RS | 25 | 52 | 18 | 1 | 0.146 |
| 62206 | 180506 | 62206-Z | 62206-2Z | 62206-RZ | 62206-2RZ | 62206-RS | 62206-2RS | 30 | 62 | 20 | 1 | 0.249 |
| 62207 | 180507 | 62207-Z | 62207-2Z | 62207-RZ | 62207-2RZ | 62207-RS | 62207-2RS | 35 | 72 | 23 | 1.1 | 0.381 |
| 62208 | 180508 | 62208-Z | 62208-2Z | 62208-RZ | 62208-2RZ | 62208-RS | 62208-2RS | 40 | 80 | 23 | 1.1 | 0.45 |
| 62209 | 180509 | 62209-Z | 62209-2Z | 62209-RZ | 62209-2RZ | 62209-RS | 62209-2RS | 45 | 85 | 23 | 1.1 | 0.485 |
| 62210 | 180510 | 62210-Z | 62210-2Z | 62210-RZ | 62210-2RZ | 62210-RS | 62210-2RS | 50 | 90 | 23 | 1.1 | 0.535 |
| 62211 | 180511 | 62211-Z | 62211-2Z | 62211-RZ | 62211-2RZ | 62211-RS | 62211-2RS | 55 | 100 | 25 | 1.5 | 0.68 |
| 62212 | 180512 | 62212-Z | 62212-2Z | 62212-RZ | 62212-2RZ | 62212-RS | 62212-2RS | 60 | 110 | 28 | 1.5 | 1.01 |
| 62213 | 180513 | 62213-Z | 62213-2Z | 62213-RZ | 62213-2RZ | 62213-RS | 62213-2RS | 65 | 120 | 31 | 1.5 | 1.28 |
| 62214 | 180514 | 62214-Z | 62214-2Z | 62214-RZ | 62214-2RZ | 62214-RS | 62214-2RS | 70 | 130 | 31 | 1.5 | 1.4 |
| 62304 | 180604 | 62304-Z | 62304-2Z | 62304-RZ | 62304-2RZ | 62304-RS | 62304-2RS | 20 | 52 | 21 | 1.1 | 0.197 |
| 62305 | 180605 | 62305-Z | 62305-2Z | 62305-RZ | 62305-2RZ | 62305-RS | 62305-2RS | 25 | 62 | 24 | 1.1 | 0.302 |
| 62306 | 180606 | 62306-Z | 62306-2Z | 62306-RZ | 62306-2RZ | 62306-RS | 62306-2RS | 30 | 72 | 27 | 1.1 | 0.489 |
| 62307 | 180607 | 62307-Z | 62307-2Z | 62307-RZ | 62307-2RZ | 62307-RS | 62307-2RS | 35 | 80 | 31 | 1.5 | 0.614 |
| 62308 | 180608 | 62308-Z | 62308-2Z | 62308-RZ | 62308-2RZ | 62308-RS | 62308-2RS | 40 | 90 | 33 | 1.5 | 0.843 |
| 62309 | 180609 | 62309-Z | 62309-2Z | 62309-RZ | 62309-2RZ | 62309-RS | 62309-2RS | 45 | 100 | 36 | 1.5 | 1.11 |
| 62310 | 180610 | 62310-Z | 62310-2Z | 62310-RZ | 62310-2RZ | 62310-RS | 62310-2RS | 50 | 110 | 40 | 2 | 1.47 |
| 62311 | 180611 | 62311-Z | 62311-2Z | 62311-RZ | 62311-2RZ | 62311-RS | 62311-2RS | 55 | 120 | 43 | 2 | 1.95 |
| 62312 | 180612 | 62312-Z | 62312-2Z | 62312-RZ | 62312-2RZ | 62312-RS | 62312-2RS | 60 | 130 | 46 | 2.1 | 2.5 |
| 62313 | 180613 | 62313-Z | 62313-2Z | 62313-RZ | 62313-2RZ | 62313-RS | 62313-2RS | 65 | 140 | 48 | 2.1 | 2.94 |
| 62314 | 180614 | 62314-Z | 62314-2Z | 62314-RZ | 62314-2RZ | 62314-RS | 62314-2RS | 70 | 150 | 51 | 2.1 | 3.58 |

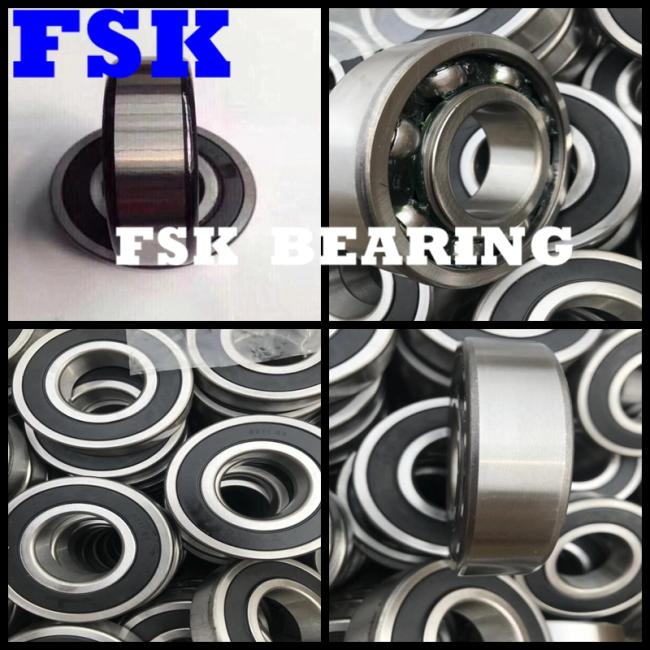

62309-2RSR/C3 Bearings Detailed Pictures :
The Other Bearings We Do:
Advantage :
1. Low friction
2. Wear resistant
3. Easy replacement
4. Minimum lubrication
5. Requires little attention
6. Running in not required
7. Dimensions relatively small
8. No scraping required tofit shaft
Our Service :
1. Highest quality and most competitive price----we are the only one manufacture who adopts import raw materials. Low bad rates, is just 0.1%. It is amazing, and with cheap price and guaranteed quality.
2. Delivery fast -----Goods be sent out within 3 to 7 days based on order quantity.
3. Professional-----We are special in source and sells, as development, methods, conjugations, and handling.
4. Best service-----Answering e-mails or solving questions timely. Delivery and update information on time. Trust, good quality and service are the basic of long term business.
