Heavy Duty SIKAC10M Joint Rod Ends Bearing Female Thread , SIKAC12M , SIKAC 14 M
Heavy Duty SIKAC10M , SIKAC12M Joint Rod Ends Bearing Shank Thread Size: M10x1.5 / M 12 mm
SIKAC10M Bearing Specification :
| FSK BEARING Model Number | SIKAC10M |
| Part Name | Joint Rod Ends Bearing |
| Material | Gcr15 Chrome steel / Stainless Steel / Carbon Steel |
| Cage | Steel Cage / Iron Cage |
| Row | Single Row |
| Dimensions(mm)(d*D*b) | 10 × 26 × 14 mm |
| Weight / Mass ( KG ) | 0.077 kg |
| Precision Rating | ABEC-7/ P4 |
| Brand | FSKG / KBE / OEM / Any Brand |
| Original Country Show | CHINA ( FSKG) |

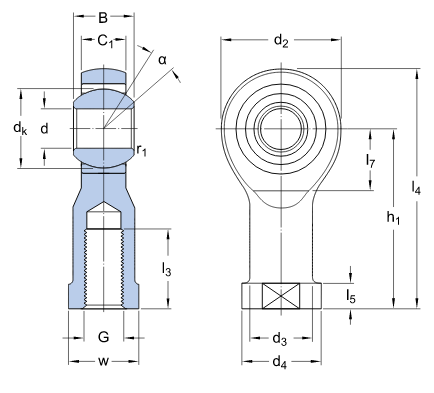

FSK SIKAC Series Bearings list
| Type | Dimension | Angle of inclination | Reted load(kN) | ||||||
| Model No. | d | d2 | B | G | C1 | h1 | α | dynamic | static |
| mm | ° | C | C0 | ||||||
| SIKAC 5 M | 5 | 19 | 8 | M 5 | 7.5 | 27 | 13 | 3.25 | 5.4 |
| SILKAC 5 M | 5 | 19 | 8 | M 5 | 7.5 | 27 | 13 | 3.25 | 5.4 |
| SIKAC 5 M/VZ019 | 5 | 19 | 8 | M 4 | 7.5 | 27 | 13 | 3.25 | 5.4 |
| SIKAC 6 M | 6 | 21 | 9 | M 6 | 7.5 | 30 | 13 | 4.3 | 5.4 |
| SILKAC 6 M | 6 | 21 | 9 | M 6 | 7.5 | 30 | 13 | 4.3 | 5.4 |
| SILKAC 8 M | 8 | 25 | 12 | M 8 | 9.5 | 36 | 13 | 7.2 | 9.15 |
| SIKAC 8 M | 8 | 25 | 12 | M 8 | 9.5 | 36 | 13 | 7.2 | 9.15 |
| SILKAC 10 M | 10 | 29 | 14 | M 10 | 11.5 | 43 | 13 | 10 | 12.2 |
| SIKAC 10 M | 10 | 29 | 14 | M 10 | 11.5 | 43 | 13 | 10 | 12.2 |
| SIKAC 10 M/VZ019 | 10 | 29 | 14 | M 10x1.25 | 11.5 | 43 | 13 | 10 | 12.2 |
| SILKAC 12 M | 12 | 33 | 16 | M 12 | 12.5 | 50 | 13 | 13.4 | 14 |
| SIKAC 12 M/VZ019 | 12 | 33 | 16 | M 12x1.25 | 12.5 | 50 | 13 | 13.4 | 14 |
| SIKAC 12 M | 12 | 33 | 16 | M 12 | 12.5 | 50 | 13 | 13.4 | 14 |
| SIKAC 14 M | 14 | 37 | 19 | M 14 | 14.5 | 57 | 15 | 17 | 20.4 |
SIKAC10M Bearing Photos :
Other Bearings We Offer
| Deep groove ball bearings | Linear ball bearings | Pillow block bearings | Clutch release bearings |
| Cylindrical roller bearings | Needle roller bearings | Thrust ball bearings | Thrust roller bearings |
| Spherical roller bearings | Ball joint bearings | Conveyor roller bearings | Angular contact ball bearings |
