IP65 Outdoor Handheld Android Barcode Scanner Laser For FMCG, Logistics&Express, retail
IP65 Outdoor Handheld Android Barcode Scanner Laser For FMCG, Logistics&Express, retail
Key features:
1, Aluminum-magnesium alloy frame. Providing robust protection for the device.
2, Innovative magnetic attraction charging connector that facilitates charging.
3, OEM by FOXCONN.
4, Support 4G networks.
Description:
1, Customized for logistics&express: this series PDA has thickest dimension and light weight.
2, High configuration: Android 5.1 OS with 8GB ROM, 1GB RAM.
3, A wide range of WWLAN: FDD B1B3B7,TDD B38B39B40,WCDMA B1B2B5B8,EVDO BC0,GSM B2B3B5B8.

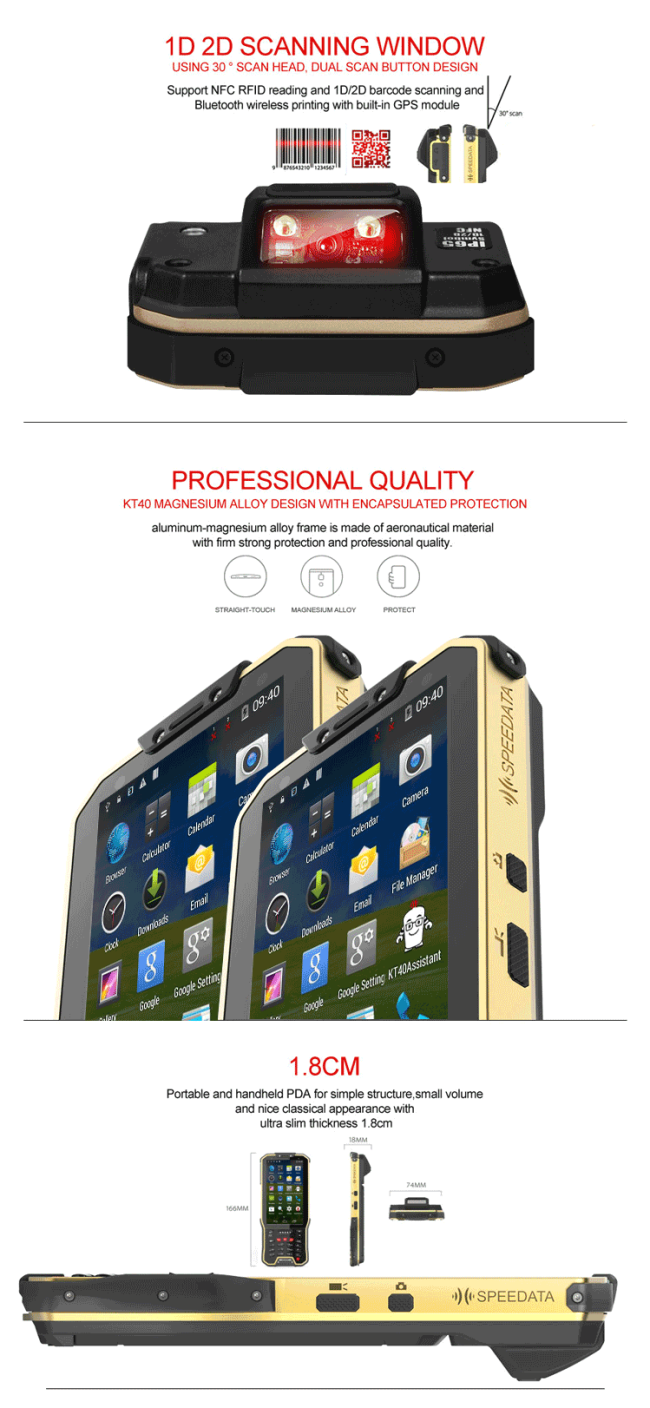

Specifications of KT40
- Super 4.0 inch FHD LCD Screen,visible Under the strong light,grt Visual Effect outdoors
- 800MP camera with high definition ,it's easy to collect all kinds of image information
- Support 14443A/15693 and NFC for the RFID Reading flexibly and accurately
- Support 1D/2D barcode scanning with High-performance
- Support Bluetooth wireless printing with built-in GPS module
- Highly precise GPS with rapid start and accurate positioning
- IP65 standard certification, 1.5M drop protection
- support Wifi,Bluetooth and 4G wireless communication
More details of KT40Q
| Development Environment | |
| Operating System | Android 5.1 |
| SDK | Software Development Kit |
| Language | Java |
| Fundamental Characteristics | |
| CPU | ARM® Cortex-A53 (LPDDR2 and LPDDR3) Quad-core 1.3Ghz |
| Memory | 1GB DDR3 RAM + 8GB Flash ROM |
| Storage | Micro SD/TF card max.32GB expansion |
| Display | 4.0inch IPS 480 * 800 px with Multi-point touch capacitive screen |
| Communications | |
| WWLAN |
FDD B1B3B7 TDD B38B39B40
|
|
WCDMA B1B2B5B8 EVDO BC0
|
|
| GSM B2B3B5B8 | |
| WiFi | 2.4Ghz 802.11 b/g/n |
| Bluetooth | V2.1+EDR / 3.0+HS / V4.0 Low Energy(LE) |
| GPS | Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS |
| Physical Characteristics | |
| Dimensions | 166 * 74 * 16mm (Thickest 30mm) |
| Weight | 300g with battery (according configuration) |
| Expansion Slots | 1*Standard SIM apply GSM,GPRS,EDGE, 1*Micro SIM apply 4G |
| Battery | rechargeable li-ion battery 4300mAh 3.7V |
| 500-hours standby time, Up to 6-hours calling time, 4-hours charging time | |
| Camera | 8MP Camera |
| Video | Support still image and video capture |
| Audio | 3.5mm 4way plug |
| Keypad | Front 23keys, Side 4keys |
| Interfaces | 1*MicroSD/TF, 1*Audio Jack, 1*Micro USB, 1*Power Jack |
| USB Host/RS-232 interface (Customized) | |
| User Environment | |
| Operating Temp. | 0 to 50℃ |
| Humidity | 10%RH - 80%RH (Non-condensing) |
| Protection class | IP65 |
| Drop resistance level | 1.5M |
|
Data Modules for your inference |
|
| RFID NFC readers | |
| NFC | NFC(Compatible 13.56MHz ISO 14443A/ ISO15693) |
| Barcode scanners | |
| 1D scanner | Symbol SE955 (Optional 1) |
| Honeywell N4313 (Optional 2) | |
| 1D/2D laser scanner | NEWLAND EM3095 -hardware decoding (Optional 1) |
| Symbol SE4500SR-software decoding (Optional 2) | |
As a listed company from china manufacturing barcode scanners, we support you:
- Completely Free SDK and technical support for you.
- ODM/OEM and 6 kinds of customization services according to your needs.
- 13months warranty for your devices and other parts. and 6 months for the batteries. Exend warranty,it'll cost 0.5% for each per year.
- Free maintenance of the devices and part of accessories replacement in the warranty .if out of the warranty, you'll have to pay the basic cost for them.

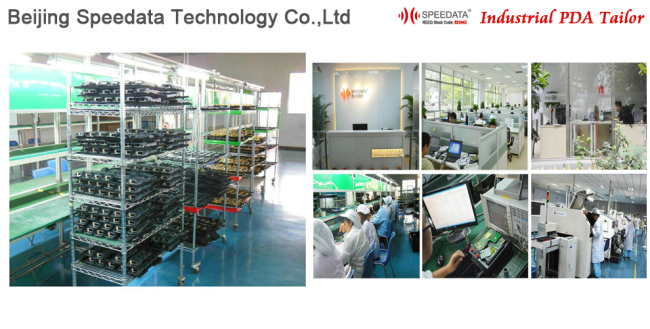

Beijing Speedata Technology Co., Ltd (stock code: 832442 ), founded in 2008, is a provider of IoT (Internet of Things)solutions and OEM/ODM manufacturer of wireless hardware terminal and software solution, focusing on such wireless network enabling technologies as 1D/2D Barcode scanner, RFID , 433M, MSR, ZigBee, PSAM, and IC card reader...
At the same time, we successfully cooperated with Foxconn by OEM/ODM in Shenzhen.
We have a strong R&D team for not only hardware but also software, have developed the following solutions for our customers:
- Cold-chain logistics and transportation tracking
- meat product tracking
- Mobile police service
- Fixed-Assets management
- Tickets checking
More industrial solutions of management systems as following:
| 1.Logistics & Express | 7.Geomatics & Surveying | 13.Surveying and mapping |
| 2.Transportation | 8.Product tracking | 14.Agriculture |
| 3.Electric meter readings | 9.Health & pharmaceutical industry | 15.Water conservation |
| 4.Network community management | 10.Mobile police service | 16.Animal tracking & research |
| 5. Storage & Distribution | 11.Tobacco Logistics | 17.Retail chain |
| 6.Petrochemical inspection | 12.Fixed-assets management | …… |
