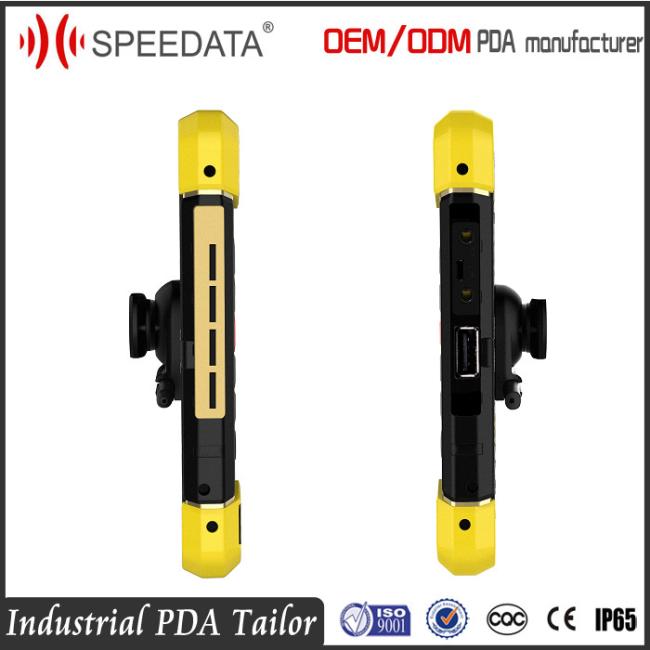

Multiple Functions Portable Industrial PC Tablet With 6800mAh Battery *2
Multiple Functions Portable Industrial PC Tablet With 6800mAh Battery *2
Quick details of KT80 Tablet:
1, Key feature: Basic functions as Smart phone.
2, Memory Capacity: 16GB ROM, 2GB RAM.
3, Wireless functions: dual WIFI, Bluetooth, GPS( support full AGPS).
4, Camera function: 13MP rear camera and 5MP front camera
5, Powerful productivity to make sure the delivery time.
6, Free SDK and 13 months warranty, technical support.
Paraments of KT80 Android Tablet PC:
| Android OS | ||
| OS | Android 5.1 | |
| Hardware | ||
| Core | CPU | OCTA-core 1.3Ghz ARM® Cortex-A53 |
| WWLAN | FDD B1B3B7 TDD B38B39B40 WCDMA B1B2B5B8 EVDO BC0 GSM B2B3B5B8 |
|
| Flash ROM | 16GB | |
| RAM | 2GB DDR3 | |
| General Configuration | ||
| Display | 8 inch IPS 1024*768 | |
| touch screen | Multi-point touch capacitive screen | |
| Stylus | YES | |
| GPS | YES | |
| Bluetooth | v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE) | |
| WiFi | 802.11 a/b/g/n | |
| Protection class | IP65 | |
| Drop resistance level | 1.5m | |
| Camera | Back camera | 13MP Camera |
| Front camera | 5MP Camera | |
| Sensor | G-sensor | LIS3DH |
| Compass | AK09911C | |
| Gyro | MPU3050C | |
| Light | STK3410 | |
| Keypad | Front /Side | CBD |
| Interface | Miro-USB connector | USB2.0 OTG |
| SIM card slot | 2 Micro SIM slot | |
| TF card slot | Yes | |
| charging | Micro USB + Magnetic charging | |
| Audio Jack | Yes | |
| External Interface | USB HOST | yes |
| RS232 | yes | |
| Battery | Type | rechargeable Li-ion battery 13600mAh |
| Standby Time | 600hours | |
| Calls Time | Up to 6hours | |
| Charging Time | 15hours (magnetic charging) | |
| Physical Characteristics | Dimension | 270*176*20mm |
| Weight | >800g with battery (according config) | |
| Operating temperature | -20°C to 50°C / -4°F to 122°F | |
| Storage temperature | -30°C to 70°C / -22°F to 158°F | |
| Humidity (non-condensed) | Operating 10% to 90% / Storage 5% to 95% | |
| Electrostatic discharge | ± 15 kV air discharge, ± 8 kV contact discharge | |
| EMC regulation | CE | |
| External Expansions | ||
| barcode scanner | option | 1D&2D bacode scanner |
| RFID Reader | option 1 | LF RFID(134.2khz, ISO11784/11785, FDX-B/HDX) |
| option 2 | LF RFID(125KHz) | |
| option 3 | HF RFID(13.56MHz ISO 1443A/B ISO 15693) | |
| option 4 | NFC(include 13.56MHz ISO 1443A/B ) | |
| option 5 |
UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with R2000 shipset, Long distance reader. |
|
| Fingerprint Scanner | option1 | UPEC TCS1(With FBI, FIPS-201 ,ISO19794,ANSI,WSQ) |
| option2 | PRO 20 | |
| option3 |
U.ARE.U4500(FIPS 201/PIV and FBI standard formats) |
|
| Customization | MRZ | |
| IRIS | ||
| Other customers custom module. | ||
Application of KT80 Tablet PC:
Much experience on various fields functions usage:
- Product tracking
- Health & pharmaceutical industry
- Mobile police service
- Tobacco Logistics
- Fixed-assets management
- Surveying and mapping
- Agriculture
- Water conservation
- Animal tracking & research
- Retail chain
Advantage of KT80 Tablet:
1, Armored frame--inner strong power: Unibody metal frame, firm and strong aviation level material magnalium alloy, offer powerful protection from the inside out.
2, Versatile--flexible functions transforming for custom: Various interfaces reservation like USB, RS232, GPIO, SPI, Power supply; functions diversity for custom or semi-custom.
3, Soft--rubber protection: Rubber at each corner effective, buffer protection when drop.
4, Quick scan--convenient and speedy: Concealed scan design, slim and smart.
5, IRIS recognition--innovative and safer: Pioneering application in PDA field, brings you distinctive unlocking experience.
