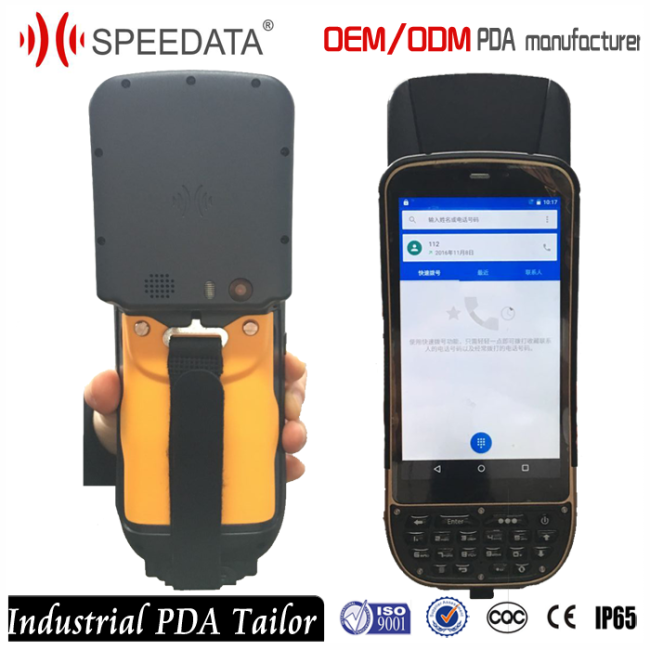

4G LTE Handheld UHF RFID Reader , Smartphone Handheld PDA Long Distance
Price:
Negotiable
MOQ:
1 Unit
Delivery Time:
Negotiable
Brand:
SPEEDATA
Product Description
4G LTE Handheld UHF RFID Reader , Smartphone Handheld PDA Long Distance
OPTIONS |
||
RFID Reader |
option 1 | LF RFID(134.2khz, ISO11784/11785, FDX-B/HDX) |
| option 2 | LF RFID(125KHz) | |
| option 3 | HF RFID(13.56MHz ISO 1443A/B ISO 15693) | |
| option 4 | NFC(include 13.56MHz ISO 1443A/B ) | |
| option 5 |
UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode --with AS3992 shipset |
|
| option 6 |
UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode--with R2000 shipset, Long distance reader. |
|
| option 7 |
UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) -with PR92000 shipset |
|
| UHF RFID antanna1 | Circularly polarized Dielectric Ceramics | |
| Antenna model: 40*40*5mm | ||
| Frequency Range: 922.5MHz±8MHz | ||
| Gain(Typical): 2dBi Based on65×65mm ground plane | ||
| Impendence: 50 ohm | ||
| UHF RFID antanna2 | Circularly polarized Dielectric Ceramics | |
| Antenna model: 40*40*5mm | ||
| Frequency Range: 865MHz-868MHz | ||
| Gain(Typical): 2dBi Based on65×65mm ground plane | ||
| Impendence: 50 ohm | ||
| UHF RFID antanna3 | Circularly polarized Dielectric Ceramics | |
| Antenna model: 35*35*5mm | ||
| Frequency Range: 922.5MHz±8MHz | ||
| Gain(Typical): 2dBi Based on35×35mm ground plane | ||
| Impendence: 50 ohm | ||
Paraments of KT45Q Handheld UHF RFID Reader :
Android OS |
||
| OS | Android 5.1 | |
| Hardware | ||
| Core board | CPU | Quad-core 1.3Ghz ARM® Cortex-A53 (LPDDR2 and LPDDR3) |
| WWLAN | FDD B1B3B7 TDD B38B39B40 WCDMA B1B2B5B8 EVDO BC0 GSM B2B3B5B8 |
|
| Flash ROM | 8GB | |
| RAM | 1GB DDR3 | |
Motherboard |
||
| Display @ | 4.5inch IPS 480*854 | |
| touch screen | Multi-point touch capacitive screen | |
| Form Factor | Bar type classical PDA,Industrial appearance | |
| GPS |
Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS |
|
| DGPS (please check options) | ||
| Bluetooth | v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE) | |
| WiFi | 2.4Ghz 802.11 b/g/n | |
| External Interface | USB HOST/RS232(Customized) | |
| Protection class | IP65 | |
| Drop resistance level | 1.5m | |
| Camera Function | Camera | 8MP Camera |
| Video | Support still image and video capture | |
| Sensor | G-sensor | YES |
| Keypad | Front | 17 |
| Side | 4 | |
| Interface | Mini-USB connector | USB2.0 connection |
| SIM card slot | *2 | |
| TF card slot | Yes | |
| power jack | Yes | |
| Audio Jack | Yes | |
| Battery | Type | rechargeable Li-ion battery 4500mAh |
|
Standby Time |
500hours | |
| Calls Time | Up to 6hours | |
|
Charging Time |
4 hours | |
| Physical Characteristics | Dimension | 175*76*27mm |
| Weight | >400g with battery (according config) | |
|
|
||
 |
||
UHF Reader Scanner with Barcode Sccanner and Fingerprint Reader Optional.
4G LTE Rugged Smartphone Handheld PDA support UHF RFID Reader Long Distance
4G LTE Rugged Smartphone Handheld PDA support UHF RFID Reader Long Distance
