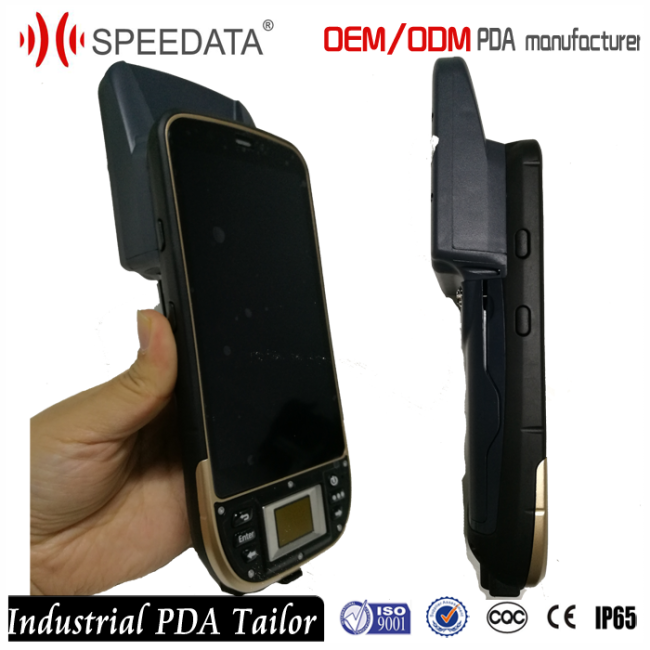

Android Smart Card Uhf Rfid Handheld Reader 900mhz Modules Rechargeable Battery
Price:
Negotiable
MOQ:
1 Unit
Delivery Time:
Negotiable
Brand:
SPEEDATA
Product Description
Android Smart Card Uhf Rfid Handheld Reader 900mhz Modules Rechargeable Battery
SPEEDATA has great advantages as following:
- 1.Listed Company Founded in 2008
- 2.Focusing On the IOT Field for Over 8 Years.
- 3.Support 6 kinds of OEM/ODM Customized Service.
- 4.Professional R&D Capability: Free SDK and Technical Support
- 5.ISO9001 Verified Manufacturer Passed FCC CE IP65 Certificate
- 6.Hardware and Software Solutions Provider
- 7.Assembled with Various Modules
- 8.After-Sale Service: 13 Months Warranty
Applications of KT45Q Handheld UHF RFID Reader :
- Logistics & Express
- Transportation
- Electric meter readings
- Network community management
- Storage & Distribution
- Petrochemical inspection
- Product tracking
- Health & pharmaceutical industry
- Tobacco Logistics
- Fixed-assets management
- Surveying and mapping
- Animal tracking & research
Advantages of KT50 Android Handheld PDA:
- Android 5.1 Operation System
- 4G LTE
- 1GB RAM or 2GB RAM Custom Made
- 5.0inch High-definition IPS LCD capacitive touch screen
- IP65 Industrial Class, 1.5M drop protection
Parameter of KT50 Android Handheld PDA:
KT50 Specification |
|||||
Android OS |
|||||
| OS | Android 5.1 | ||||
| Hardware | |||||
| Core board | CPU | Quad-core 1.3Ghz ARM® Cortex-A53 (LPDDR2 and LPDDR3) |
|||
| WWLAN | FDD B1B3B7 TDD B38B39B40 WCDMA B1B2B5B8 EVDO BC0 GSM B2B3B5B8 |
||||
| Flash ROM | 16GB | ||||
| RAM | 2GB DDR3 | ||||
Motherboard |
|||||
| Display @ | 5.0inch IPS 1280*720 | ||||
| touch screen | Multi-point touch capacitive screen | ||||
| Form Factor | Bar type classical PDA,Industrial appearance | ||||
| GPS | Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS | ||||
| DGPS (please check options) | |||||
| Bluetooth | v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE) | ||||
| dual-band WiFi | 2.4 and 5Ghz 802.11 a/b/g/n | ||||
| External Interface | USB HOST/RS232(Customized) | ||||
| Protection class | IP65 | ||||
| Drop resistance level | 1.5m | ||||
| Camera Function | Camera | 8MP Camera | |||
| Video | Support still image and video capture | ||||
| Sensor | G-sensor | YES | |||
| Keypad | Front | 4 | |||
| Side | 4 | ||||
| Interface | Mini-USB connector | USB2.0 connection | |||
| SIM card slot | *2 | ||||
| TF card slot | Yes | ||||
| power jack | Yes | ||||
| Audio Jack | Yes | ||||
| Battery | Type | rechargeable Li-ion battery 2600mAh, 7.4V | |||
| Standby Time | 500hours | ||||
| Calls Time | Up to 6hours | ||||
| Charging Time | 4 hours | ||||
| Physical Characteristics | Dimension | 175*76*27mm | |||
| Weight | >400g with battery (according config) | ||||
OPTIONS |
|||||
| RFID Reader | option 1 | LF RFID(134.2khz, ISO11784/11785, FDX-B/HDX) | |||
| option 2 | LF RFID(125KHz) | ||||
| option 3 | HF RFID(13.56MHz ISO 1443A/B ISO 15693) | ||||
| option 4 | NFC(include 13.56MHz ISO 1443A/B ) | ||||
| option 5 | UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with AS3992 shipset | ||||
| option 6 | UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with impijnR2000 shipset, Long distance reader. | ||||
RFID Reader Module Specifications |
|||||
| UHF RFID antanna1 | Circularly polarized Dielectric Ceramics | ||||
| Antenna model: 40*40*5mm | |||||
| Frequency Range: 922.5MHz±8MHz | |||||
| Gain(Typical): 2dBi Based on65×65mm ground plane | |||||
| Impendence: 50 ohm | |||||
| UHF RFID antanna2 | Circularly polarized Dielectric Ceramics | ||||
| Antenna model: 40*40*5mm | |||||
| Frequency Range: 865MHz-868MHz | |||||
| Gain(Typical): 2dBi Based on65×65mm ground plane | |||||
| Impendence: 50 ohm | |||||
| UHF RFID antanna3 | Circularly polarized Dielectric Ceramics | ||||
| Antenna model: 35*35*5mm | |||||
| Frequency Range: 922.5MHz±8MHz | |||||
| Gain(Typical): 2dBi Based on35×35mm ground plane | |||||
| Impendence: 50 ohm | |||||
4G LT Android Smart Card Reader RFID Terminal with UHF RFID 900mhz Modules
4G TE Android Smart Card Reader RFID Terminal with UHF RFID 900mhz Modules
