Elegant Industrial PDA Handheld RFID Reader UHF and Fingerprint Reader Optional
Elegant Industrial PDA Handheld RFID Reader UHF and Fingerprint Reader Optional
Advantages of K50 Elegant Industrial PDA:
- Android 5.1
- 4G LTE
- 1GB RAM or 2GB RAM Custom Made
- 5.0inch High-definition IPS LCD capacitive touch screen
- IP65 Industrial Class, 1.5M drop protection
- Special Structure and External Cushion Protection Design
- Matched with the machine seat charger
- OEM/ODM Accepted
- Support 1D/2D Barcode Scanning, LF/HF/UHF RFID/fingerprint reading, terminal printer, MSR, PSAM function etc.
- Multiple Functions Optional: card reader, printer, fingerprint, infrared reader, temperature, etc
Elegant Industrial PDA:
| RFID Reader | option 1 | LF RFID(134.2khz, ISO11784/11785, FDX-B/HDX) | |||
| option 2 | LF RFID(125KHz) | ||||
| option 3 | HF RFID(13.56MHz ISO 14443A/B ISO 15693) | ||||
| option 4 | NFC(include 13.56MHz ISO 14443A/B ) | ||||
| option 5 | UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with AS3992 shipset | ||||
| option 6 | UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with R2000 shipset, Long distance reader. | ||||
Fingerprint Reader Module Options: Crossmatch TCS1 (meet the FBI’s FIPS-201)
Paraments of Elegant Industrial PDA:
| Core board | CPU | Quad-core 1.3GHz ARM® Cortex-A53 (LPDDR2 and LPDDR3) |
|||
| WWLAN | FDD B1B3B7 TDD B38B39B40 WCDMA B1B2B5B8 EVDO BC0 GSM B2B3B5B8 |
||||
| Flash ROM | 16 GB | ||||
| RAM | 2 GB DDR3 | ||||
General Configuration of Elegant Industrial PDA:
| Display | 5.0 inch IPS 1280*720 | ||||
| touch screen | Multi-point touch capacitive screen | ||||
| Form Factor | Bar type classical PDA,Industrial appearance | ||||
| GPS | Support GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS | ||||
| DGPS (please check options) | |||||
| Bluetooth | v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE) | ||||
| dual-band WiFi | 2.4 and 5GHz 802.11 a/b/g/n | ||||
| External Interface | USB HOST/RS232(Customized) | ||||
| Protection class | IP65 | ||||
| Drop resistance level | 1.5m | ||||
| Sensor | G-sensor | YES | |||
| Keypad | Front | 4 | |||
| Side | 4 | ||||
Interface of Elegant Industrial PDA:
| Interface | Mini-USB connector | USB2.0 connection | |||
| SIM card slot | *2 | ||||
| TF card slot | Yes | ||||
| power jack | Yes | ||||
| Audio Jack | Yes | ||||
Battery of Elegant Industrial PDA:
| Battery | Type | rechargeable Li-ion battery 2600mAh 19.24WH | |||
| Standby Time | 500hours | ||||
| Calls Time | Up to 6hours | ||||
| Charging Time | 4 hours | ||||
Physical Characteristics of Elegant Industrial PDA:
| Physical Characteristics | Dimension | 175*76*27mm | |||
| Weight | >400g with battery (according config) | ||||

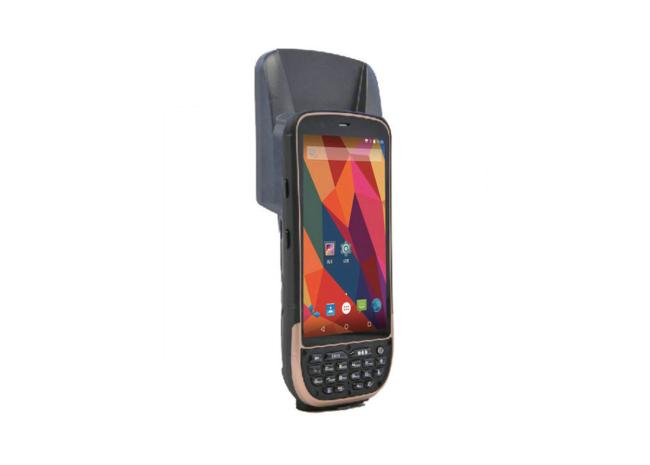

Elegant Industrial PDA with UHF Reader:

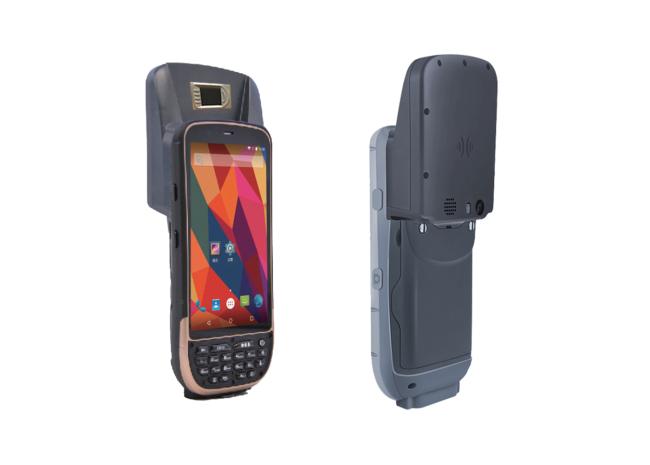

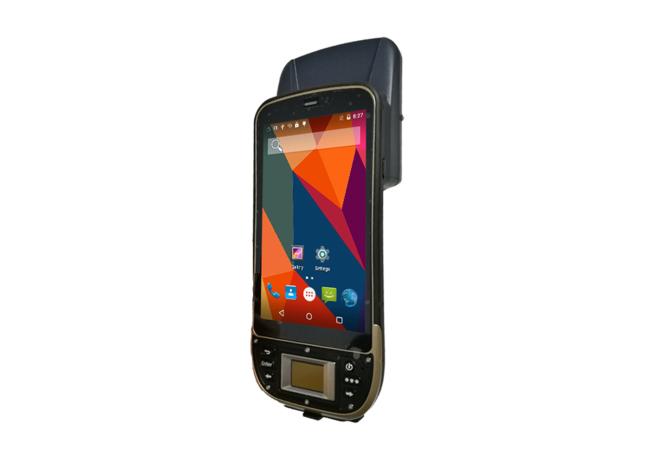

Elegant Industrial PDA with UHF Reader and Fingerprint Reader:
Beijing Speedata Technology Co., Ltd (Stock Code:832442)
|
Speedatagroup is an OEM/ODM manufacturer of IoT (Internet of Things) Devices and a Provider of Handheld PDA terminal in hardware and software solution, focusing PDA on 1D/2D Barcode scanner, Fingerprint reader, Portable Printer, UHF RFID reader, 433M, MSR, ZigBee, PSAM, and IC card reader, MRZ, IRIS Scanner...
For the past years, Speedata has been rapidly growing as a high-tech enterprise of R&D, production and sales, and furthermore, having extensive application experiences in the IOT field. The head office is located in Beijing, with branch offices in Shanghai, Shenzhen and Dalian, as well as India. |
Speedata Services
| As a listed company from china manufacturer, we support you: Completely Free SDK and technical support for you. ODM/OEM customization services according to your needs. 13 months warranty for your devices and other parts. and 6 months for the batteries. Exend warranty,it'll cost 0.5% for each per year. Free maintenance of the devices and part of accessories replacement in the warranty .if out of the warranty, you'll have to pay the basic cost for them. |
