Mobile Handheld UHF RFID Reader , Computer Rugged Portable Rfid Reader Phone 1M Range
Mobile Handheld UHF RFID Reader , Computer Rugged Portable Rfid Reader Phone 1M Range
Advantages of RFID Reader UHF 1M Range:
- Android 5.1
- 4G LTE
- 1GB RAM or 2GB RAM Custom Made
- 5.0inch High-definition IPS LCD capacitive touch screen
- IP65 Industrial Class, 1.5M drop protection
- Special Structure and External Cushion Protection Design
- Matched with the machine seat charger
- OEM/ODM Accepted
- Support 1D/2D Barcode Scanning, LF/HF/UHF RFID/fingerprint reading, terminal printer, MSR, PSAM function etc.
- Multiple Functions Optional: card reader, printer, fingerprint, infrared reader, temperature, etc
RFID Reader UHF 1M Range:
| RFID Reader | option 1 | LF RFID(134.2khz, ISO11784/11785, FDX-B/HDX) | |||
| option 2 | LF RFID(125KHz) | ||||
| option 3 | HF RFID(13.56MHz ISO 14443A/B ISO 15693) | ||||
| option 4 | NFC(include 13.56MHz ISO 14443A/B ) | ||||
| option 5 | UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000- 6A,B compatibility in direct mode----with R2000 shipset, Long distance reader. | ||||
Barcode Scanner: laser barcode reader 1D/2D Optional
| Barcode scanner | option 1 | NEWLAND:EM1300(1D barcode reader) | |||
| option 2 | NEWLAND:EM3095(1D/2D barcode reader) | ||||
| option 3 | Symbol:SE955(1D laser barcode reader) | ||||
| option 4 | HoneyWell:N4313 (1D laser barcode reader) | ||||
| option 5 | Symbol: SE4500(1D&2D barcode reader) | ||||
Paraments of RFID Reader UHF 1M Range:
|
OS |
Android 5.1 | |
| Core | CPU | Quad-core 1.3GHz ARM® Cortex-A53 |
| WWLAN | FDD B1B3B7 TDD B38B39B40 WCDMA B1B2B5B8 EVDO BC0 GSM B2B3B5B8 |
|
| Flash ROM | 16GB | |
| RAM | 2GB DDR3 | |
General Configuration of RFID Reader UHF 1M Range:
| Display | Main Screen | 5.0 inch IPS 1280*720 |
| Touch screen | Multi-point touch capacitive screen | |
| GPS |
Support GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS |
|
| Bluetooth | v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE) | |
| WiFi | 802.11 a/b/g/n | |
| Protection class | IP65 | |
| Drop resistance level | 1.5m | |
| Camera (OPTION) | Rear camera | 8MP Camera |
| Keypad | Front /Side | 4/4 |
| Interface | Micro-USB connector | USB2.0 Connection |
| SIM card slot | *2 | |
| TF card slot | Yes | |
| power jack | Micro-USB | |
| Audio Jack | Yes | |
| Battery | Type | 2600mAh 19.24WH |
| Standby Time | 500hours | |
| Calls Time | Up to 6 hours | |
| Charging Time | 4 hours (USB charging) | |
| Physical Characteristics | Dimension | 175*76*27mm |
| Weight |
>400g with battery (according config) |
|

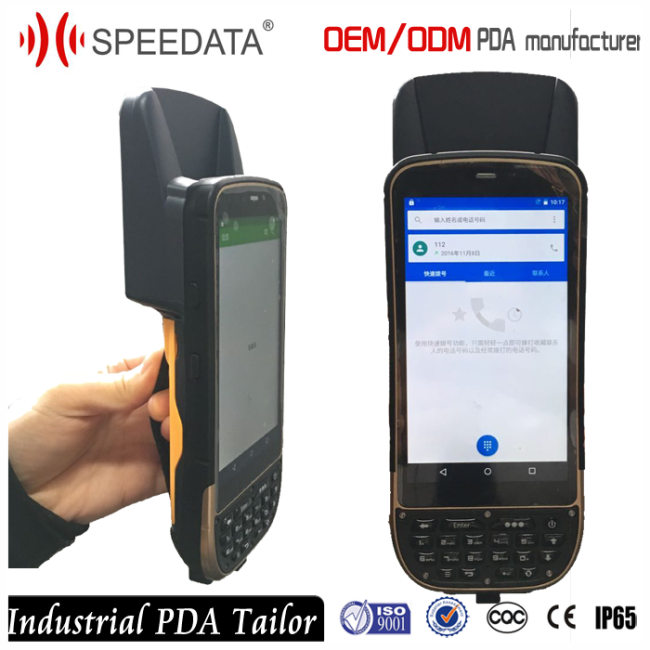

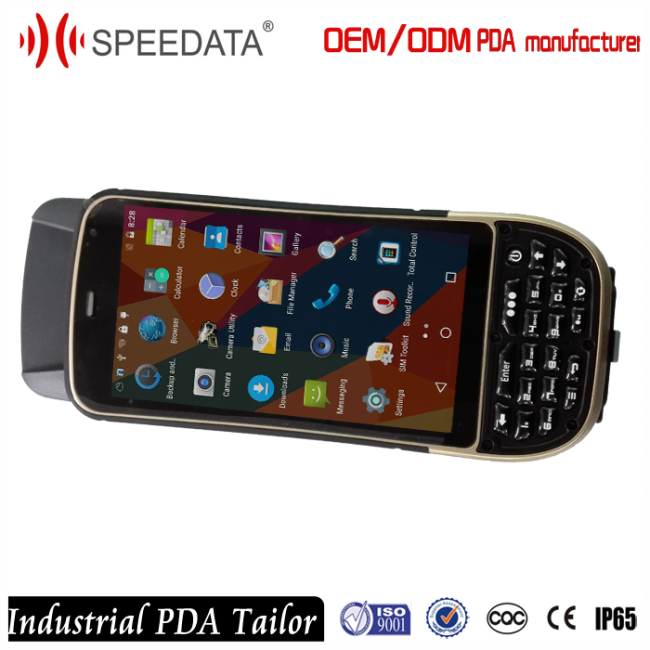

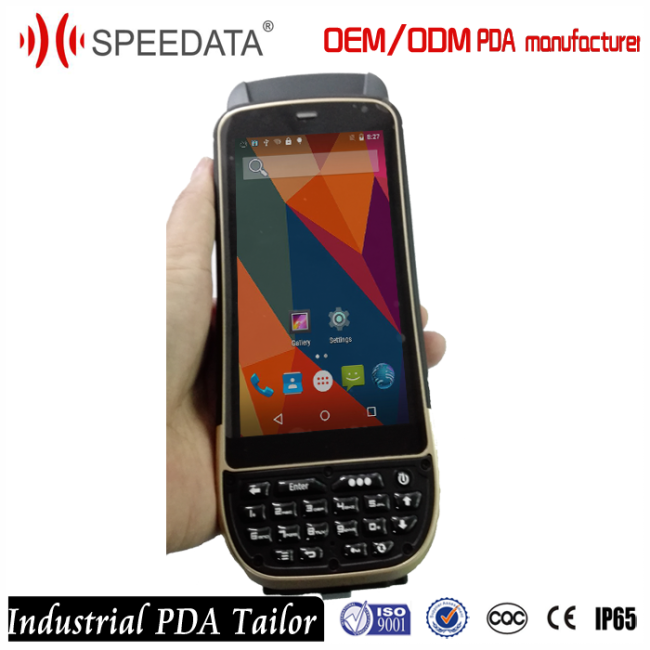

Photo for RFID Reader UHF 1M Range:
Beijing Speedata Technology Co., Ltd (Stock Code:832442)
|
Speedatagroup is an OEM/ODM manufacturer of IoT (Internet of Things) Devices and a Provider of Handheld PDA terminal in hardware and software solution, focusing PDA on 1D/2D Barcode scanner, Fingerprint reader, Portable Printer, UHF RFID reader, 433M, MSR, ZigBee, PSAM, and IC card reader, MRZ, IRIS Scanner...
For the past years, Speedata has been rapidly growing as a high-tech enterprise of R&D, production and sales, and furthermore, having extensive application experiences in the IOT field. The head office is located in Beijing, with branch offices in Shanghai, Shenzhen and Dalian, as well as India. |
FAQ:
Question 1: what's your MOQ?
Answer: the MOQ of speedata barcode scanner handheld PDA is 1 unit.
Question 2: how long is the delivery time?
Answer: The delivery time of barcode scanner goods is different from quantities:
If 1~100 pcs, It's about 5--10 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.
Question 3: Would you like to supply 1 sample for testing?
Answer: Yes, Of course. We can provide 1 sample Terminal PDA for your testing.
Question 4: What's the total price for 1 sample?
Answer: As a manufacturer of barcode scanner terminal PDA.the more you buy,the cheaper it'll be.
the sample price is a little bit higher than the common wholesale price.excluding the freight fee.
Question 5: Are you a manufacturer of Handheld PDA?
| Answer: Yes, we are a chinese listed company of R&D and producing industrial PDA Terminal hardware and software solutions with over 8 years' OEM/ODM experience. and also we cooperate with Foxconn. |
Question 6: what kind of services do you support?
Answer:
1.We provide you Free SDK and technical support for your barcode scanner.
2.we also provide ODM/OEM customization services according to your needs.
3.We support 13 months Warranty for your devices and other parts. and 6 months for the batteries.
Question 7: what's for payment term and delivery term ?
Answer:
1.It's generally 30%-100% TT in advance for all orders for the payment term.
with supporting via bank card, Paypal or West Union.
2. FOB Shenzhen for Delivery term.
Question 8: who are your customers?
Answer:
1.That's quiet a serious question, but our products are sold worldwide in South/North America, Europe, Asia, Africa Mid-east, etc.
2.The market share is increasing quickly every year and we get great feedback from our customers.
