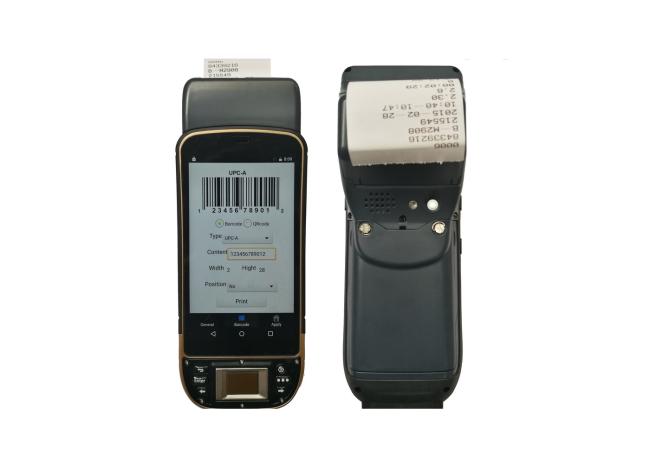

Hand Held Android RFID PDA Thermal Printer 58mm Thermal Receipt Printer
Price:
Negotiable
MOQ:
1pc
Delivery Time:
5-8 working days
Brand:
SPEEDATA
Product Description
Cheap Hand Held Android RFID 58mm Thermal Receipt Printer PDA Embedded Portable Handheld
Key features :
1. Industrial-grade mobile handheld device
2. IP65 industrial standard waterproof,dustproof,drop resistance
3. 5.0 inch IPS, outdoor sunlight visible
The Specification of Printer PDA with RFID
|
|
||
| OS | Android 5.1 | |
|
Hardware
|
||
| Core board | CPU | Quad-core 1.3Ghz ARM® Cortex-A53 (LPDDR2 and LPDDR3) |
| WWLAN | FDD B1B3B7 TDD B38B39B40 WCDMA B1B2B5B8 EVDO BC0 GSM B2B3B5B8 |
|
| Flash ROM | 16GB | |
| RAM | 2GB DDR3 | |
| Extensive Memory Slot | 128 GB | |
|
Motherboard
|
||
| Display @ | 5.0inch IPS 1280*720 | |
| touch screen | Multi-point touch capacitive screen | |
| Form Factor | Bar type classical PDA,Industrial appearance | |
| GPS | Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS | |
| DGPS (please check options) | ||
| Bluetooth | v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE) | |
| dual-band WiFi | 2.4 and 5Ghz 802.11 a/b/g/n | |
| External Interface | USB HOST/RS232(Customized) | |
| Protection class | IP65 | |
| Drop resistance level | 1.5m | |
| Camera Function (Option) | Camera | 8MP Camera |
| Video | Support still image and video capture | |
| Sensor | G-sensor | YES |
| Keypad | Front | 4 |
| Side | 4 | |
| Interface | Mini-USB connector | USB2.0 connection |
| SIM card slot | *2 | |
| TF card slot | Yes | |
| power jack | Yes | |
| Audio Jack | Yes | |
| Battery | Type | rechargeable Li-ion battery 2600mAh, 7.4V , Capacity19.24Wh, equal to 3.7V *5200mAh |
| Standby Time | 500hours | |
| Calls Time | Up to 6hours | |
| Charging Time | 4 hours | |
| Physical Characteristics | Dimension | 175*76*27mm |
| Weight | >400g with battery (according config) | |
| OPTIONS | ||
| DGPS | ublox LEA-6T (with RTK) | |
| MSR(Optional) | Compatible with one, two, three track. (without PCI, EMV security certification.) | |
| PSAM(Optional) | ISO7816 (SIM card interfance) | |
| IC card reader(Optional) | ISO7816 ID-1 | |
| Fingerprint reader | option 1 | UPEK TCS1G (meet the FBI’s FIPS-201) |
| option 2 | UPEK TCS2SS | |
| Printer (Yes) | 2 inch Direct thermal line printing | |
| Far Infrared Meter Reading (Optional) | IEC62056-21(IEC1107) communication protocol | |
| 433Mhz module | Require customers to provide 433Mhz wireless modules or specifications. | |
| Require customers to provide 433Mhz wireless modules or specifications. | ||
| RFID Reader | option 1 | LF RFID(134.2khz, ISO11784/11785, FDX-B/HDX) |
| option 2 | LF RFID(125KHz) | |
| Yes | HF RFID(13.56MHz ISO 1443A/B ISO 15693) | |
| option 4 | NFC(include 13.56MHz ISO 1443A/B ) | |
| none | UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with AS3992 shipset | |
| option 5 | UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with R2000 shipset, Long distance reader. | |
| Barcode Scanner | option 1 | NEWLAND:EM1300(1D barcode reader) |
| option 2 | NEWLAND:EM3095(1D/2D barcode reader) | |
| option 3 | Symbol:SE955(1D laser barcode reader) | |
| option 4 | HoneyWell:N4313 (1D laser barcode reader) | |
| option 5 | Honeywell N6603 | |
Application Industry
| Logistics & Express | Animal tracking & research | Electric meter readings |
| Storage & Distribution | Petrochemical inspection | Geomatics & Surveying |
| Health & pharmaceutical industry | Mobile police service | Tobacco Logistics |
| Surveying and mapping | Agriculture | Water conservation |
| Network community management | Product tracking | Fixed-assets management |
Service
Quality and reputation first are the sole purpose of our company.We speak highly of offering good after services to our customer, and assure that we will do the bestto meet with the requirements of our clients.
- SDK provided :
- Technical support by professional engineer ;
- Maintain repair ;
- 13months warranty ;
- After-sales service.
