Multifunctional Biometric Rugged Tablets PC HF UHF RFID Reader High Capacity 9000mAh
High Capacity 9000mAh Multifunctional Biometric Device Tablet PC HF UHF RFID Reader
Products Introduction

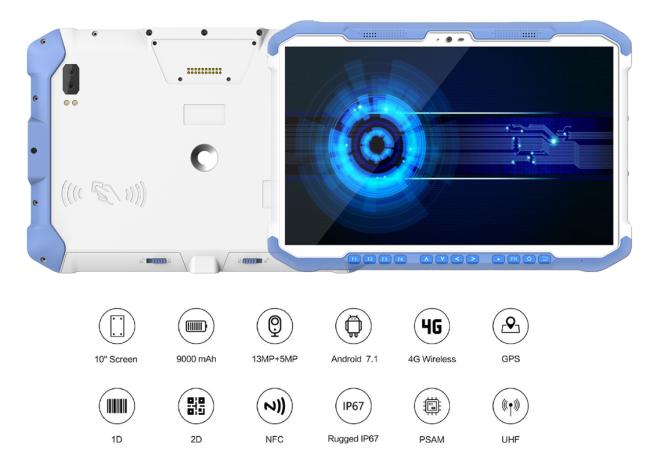

SD100 is 10 inch Android Rugged Tablet PC, with 10 inch WUXGa Super Large Screen with 1200*1920 HD Resolution. Android 7.1 Mainstream OS and Octa-Core 1.8G Processor, it has High Performance without getting Stuck.
Prducts Features:
|
1. 10 Inch WUXGA Touch Screen with 1200*1920 HD Resolution, it brings Ultimate Visual Experience. 2. Circular Angle Design, Blue and White Combined Colors, Ultra-Slim Body, it has 12 Physical Keypads and Touch Screen Buttons. 3. 9000mAh Large Capacity Rechargeable and removable Li-ion Battery makes is continuous working for 10 hours. Support Quick Charging, Seat Charging and Magnetic AdsorptionCharging Model. 4. SD100 can integrate TCS1G Capacitive Fingerprint Scanner. It support 1D/2D Barcode Scanner and Multiple Function like NFC/GPS/Fingerprint/Geomagnetic/Acceleration/ Light Sense Distance/ Pneumatic/ Gyroscope |
Specifications
| SD100 Basic Parameters | |
| OS | Android 7.0 |
| CPU | Octa-Core 1.8G Qualcomm Dragon625 |
| RAM | 2GB |
| ROM | 16GB |
| Storage Extension | Micro SD/TF card slot Extension max128GB |
| Camera | Rear 13MP autofocus and flash light,Front Camera 5MP |
| Audio | Built-in speaker, Dual Silicon Mic Noise Reduction |
| Keypad | 12 keypads |
| Dimentions | 160mm*80mm*15.8mm(Pistol Grip Length 110mm) |
| Notification | Sound/vibration/LED prompt |
| Dimentions | 254*176*17.4 |
| Weight( with battery) | 800g |
| Display | |
| Display | 10 Inch IPS |
| Resolution | 1200*1920 WUXGA |
| Touch Panel | 5-point Capacitive Touch Screen |
| Power | |
| Battery | Large-capacity Li-ion Battery 9000mAh,Typical working hours > 10 hours |
| Charging | QC2.0 fast charging,support charger |
| Interface | USB-TypeC,External extension interface Pogo(USB,serial port,IIC,charging etc),3.5mmheadphone jack,charger interface Pogo |
| Communication | |
| Bluetooth | BT4.0 BLE |
| WLAN | WiFi 802.11 a/b/g/n 2.4G 5G |
| WWAN | FDD-LTE B1/B3/B5/B7 or B1/B4/B8/B13 TDD-LTE B38/B39//B40/B41 TDSCDMA B34/B39 WCDMA B1/B2/B5/B8 GSM B2/B3/B5/B8 CDMA1x/CDMA2000 BC0 |
| GPS | GPS,GLONASS,BeiDou,AGPS,option UBLOX8030 |
| Performance | |
| Operation Temperature | -20℃ ~60℃ |
| Storage Temperature | -30℃ ~+80℃ |
| Humidity | 5%~95%(No condensation) |
| Sealing | IP67 |
| Drop Test |
In the operating range, 6 sides can withstand the impact of 1.5 meters |
| Tumble Test | 6 contact surfaces rolling for 1000 times/ 0.5M |
| ESD | ±15kV Air Discharge, ±8kV Contact Discharge |
| Certificate | CCC,CTA |
| Extensibility | |
| RFID (HF) | NFC: PN548, it can update the firmware and simulate the card |
| RFID (UHF) | Philisense R2000 UHF module 40mmX40mm ceramic antenna |
| Barcode Scanner |
N6603(1D/2D):AZTEC,CODABAR,CODE11,CODE128,EAN128,CODE39,CODE49,CODE93, COMPOSITE,DATAMATRIX,EAN8,EAN13,INT25,MAXICODE,MICROPDF,PDF417,POSTNET, OCR,QR,RSS,UPCA,UPCE,ISBT,BPO,CANPOST,AUSPOST,IATA25,CODABLOCK,JAPOST, PLANET,DUTCHPOST,MSI,TLC39,TRIOPTIC,CODE32,STRT25, |
| PSAM | Support |
| Sensor |
Geomagnetism, Acceleration, Light Perception Distance, Berometer, Gyroscope |
| High Precision GPS Positioning | GPS+BD+GLONASS,reserved 8030 |
Products Details
Speedata Services
As a listed company from china manufacturer, we support you:
Completely Free SDK and technical support for you.
ODM/OEM customization services according to your needs.
13 months warranty for your devices and other parts. and 6 months for the batteries. Exend warranty,it'll cost 0.5% for each per year.
Free maintenance of the devices and part of accessories replacement in the warranty .if out of the warranty, you'll have to pay the basic cost for them.
FAQ
Question 1: What's your MOQ?
The MOQ of barcode scanner handheld PDA is 1 piece.
Question 2: How long is the delivery time?
The delivery time of barcode scanner goods is different from quantities:
If 1~100 pcs, It's about 5--10 working days;
If 100~500 pcs, it's about 10--20 working days;
If More than 500 pcs, It's about 20-30 working days.
Question 3: Would you like to supply 1 sample for testing?
Yes, Of course. We can provide 1 sample Terminal PDA for your testing.
Question 4: What's the total price for 1 sample?
As a manufacturer of barcode scanner terminal PDA,the more you buy, the cheaper it'll be.
The sample price is a little bit higher than the common wholesale price excluding the freight fee.
Question 5: Are you a manufacturer of Handheld PDA?
Yes, we are a R&D orientation China Listed Company, mainly producing industrial PDA Terminal Hardware and as a software solutions supplier with over 8 years' OEM/ODM experience. We are also cooperating with Foxconn Factory.
Question 6: What kind of services do you support ?
We provide you Free SDK and Technical Support for your Barcode Scanner.
We also provide ODM/OEM Customization Services based to your demands.
We support 13 months Warranty for all the device and 6 months for the batteries. Exend warranty, it costs 10% at the first year, and 15% for the second year.
Question 7: What's for payment term and delivery term ?
It's generally 30%-100% TT in advance for all orders. Meanwhile, Paypal or West Union is acceptable.
FOB Shenzhen as Trade Term.
Question 8: Who are your customers?
Our products have been sold to worldwide,especially market in South/North America, Europe, Asia, Africa Mid-east, etc.
The market share is increasing quickly every year and we get more and more positive feedbacks from our customers.
