300 ℃ Maximum Temperature Hot Air Sterilized Industrial Oven For Medical Industry
300 ℃ Maximum Temperature Hot Air Sterilized Industrial Oven For Medical Industry
Brief introduction:
The device uses physical method to achieve disinfection and sterilization. It takes advantage of
high-temperature and hot air to cause intoxication on microbial oxidation, protein denaturation, and electrolyte concentration. By disinfection principle, it destroys protoplasmic cell to kill all the
microorganisms in a certain period of heating time.
Specifications:
|
Model |
Power |
Uniformity
|
Inner size(mm)D*W*H |
Outside Size (mm) D*W*H |
Rate of Work |
|
WXY881-1 |
220v |
±1℃ |
D300*W400*H500 |
D500×W850×H1000 |
3.2kw |
|
3 pieces of shelves |
|||||
Temperature Range:
|
Maximum Temperature: |
300 ℃ |
|
Commonly Used Temperature: |
RT+20~240 ℃ |
|
thermal insulation properties: |
Outside is lower than 45℃ when the inner temperature reach to 240℃(RT +25℃) |
|
Test Point: |
80mm away from liner and the door |
|
Test time: |
16 mins after it reaches the set temperature |
|
Noise: |
≤75db; No load condition |
Characteristic:
1. It has XMT7512 Temperature control device, LED display, automatic calculate, ±2%FS
2. It has PT100 platinum resistance temperature sensor, with the ±0.5% accuracy
3. With 0.01s-9999(adjustable when the temperature is set)
4. With the automatically circuit connect and it always wind first, then the heat started.
5. It has over temperature protection, motor overload protection,ground protection,residual
current operated circuit-breaker
6. It has end of constant temperature alarm, over temperature alarm, and motor overload alarm
Working Condition:
1. Environment Condition:temperature 5~40℃;humidity ≤85%R.H
2. Air Pressure:86~106Kpa
3. Have to left 500mm around the product for installation and maintenance purpose

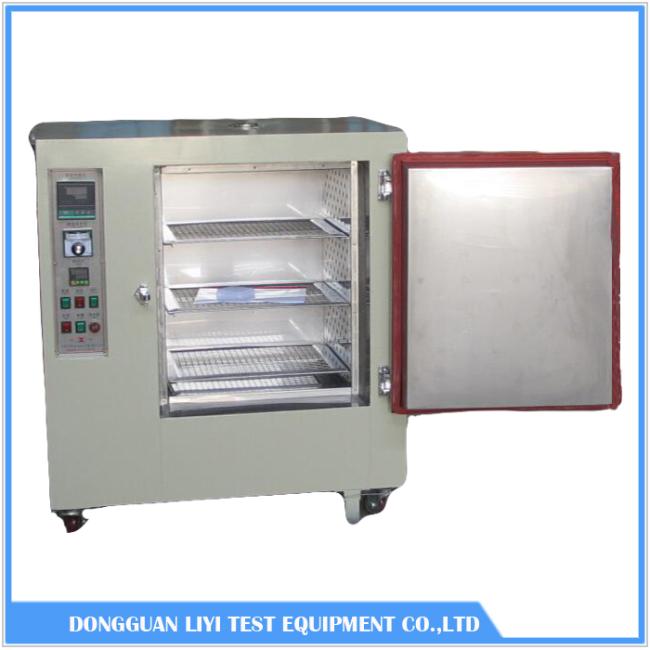

Photo Reference
