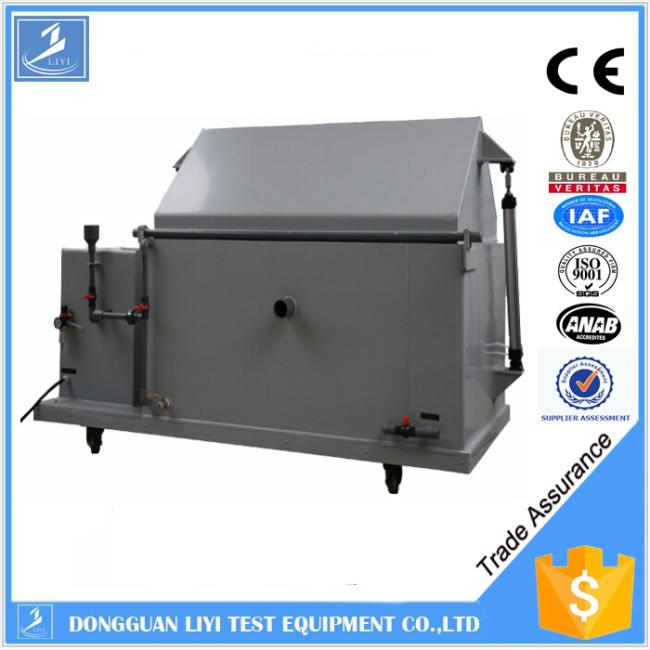

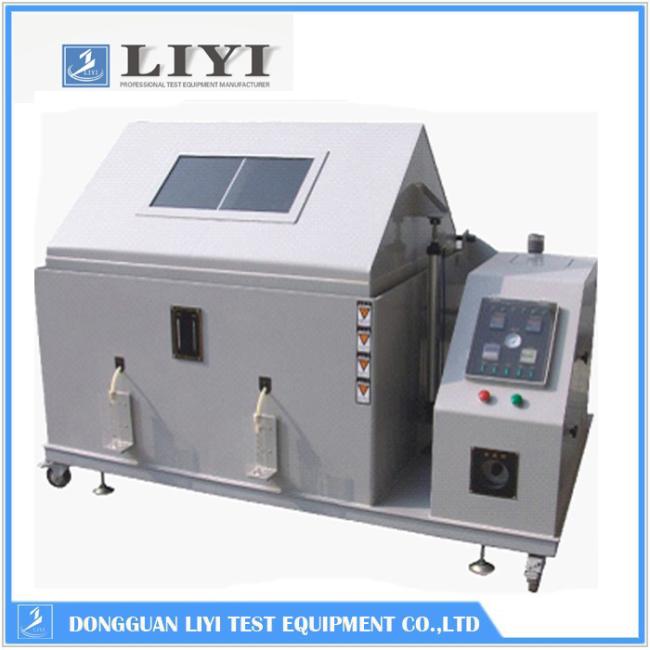

108L Durable Salt Spray Chamber For Corrosion Testing Hard PVC Construction
Durable Salt Spray Corrosion Testing Machine With Hard PVC Construction/Anti-corrosion
Product introduction:
Hard PVC Construction Salt Spray Corrosion Testing Machines adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.
Design standard:
CNS:3627,3385,4159,7669,8886JIS:D0201,H8502,H8610,K5400,Z2371;
ISO: 3768,3769,3770;
ASTM: 8117,B268.
Specifications:
|
Model |
LY-609-60 |
LY-609-90 |
LY-609-120 |
LY-609-200 |
|
Design Standards |
GB/T 10587-2006,GB/T 10125-1997,JIS-D0201,H8502,H8610,K5400,Z2371 |
|||
|
Test chamber capacity (L) |
108L |
270L |
600L |
1440L |
|
Temperature |
Test chamber |
NSS.ACSS 35°C±1 C/CASS 50°C±1°C |
||
|
Air cylinder |
NSS.ACSS 47°C±1° C/CASS 63°C±1°C |
|||
|
Test chamber size LxWxD(cm) |
60*45*40 |
90*60*50 |
120*100*50
|
200*120*60 |
|
Max volum of test liquid (L) |
15 |
25 |
40 |
40 |
|
Volume LxWxD(cm) |
107*60*118 |
141*88*128 |
190*130*140 |
270*1 50*150 |
|
Power |
AC220V,10A |
AC220V,15A |
AC220V,30A |
AC220V, 30A |
|
Spray quantity |
1.0~2.0ml/80cm2/h |
|||
|
PH |
6.5~7.2 3.0~3.2 |
|||
