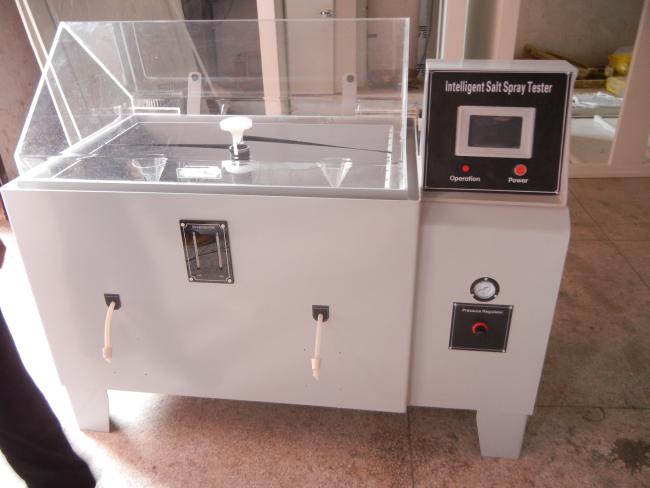

Neutral Salt Spray Chamber , PVC Coating Corrosion Testing Equipment
Neutral Salt Spray Corrosion Test Chamber,PVC Coating Corrosion Testing Equipment
Fog Cyclic Corrosion Testing Machine
Coating Corrosion Testing Chamber adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.
Fog Cyclic Corrosion Testing Machine
1. 1 years experience
2. The Third party certificate
3. Fast delivery
Design standard:
CNS:3627,3385,4159,7669,8886JIS:D0201,H8502,H8610,K5400,Z2371;
ISO: 3768,3769,3770;
ASTM: 8117,B268.
Available test methods
1) Neutral salt spray test (NSS test)
2) Salt spray test (SS test)
3) Acetic acid salt spray test (ASS test)
4) Copper accelerated instinct test
6) High-temperature humid heat test
Specifications:
|
Model |
LY-609-60 |
LY-609-90 |
LY-609-120 |
LY-609-200 |
|
Design Standards |
GB/T 10587-2006,GB/T 10125-1997,JIS-D0201,H8502,H8610,K5400,Z2371 |
|||
|
Test chamber capacity (L) |
108L |
270L |
600L |
1440L |
|
Temperature |
Test chamber |
NSS.ACSS 35°C±1 C/CASS 50°C±1°C |
||
|
Air cylinder |
NSS.ACSS 47°C±1° C/CASS 63°C±1°C |
|||
|
Test chamber size LxWxD(cm) |
60*45*40 |
90*60*50 |
120*100*50
|
200*120*60 |
|
Max volum of test liquid (L) |
15 |
25 |
40 |
40 |
|
Volume LxWxD(cm) |
107*60*118 |
141*88*128 |
190*130*140 |
270*1 50*150 |
|
Power |
AC220V,10A |
AC220V,15A |
AC220V,30A |
AC220V, 30A |
|
Spray quantity |
1.0~2.0ml/80cm2/h |
|||
|
PH |
6.5~7.2 3.0~3.2 |
|||
