Stainless Steel Environmental Constant Temperature and Humidity Test Chamber
Stainless Steel Environmental Constant Temperature and Humidity Test Chamber
This Machine can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
Related Standards for Constant temperature and humidity oven testing meter: IEC60068 2-1/2/3/30, GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566
Characteristics
1.Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2.control temperature&humidity well-distributed, precisely and steady.
3.Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.
| Model | LY-280 | LY-2150 | LY-2225 | LY-2408 | LY-2800 | LY-21000 | |
| Inner Size W×H×D(cm) | 40×50×40 | 50×60×50 | 50×75×60 | 60×85×80 | 100×100×80 | 100×100×100 | |
| External Size W×H×D(cm) | 93×155×95 | 100×148×106 | 117×166×118 | 122×176×121 | 158×186×148 | 158×195×168 | |
| Volume(L) | 80 L | 150L | 225L | 408L | 800L | 1000L | |

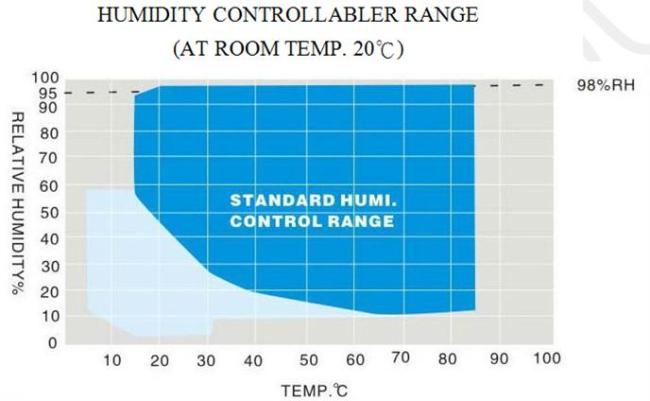

| Temp&Humi Control Range |
Temp. Range: A: -20°C~150°C Humi.range: RH20%-98% B: -40°C~150°C C: -60°C~150°C D: -70°C~150°C (Other temperature and humidity range can be customized) |
||||||
| Temp&Humi Fluctuation | ±0.5°C;±2.5%RH | ||||||
| Temp&Hum Departure | ±0.5°C-±2°C;±3%RH(>75%RH); ±5%RH(≤75%RH) | ||||||
| Controller Resolution | ±0.3°C;±2.5%RH | ||||||
| Controller Brand | Korean TEMI880 | ||||||
| Material | Inwall | SUS 304# steel plate | |||||
| Housing | SUS 304# steel plate surface fog processed | ||||||
| Heat Insulator | resistance to high temperature, high chlorine acid b vinegar foam insulation materials | ||||||
| Aie Circulation Way | centrifugal fan-broadband type force air circulation | ||||||
| Refrigeration Way | cascade type multiple refrigeration | ||||||
| Refrigerater | fully enclosed piston compressor Taikang France | ||||||
| Refrigerants | R4O4Aor American dupont environmental protection cold media(R23+R404) | ||||||
| Condensing Way | Air-cooling | ||||||
| Heater | nickel chrome heating wire heater | ||||||
| Humidifier | semi-closed steam | ||||||
| Water Supply Way | automatic cycle water supply | ||||||
| Standard Accessaries |
*50mm test hole on the left............................................................1PCS *PL inner lamp................................................................................1PCS *Adjustable clapboard.....................................................................2PCS *Humidity cloth...............................................................................1Bag *Fuses..............................................................................................3PCS *Power line.......................................................................................1PCS *Software CD....................................................................................1PCS *Operation manual.............................................................................1PCS |
||||||
| Safety Devices |
*Leakage current *Overload *Compressor overload *Over temperature *Ultra-wet/dry *Humidification temperature protection. |
||||||
| Power | 380V or 220V AC±10% 50/60Hz | ||||||
