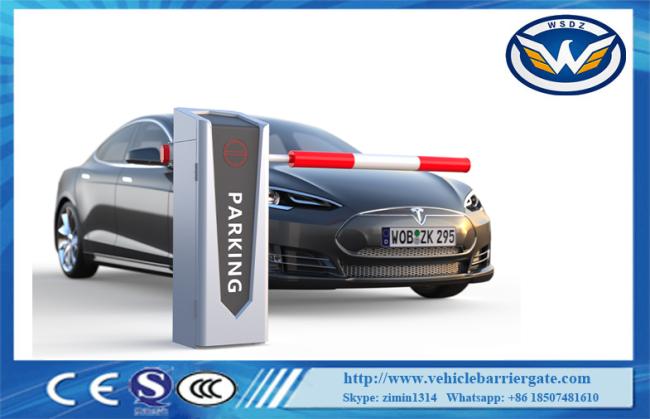

LED DC 24V Servo Motor Toll Barrier Gate 0.6S High Speed With 2.5m Round Arm
OEM 0.6S High Speed LED DC 24V Servo Motor Toll Barrier Gate With 2.5m Round Arm
Functions and Features
1. Open and close speed adjustable(0.6s to 6s, 0.9s to 6s)
2. Arm direction Left and Right can change easily
3. When power off, manual open and close arm, and lock itself.
4. Wireless remote
5. Photocell I0 port output
6. Loop detector anti-collision I0 output
7. Open and close control input
8. 12V traffic light output
Toll Barrier Gate Technical Parameter
| working temperature | -50℃~+85℃ |
| power supply | 24VDC, 100/240VAC, 50/60Hz |
| Open/close speed | 0.6sec to 8sec (adjustable), 0.9s to 8sec |
| Rated power | 200W |
| Driving method | Servo motor |
| Humidity |
≤90% |
Spring installation,disassemble and replacement
Disassemble step as below: put arm on vertical position
1. Unscrew the M8*140MM screw with a hexagonal spanner
2. Calibrate gate arm position
To calibrate the position of the barrier arm (for example, after applying excessive force), follow the steps below:
1. Open the door of the barrier box and remove the cover.
2. Loosen the two fastening screws of DZ-1 on the pendulum shaft with an M12 Allen key, so that the barrier arm
can be repositioned by hand.
3. Calibrate the position of the barrier arm (horizontal position, as shown in Figure 1).
4. Retighten the two fastening screws with a hex wrench
Electrical installation and wiring diagram
1. The internal wiring of the machine has been completed when it leaves the factory, please do not change it,
just connect the 220V power supply and the protective ground wire to work.
2. Traffic light interface: 2A12V voltage traffic light use.
3. Infrared anti-smashing interface: external infrared anti-radiation device, just connect the switch signal of the
anti-radiation output.
4. Ground sense interface: support external ground sense. When using an external ground sensor, you only
need to connect the switch signal output by the ground sensor.
Servo barrier function setting parameter table
| MENU NO. | Parameter scale | Parameter name | Default | Unit | Remark |
| H00-00 | 10-100 | Maximum speed of open arm | 25 | Percentage; the default maximum speed of the motor is 2000RPM | |
| H00-01 | 10-100 | Maximum speed of close arm | 25 | Percentage; the default maximum speed of the motor is 2000RPM | |
| H00-02 | 5-40 | Minimum speed of close arm | 5 | Percentage; the default maximum speed of the motor is 2000RPM | |
| H00-03 | 5-40 | Minimum speed of close arm | 5 | Percentage; the default maximum speed of the motor is 2000RPM | |
| H00-04 | 50-420 | Close arm deceleration angle | 20.0 | The smaller the parameter, the faster the speed; 50 means 5.0 degrees | |
| H00-05 | 50-420 | Close arm deceleration angle | 35.0 | The smaller the parameter, the faster the speed; 50 means 5.0 degrees |
FAQ
1- How to place order?
Please contact Keira to negotiate.
2-How about the guarantee and after sale service?
We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.
3-How long is the leading time of traffic barrier gate?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.
4-How about the payment terms?
TT,western union,our company already joined the trade assurance,it will highly protect your order security.
