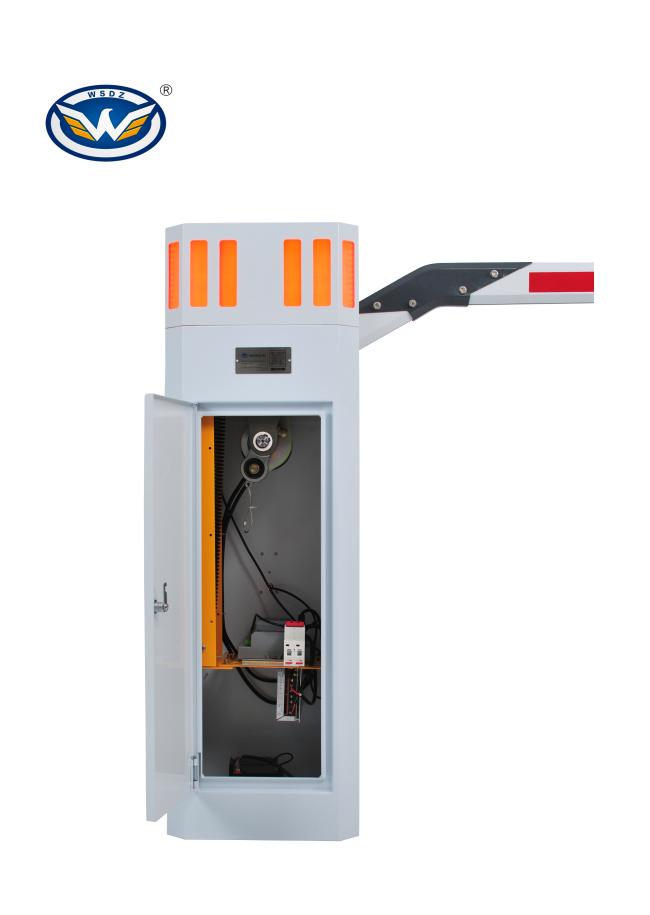

LED Automatic Boom Barrier Gate Fast Speed 1.5S Traffic School Shopping Mall
LED Automatic Boom Barrier Gate Fast Speed 1.5S Traffic School Shopping Mall
Work with WONSUN
1.Technology servicing is supplied
2. Lifetiom charged servicing is offered.
3. One year's free servicing is supplied( not including the arm)
The following situations are charged for servicing (or changing):
1. Overdue
2. The surfaces of the system destroyed by wrong installation our use.
3. Broken by wrong installation.
4. Broken by natural disaster.
5. Broken by improper voltae.
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining authority of this product instruction and service article belong to the production factory.
Specifications
|
Model |
DZ-912 |
|
Working Temperature |
-35℃～+65℃ |
|
Voltage |
24/100/240VAC, 50/60Hz |
|
Rated power |
200W |
|
Relative humidity |
≤90% |
|
Remote control distance |
≥30m, ≤100m(open, sunny weather) |
|
Speed |
1.5s-6s |
|
Max boom length |
6 meters |
|
Protection Degree |
IP44 |
Function
1. Open and close speed adjustable
2. When power off, manual open and close arm, and lock itself
3. Wireless remote
4. Counting(fleet)
5. Open and close control input
6. 24V battery input port
7. Automatic arm lift function when power off
Communication with customers
1) Q: Connected power and press open/close button but traffic barrier gate no action?
|
A |
Reason |
Solution |
|
1 |
Fuse blown |
Check fuse and power in controller |
|
2 |
Battery of remote control powered off |
Change a new one |
|
3 |
External protection circuit break or at protecting status |
Open the barrier door and click OPEN/CLOSE button on control box |
|
4 |
Same frequency interference |
Check photocell and loop detector |
2) Q:Connected power and press open/close button,traffic barrier gate will move but even when it is at right position, the motor still running and not stop?
|
A |
Reason |
Solution |
|
1 |
Limit switch |
Adjust the horizontal/vertical limit switch to correct position |
|
2 |
Main controller failure |
Change a new one |
3) Q: Motor running but traffic barrier gate arm no action?
|
A |
Reason |
Solution |
|
1 |
Barrier arm at 45° position where is hard to move |
Unlock clutch and manually rotate arm to horizontal or vertical position then try again |
|
2 |
Tension of balancing spring not suitable |
Adjust spring exactly |
|
3 |
Low working voltage |
Check the voltage and power |
