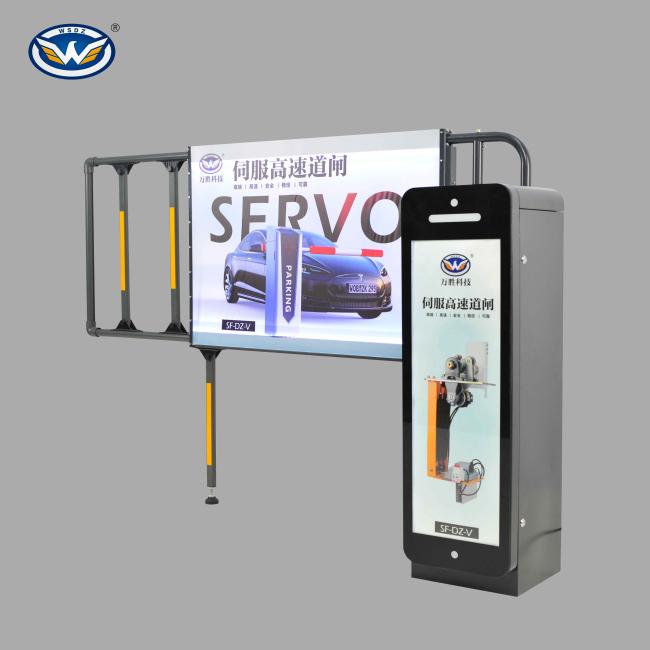

Light Box Advertising Vehicle Barrier Gate 3s For Shopping Mall Community
Light Box Advertising Vehicle Barrier Gate 3s Brushless Shopping Mall Community
Introduction:
The core of the barrier lies in the integration of a DC motor and its intelligent control mechanism, which is specifically developed for this application. This integration represents a significant technological advancement due to its flexible acceleration and deceleration, as well as independently adjustable opening and closing times. These features further optimize the movement, ensuring prolonged service life and maintenance-free intervals. Hall sensors integrated within the motor provide precise positional data of the railing arm at any given moment, enabling the control system to verify optimal acceleration and braking characteristics. By accurately calculating the boom's exact position, potential-free signals are directly fed back at any point, eliminating the need for mechanical limit switches that are susceptible to wear.
Data sheet
| Max boom length | 3-6 meters |
| Opening time |
3sec-8sec
|
|
Housing Material
|
Powder-coated steel/ Aluminum
|
|
MTBF
|
more than 5 million times
|
|
Working temperature
|
-25°C~+60°C
|
| Power | 160W |
|
Protection grade
|
IP44
|
|
Driving unit
|
DC Brushless motor |
Brushless Motor
* No Welding Boom Bracket: Easy disassembly and assembly, nodeformation, greatly improve production efficiengy and easy maintenance
* Patented non-slip design: Anti-skid device design, safe andreliable
* Cast steel accessories: Brand new precision cast steel three-link design, smooth operation, lift inplace, self-locking design when power off
* Four-stage gear transmission: Using special materials, carburizing and quenching heat treatment, the hardness reaches 60 degrees, and the torque reaches 400NM
* Manual rocker: After a power failure,shake it manually to open the gate
* Permanent magnet rare earth brushless torque motor: 200W permanent magnet rare earth motot, 5 million times running without failure test
Advanced Features
* No need to worry about brake design anymore, as our product eliminates the troubles caused by wear and reliability issues of brake pads.
* Can work with DC24V battery, can be combined with solar energy, wind power, suitable places lack of AC power.
* Long time maintenance-free, greatly reducing maintenance costs.
* With no position sensor needed, each stop is equally accurate, making pair usage fully synchronized.
* Free debugging during production and installation greatly reduces maintenance and labor costs.
* The boom automatically rises when power is off, meeting fire safety requirements.
* During the course of the movement without any mechanical impact or shock absorption, the highest reliability, the longest service life.
* Direction exchange is easy.
RFQ
1.Q: First time import, how can i believe that you would send product?
A: We are verified company by Everychina, to make transaction success.
2.Q: What should we do if there have problems during using?
A: We have 2 years guarantee. Any barrier problems you have, Welcome email or call me! We will provide our best professional service for you.
3.Q: How long will your barrier working?
A:barrier life span more than 10 years.
4.Q:How to import your machines?
1. We will prepare barrier and shipment for you after payment;
2. We will give you bill of loading after barrier depart our shipping port;
3. Our shipping agent will contact you when barrier arrival;
4. You can pick up barrier by bill of loading.
