220V/110VAC Motor Vehicle Barier Gate RFID Reader Traffic Barrier Gate With 6m Arm
RS485 Traffic Light Interface 220V/110VAC Motor Vehicle Barier Gate RFID Reader Traffic Barrier Gate With 6m Arm
product description
| Model No. | DZ-132 automatic boom barrier gate |
| Framework Material | Cold-roll sheet |
| Beam | Aluminum alloy |
| Dimension | 352 * 302 * 1120mm |
| Net Weight | 48KG |
| Input Interface | Photo cell, loop detector, parking system,wire control |
| Input | 12V relay signal or Pulse Wide>100MS |
| Power Supply | DC24V |
| Motor Consumption | 85W |
| Working Temperature | -35°C to +85°C |
| Relative Humidity | ≥90% |
| MCBF | 5million time |
| Push Button | Support |
| Remote Control | Two button remote transmitter, Distance≤100m |
| Optional Accessories | Loop detector; IR photo cell |

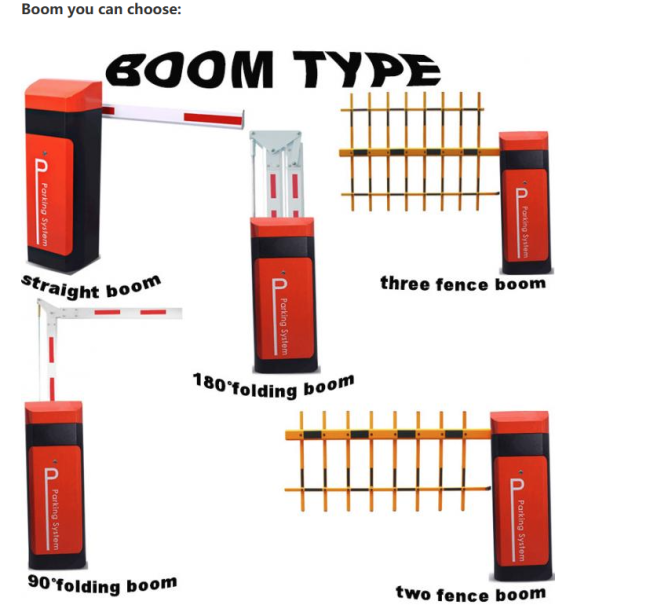

| Beam Length | 1M - 6M |
| Opening/Close Time |
1.5sec-6sec |
Why choose us?
Shenzhen Wonsun Machinery & Electrical Technology Co. Ltd cares about the success of its customers. Wonsun believes in helping coustomers define the best soultion for their particulate application. With our barrier gate expertise, Wonsun can help customer desigh customers in taking the complexity out of barrier gate, pedestrian barrier series and parking system.Because our focus is on Quality with a capital Q.We just won’t settle for less.
Functions and Features:
1 The running speed can be adjusted from 1.5s to 6s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire control(must be switch signal)
10 Connector for traffic light(AC220V,power less than 40W)
11 Offering dry contact signal for car parking system(COM,NC,NO)
12Auto-delay when closing(adjustable)
13 RS485 or CAN network communication interface(no need to install module)
14 Counting interface
15 24V backup battery interface(Can be charged by using solar energy)
1. Our Factory has 8 years OEM/ODM experiences in the line of barrier gate .
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample and test it before bulk order.
5. Online technical support makes it carefree to be our business partner.
6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.
7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
FAQ:
1. When barrier finish closing, why does the arm open itself slowly?
- the spring is too tight, you need release the spring a little, then test it again.
- see whether the main crank touch the triangle tightly or not, if tightly, adjust it.
- reset the balance position and the electrical limit switch.
2. Why does the controller panel operate with "Di Di Di" abnormal noises?
- As for this, it means the resistance on controller board is broken, if you have professional tools to check,
- then replace that broken resistance, if not, replace that controller panel.
3. Why does the barrier finish half operation of opening and closing?
- If uses our controller panel, you only need to find resistance R37 on controller panel, and repalce it is ok.
4. When barrier closed, why is there a 5 degree angle of inclination?
- the model is not good, and the gear doesn't fit each other tightly.
- the barrier didn't adjust well, need to reset.
5. When barrier finish open, but it closes itself without any order control, what's the problem?
- To check the loop cable first, because the loop cable maybe brokem
- To check the motor sensor, if it is not set well, then reset it in the middle between two holes on sensor rod.
6. Why does the arm wave a lot when opening and closing?
- The spring is very tight
- The Screw touches the rubber absorption tightly, need to reset again.
7. Rubber linning installation suggestion:
- It is good use for fast speed, like 0.6s, 1s, 1.8s and 3s.
- The place with many vehicles come and go, like shopping center, carpark area.
8. Can you accept OEM/ODM order?
- Absolutely, we are manufacturer of barrier gate, with 7 years researching and developing experience.
