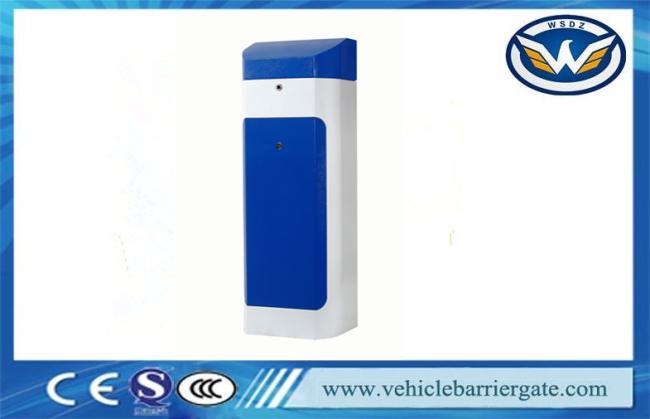

Traffic OEM Color Drop Arm Barrier Steel Sheet Housing Alluminmum Alloy
Traffic Barrier Gate OEM Color Drop Arm Barrier Steel Sheet Housing Aluminum Alloy
Traffic Barrier Gate Application:
Traffic Barrier Gate: Traffic access control for parking lots, toll gates, goods yards, railway crossings, commercial premises, apartment block access, and so on.
Traffic Barrier Gate Technical Data:
| Running time | 1sec | 3 sec | 6sec | 3 sec | 6 sec | 3 sec | 6sec | 6 sec | 6 sec |
| Boom type | straight | 90-degree folding | 180-degree folding | 2 fencing | 3 fencing | ||||
| Max boom length | 3m | 4.5m | 6m | 3m | 5m | 3m | 5m | 4.5m | 4m |
| Boom dimension(w*h) | 40*80mm | 45*100mm | |||||||
| Boom weight | 3kg | 4.5kg | 6kg | 6.5kg | 8kg | 9kg | 11kg | 7kg | 7.5kg |
| Voltage | 220V±10%, 110V±10% | ||||||||
| Frequency | 50/60 Hz | ||||||||
| Motor voltage | 220V | ||||||||
| power | 80W | ||||||||
| Working temperature | -35centigrade +75centigrade | ||||||||
| Protection grade |
IP54 |
||||||||
Traffic Barrier Gate Functions:
1. A clutch key can be used to open the clutch when power is off.
2. Fan cooling machine reduces the motor temperature by high frequency using, never get heat-protecting. Unique temperature calefaction design for low-temperature use, preventing freezing in cold weather.
3. An exactitude aluminum alloy die-casting motor base reduces the noise and joint abrasion to prolong the barrier gate's working life.
4. Thimble-type motor worm design for preventing plugging up in use.
5. Balance spring no noise and easy adjusting design
6. Double limit methods (electronic limit and motor sensor memory limit) for beam rises and falls.
Traffic Barrier Gate Selection of Spring Table:
| Boom Type | Boom Length(M) | Spring Selection | |
| Traffic Barrier Gate Straight boom | 6M≥L＞5M | Φ5.5MM+Φ4.5MM | |
| 5m≥L＞4.5M | Φ5.5MM | ||
| 4.5m≥L | Φ4.5MM | ||
| Straight Boom With Rubber | 6M≥L＞5M | Φ6.5MM+Φ4.5MM | |
| 5m≥L＞4.5M | Φ5.5MM+Φ4.5MM | ||
| 4.5m≥L＞4M | Φ5.5MM | ||
| 4m≥L＞3.5M | Φ4.5MM+Φ4.5MM | ||
| 3.5M＞L | Φ4.5MM | ||
|
Folding boom Traffic Barrier Gate
|
6m≥L＞5M | Φ6.5MM+Φ4.5MM | |
| 5m≥L＞4M | Φ5.5MM+4.5MM | ||
| 3.5＞L | Φ4.5MM+4.5MM | ||
|
Fence Boom Traffic Barrier Gate
|
Two Fence | 5m≥L＞4M | Φ6.5MM+Φ4.5MM |
| 4M＞L | Φ5.5MM+Φ4.5MM | ||
| Three Fence | 4m≥L＞3M | Φ4.5MM+Φ4.5MM | |
| 3M＞L | Φ4.5MM+4.5MM | ||
Traffic Barrier Gate Selection of Spring.
| Spring type | Diameter | Spring Length |
| Small size | 4.5MM | 280MM |
| Medium size | 5.5MM | 280MM |
| Big size | 6.5MM | 280MM |
Traffic Barrier Gate Maintenance
1)Keep the barrier gate clean.
2)Check the joints every month in case of any loose parts.
3)Check the spring elasticity after the barrier gate runs 30,000times
4)Check the easily worn-out parts(like spring, limit switch)every half year and renew them.
5)Remote control distance will be shortened or not work in cases like big object screening, battery run out. extreme weather.
Traffic Barrier Gate
Traffic Barrier Gate Warranty:
1. The Drive Motor is warranted against the manufacturer’s defect for the lifetime
2. Standard warranty for all components is valid for12 months from the date of delivery
3. This warranty does not include damages caused by:
a. Wear and Tear
b. Theft
c. Accidents
d. Act of God & Natural Disaster
e. Unstable power supply (i.e. inconsistent voltage or lightning)
FAQ:
1. When the barrier finishes closing, why does the arm open itself slowly?
- the spring is too tight, you need to release the spring a little, then test it again.
- see whether the main crank touches the triangle tightly or not, if tightly, adjust it.
- reset the balance position and the electrical limit switch.
2. Why does the controller panel operate with "Di Di Di" abnormal noises?
- As for this, it means the resistance on the controller board is broken, if you have professional tools to check,
- then replace that broken resistance, if not, replace that controller panel.
3. Why does the barrier finish half operation of opening and closing?
- If use our controller panel, you only need to find resistance R37 on the controller panel and replace it is ok.
4. When the barrier closed, why is there a 5-degree angle of inclination?
- the model is not good, and the gear doesn't fit each other tightly.
- the barrier didn't adjust well, needs to reset.
5. When the barrier finishes opening, but it closes itself without any order control, what's the problem?
- To check the loop cable first, because the loop cable may have broken
- To check the motor sensor, if it is not set well, then reset it in the middle between two holes on the sensor rod.
6. Why does the arm wave a lot when opening and closing?
- The spring is very tight
- The Screw touches the rubber absorption tightly, needs to be reset again.
7. Rubber lining installation suggestion:
- It is good use for fast speed, like 0.6s, 1s, 1.8s and 3s.
- The place with many vehicles come and go, like shopping center, carpark area.
8. Can you accept OEM/ODM orders?
- Absolutely, we are a manufacturer of barrier gates, with 7 years of research and developing experience.
