High Sensitivity Duty Cycle Toll Barrier Gate 10 Million Opening / Closing Processes
Duty Cycle Toll Barrier Gate 10 Million Opening And Closing Processes
Toll Barrier Gate Technical Data
| DZ-138 Toll Barrier Gate | V06T | V09T |
| Toll Barrier Gate Max Boom Length and Diameter | 2500mm, Ф75mm | 3000mm, Ф75mm |
| Toll Barrier Gate Open/Close Time | 0.6sec | 0.9sec,2.5sec,4.5sec |
| Toll Barrier Gate Power Supply | 24/100/240VAC,50/60Hz | 24/100/240VAC,50/60Hz |
| Toll Barrier Gate Power Consumption | max.150W | 100w |
| Toll Barrier Gate Machine Case | Varnished 2.0mm steel plate | Varnished 2.0mm steel plate |
| Toll Barrier Gate Machine Case Size(W*D*H) | 342*312*959mm | 342*312*959mm |
| Toll Barrier Gate Net Weight | 43kg | 42.6kg |
| Toll Barrier Gate Operating Temperature Range℃ | -45℃~+85℃ | -45℃~+85℃ |
| Toll Barrier Gate Driving Method | Servo motor | Servo motor |
| Toll Barrier Gate Protection System(IP) | 54 | 54 |
| Toll Barrier Gate Insulation Class | F | F |
| Toll Barrier Gate Relative Humidity | ≤90% | ≤90% |
| Toll Barrier Gate Motor No-load Speed | 3000r/min | 3000r/min |
| Toll Barrier Gate Remote Control Distance | ≤100m (open, sunny weather) | ≤100m (open, sunny weather) |
| Toll Barrier Gate Output Torque | 1.2N.M*140=160N.M | 0.86N.M*140=120N.M |
| Toll Barrier Gate Running Noise | 45dB | 45dB |
| Toll Barrier Gate Surface Treatment | Outdoor metal powder electrostatic spraying | Outdoor metal powder electrostatic spraying |
Toll Barrier Gate Functions
1. Toll Barrier Gate Speed can be adjusted.
2. Toll Barrier Gate up &down signal relay switch output.
3. Toll Barrier Gate running state: OK signal output indicating that the gate is working properly.
4. Toll Barrier Gate R&G Traffic light relay switch signal output.
5. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.
6. Count mode interface.
7. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the triple push button, software, or remote control to issue an open command, the gate will give priority to the implementation of the opening action.
8. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swung out to avoid damage to the vehicle and the barrier gate.
9. Delay closed selection function.
10. High-sensitivity arm auto reverse function (intensity can be adjusted).
11. Toll Barrier Gate Parking system interface.
12.Toll Barrier Gate RS485 or RS232 network communication control up &down interface (no need to install communication module)
13. Toll Barrier Gate Anti-collision alarm signal interface.
14. Adjustable speed port (from 0.9s to 6 s)
15. Toll Barrier Gate High-strength precision cast steel, industry moving parts beyond the industry quality
Toll Barrier Gate Operation time and boom length
| Boom-Type(meter) | Operation Time(seconds) |
| Fast speed boom≤2.5 | 0.6 |
| Fast speed boom≤3 | 0.9 |
| Common straight boom≤4.5 | 2.5 |
| Common straight boom≤6 | 4.5 |
| 80*45mm 90°folding boom≤3 | 1 |
| 80*45mm 90°folding boom≤3.5 | 2.5 |
| 80*45mm 90°folding boom≤5 | 5 |
| 80*45mm 180°folding boom≤3 | 1 |
| 80*45mm 180°folding boom≤4 | 2.5 |
| 80*45mm 180°folding boom≤5 | 4.5 |

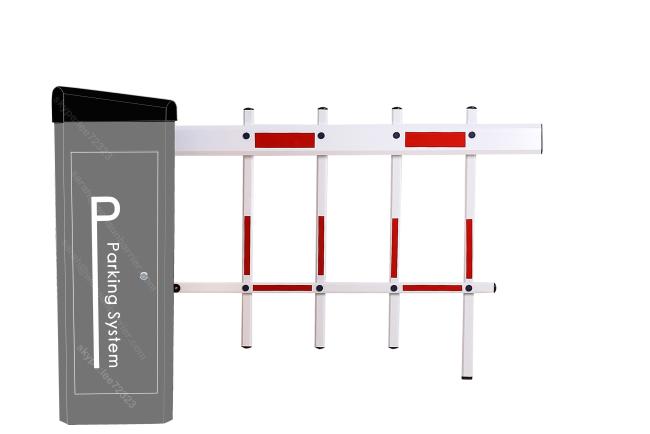

| 100*45mm 2 fence boom≤3.5 | 2.5 |
| 100*45mm 2 fence boom≤5 | 6 |
| 100*45mm 3 fence boom≤3 | 3 |
| 100*45mm 3 fence boom≤4 | 6 |
| Power Supply | ServoMotor | Control board | Speed adjustor |
 |
 |
 |
 |
Packing list:
| Title | Specification | Qty | Unit | Note |
| Toll Barrier Gateboom | 1 | Piece | ||
| Machine case pressboard | 2 | piece | For fixing case | |
| Expansion bolt | M16X150 | 4 | set | For fixing case |
| Supporting pole | 1 | piece | Optional part | |
| Expansion bolt | M8 | 4 | unit | For fixing boom |
| Toll Barrier Gate Boom fixed screws | M12*70 | 2 | unit | |
| Toll Barrier Gate Case Key | 2 | unit | ||
| Balance spring | 1 | unit | For spare usage | |
| Remote controller | 2 | unit | ||
| Machine control | 1 | unit | Optional | |
| Instruction | 1 | piece |
Service Item
1. Two year’s free servicing is supplied (not including the arm and remote controller). In the condition of complying with the operating instructions, without the unauthorized maintenance of the parts and the machine has no obvious mechanical damage, we will provide quality assurance for the barrier gate product from the date of use for a period of two years or from the date of shipment up to three years including all mechanical and electronic components other than special consumables.
2. Lifetime charged servicing is offered.
3. Technology servicing is supplied.
*The following situations are charged for servicing (or replacement):
1. Broken by wrong installation;
2. Broken by improper voltage;
3. The surfaces of the system are destroyed by wrong installation or use.
4. Broken by natural disaster.
5. Overdue.
6. Servicing items out of the promises.
Service for free:
1. Two-year free service is supplied(not including the arm)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customize the machine case, color, and logo for you, according to your detailed
requirements.
5. Technical support and aftersales service, is a long-term relationship between us.
6. Price can be negotiable when you have a big order quantity.
Charging service:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier were destroyed by the wrong installation and usage
4. Overdue service items are out of our promise.
