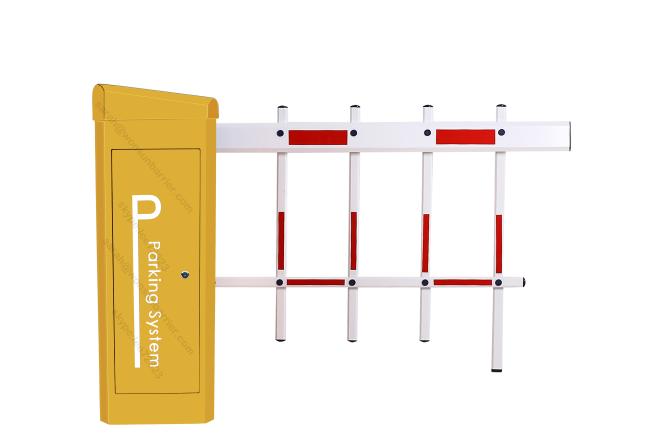

5m Two Fence Arm Boom For Barrier Gate , Parking Garage Arm
Barrier Gate Accessories 5m Two Fence Arm Boom For Barrier Gate
Specification:
| Boom Shape | Max Boom Length | Speed |
| Straight boom | 6m | 6 seconds |
| Straight boom | 4.5m | 3 seconds |
| Straight boom | 3m | 1 second |
| 90 degree, Articulated boom | 5m | 6 seconds |
| 90 degree, Articulated boom | 3m | 3 seconds |
| 180 degree, Articulated boom | 5m | 6 seconds |
| 180 degree, Articulated boom | 3m | 3 seconds |
| Two-level, fence boom | 4.5m | 6 seconds |
| Three level, fence boom | 4m |
6 seconds |
Functions&Features:
1: power failure automatic gate, no clutch design,
Incoming call automatic reset, restore to close state. If you have special need that manual intervention, it can be set up easily, you can gently rotate poles to manual Open / close boom without open the housing by using adjust the control board
2: a variety of input and output modes can be selected, often open and close can be selected.
3: rod angle can be adjusted from 55~90 degrees, 10 degree resolution.
4: Speed can be adjusted, 0.9s to 6s
5:all kinds of state signal output.
6: barrier gate running state OK signal output.
7: alarm signal output.
8: traffic lights signal relay output.
9: external Vehicle detection signal, infrared sensor signal.
10: AC90V~AC264V50/60Hz, the global universal voltage standard. Also available
24V battery power supply.(No mains place to pick up solar energy,wind energy to recharge battery)
11: the Opening time is less than 0.9s.
12: the running noise is less than 60dB.
13: standard boom length 3m.
14: Power consumption: 50W, maximum power 100W.
15:It is also a simple matter to change the handing on-site from right-Hand to left-Hand.
16: automatically detect whether the balance spring fatigue or damage, if the spring
fatigue tips to adjust, if you can not adjust the spring, replace the spring is very easy,
no need to use tools, hand can be replaced.
17: remote control open / close and car park system control open / close, separate
input, respectively, the number of corresponding statistics.
18: the RS232 or RS485 connected to PC of the parking system.
Why choose WONSUN?
1.One year's free servicing is supplied
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltae.
3. The surfaces of the system destroyed by wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining authority of this product instruction and service article belong to the production factory.
