Economical DC Motor Automatic Vehicle Barrier 140W Rated Power IP44 Degree

Price Negotiable

Price: Negotiable

MOQ: 1PC

Delivery Time: 3-7 working days after received your payment

Brand: WONSUN

Product Description

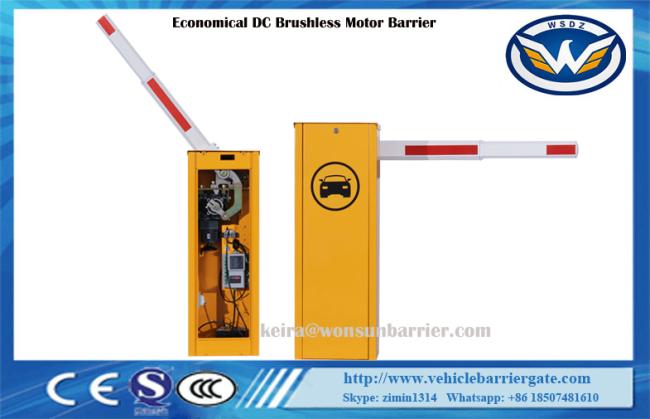

Economical DC Motor Automatic Barrier Gate With 24V DC Motor Brushless Hall Limit

Technical parameters

1 Working temperature(motor): -35℃~+85℃
2 Rated voltage:DC24V
3 Running speed:1.5s-8s
4 Rated current:8.58A
5 Rated power:140W
6 No-load speed:1850rpm
7 Rated speed:1400rpm
8 Remote control distance:≤100M(in the open place)
9 IP Degree:IP44
10 Max length of arm:6M

Features

1 The running speed can be adjusted from 1.5s to 8s

3 Open the barrier gate by motor wheel when power off ,automatically reset after power on

4 Curved crank arm three- link movement structure, the operation is stable

5 Wireless remote control control open/close

6 Auto reverse function(force adjustable)

7 Infrared photocells connector is available

8 Loop detector connector is available.

9 Well-integrated with car parking system equipment,with wire control(must be switch signal)

10 Connector for traffic light(AC220V,power less than 40W)

11 Offering dry contact signal for car parking system(COM,NC,NO)

12 Auto-delay when closing(adjustable)

Arm length speed comparison table

Menu code	Number	Menu code name	Defaults	unit	Remarks
H00-00	25-95	Open speed adjustment	40		Corresponding PWM duty cycle 25%-95%, step size is 1
H00-01	25-95	Close speed adjustment	40		Corresponding PWM duty cycle 25%-95%, step size is 1
H00-02	5-40	Open in place decelerate angle	35		The larger the angle value, the less likely it is to shake the arm when it is in place.
H00-03	5-40	Close in place decelerate angle	35		The larger the angle value, the less likely it is to shake the arm when it is in place.
H00-04	1-20	Open accelerate adjustment	10	ms	The smaller the number, the faster the speed
H00-05	1-20	Close accelerate adjustment	10	ms	The smaller the number, the faster the speed
H00-06	1-30	Open in place angle	2	degree	step size is 1
H00-07	1-30	Open in place angle	1	degree	step size is 1
H00-08	7-13	Auto reverse force adjustment	10	A	step size is 1
H00-09	0-90	Delay closing adjustment	0	Sec	step size is 100；0 is not closing automatically,,Other value will be closing automatically;This parameter is for when there is no loop detector signals and non-automatic operation occasions
H00-10	10-50	Self-check speed adjustment	30		Corresponding PWM duty cycle 10%-50%, step size is 1
H00-11	0-2	Self-check mode	0		0:no operate automatically；1:operate automatically,remove after power off；2:operate automatically,Power failure memory
H00-12	0-5	Self-lock force adjustment(Invalid)	3
H00-13	1-20	Motor deceleration time when paused	5		The larger the setting, the longer the pause time will take
H00-14	0-1	The default direction of operation after self-test	0		0:Closing,1:opening
H00-15	1-10	Number of pole pairs(Invalid)	4		Only used to correctly display motor speed values
H00-16	1-32	RS485communication address	1		Up to 32 slaves can be connected
H00-17	0-2	RS485communication rate	0		0:9600,1:19200,2:38400；Change the parameter and will be valid after power on again.
H00-18	0-1	If self-test after power is on	1		0:no self-test after power on,1:self-test after power on
H00-19	0-3	Manual self-test adjustment	2		0:Manually invalid,1:Keyboard SET button,2:remote control valid,3,Keyboard SET button and remote control both valid
H00-20	0-15	Monitoring parameter setting index	7		7,operation times(ms):0~9000 8,Cumulative operation times:0`99999999 9,automatically operation times :0~99999999 10,Collision times:0~99999999 11,Closing in place times:0~99999999 12,Power-on time (minutes):0~99999999 13,power-on times:0~99999999 14,Input port status:Binary display 15,Error code:0~7
H00-21	0-3	reset	0		1:rest adjustment
H00-22	0-1	LED output mode	0		0:Do not flash alternately during operation；1:Allow flashing
