Anti Hit Parking Barrier Gate Arms For Parking Lots With New Bending Arm

Price Negotiable
Price: negotiation
MOQ: Negotiable
Delivery Time: 3-7 working days after received your payment
Brand: WONSUN
Product Description

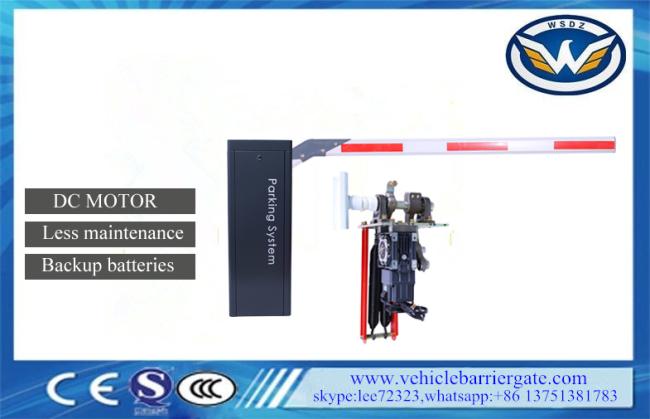

Parking Barrier Gate Arms For Parking Lots With New Bending Arm



Anti-collision protects the boom arm.
Once the anti-collision mechanism is installed, it will protect the Parking Barrier Gate boom arm not to being damaged once the Parking Barrier Gate boom arm collides with a vehicle.
Anti-hit by pressure resistance bounce
While moving down, the Parking Barrier Gate boom arm will immediately go back to the vertical position once it is obstructed by an imposed force, which protects the vehicle or person not to being hit by the Parking Barrier Gate boom arm. The sensitivity is adjustable.
Anti-hit by Loop Detector(Optional)
The suppose1# loop detector is connected to the barrier gate. While the Parking Barrier Gate boom moves down,
If a coming vehicle was detected to be existing on the ground induction coil (to be connected
to1# loop detector), the Parking Barrier Gate boom will go back to the vertical position immediately until the loop input is dismissed and then the Parking Barrier Gate boom will go down immediately



Parking Barrier Gate Technical parameters

1 Parking Barrier Gate Working temperature(motor): -35℃~+85℃
2 Parking Barrier Gate Rated voltage: DC24V
3 Parking Barrier Gate Running speed:1.5s-8s
4 Parking Barrier Gate Rated current: 8.58A
5 Parking Barrier Gate Rated power: 140W
6 Parking Barrier Gate No-load speed:1850rpm
7 Parking Barrier Gate Rated speed:1400rpm
8 Parking Barrier Gate Output Power: 56.8N.m
9 Parking Barrier Gate Relative humidity: ≤90%
10 Parking Barrier Gate Remote control distance: ≤100M( in the open place)
11 Parking Barrier Gate IP Degree: IP44
42 Parking Barrier Gate Max length of arm: 6M




Parking Barrier Gate Model Parking Barrier Gate Boom Shape Max Boom Length Speed
WST1191 Straight boom 6m 6 seconds
WST1192 Straight boom 4.5m 3 seconds
WST11921 90-degree, Articulated boom 5m 6 seconds
WST11922 90-degree, Articulated boom 3m 3 seconds
WST11961 180-degree, Articulated boom 5m 6 seconds
WST11962 180-degree, Articulated boom 3m 3 seconds




FAQ

1-Can you install using loop detector or pressure sensor on it?
Yes, the standard advertising barrier gate has a loop detector and pressure sensor.

2-How about the guarantee and after-sale service?
We have a 1-year quality guarantee, We own well-trained and passional sales & aftersale services who can speak fluent English language.

3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special items, or need a custom design package or logo, need 3-10 working days longer.


4-How about the payment terms?
TT, Western Union, our company already joined the trade assurance, it will highly protect your order security.

5-How do you send the products to me, how long?
As our products are big volume and heavy duty, we suggest you ship by sea. You can also choose your shipping forwarder. It normally takes 7-60 days depending on different countries.

6-What is the package of the barrier gate?
Inside with a carton package. Then outside, there are wooden crate packages.
