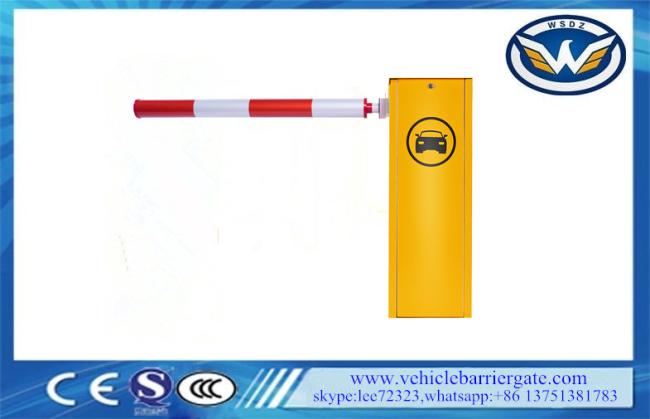

Brushless 140W 1400rpm 6M Arm Parking Entrance Barrier IP44
Economical Parking Barrier Gate With DC Brushless Controller
Our range of Parking Barrier Gate serves the purpose of allowing individual passage of vehicles and regulating the entry and exit of vehicles.
Parking Barrier Gate Technical parameters
- Hall limit: Automatically detects the limit when power is on without debugging, detecting the Parking Barrier Gate motor speed at all times, and running at a constant speed.
- Curved triple connecting rod structure, easy to adjust.
- Parking Barrier Gate Arm direction quickly interchanged: interchanged according to different directions on the construction site, reducing inventory, and capital pressure.
- Special DC brushless Parking Barrier Gate controller: uses integrated chip drive, fast processing speed, large memory, powerful function;24v low voltage power supply adapts to global voltage.
Parking Barrier Gate Features
1 The running speed can be adjusted from 1.5s to 6s
2 Can be quickly interchanged
3 Open the barrier gate by the motor wheel when power is off, and automatically reset it after power on
4 Curved crank arm three-link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment, with wire control(must be switch signal)
The parameter for selecting the balance tension spring
| Arm Type | The Length of the arm | Selection Spring | |
| Parking Barrier Gate Arm | Parking Barrier Gate Arm length |
Type
|
Spec.(diameter*Length) |
| Straight Arm/Folding Arm | 6M≥L＞5M | Extension Spring | (ø5.5x280)+(ø4.5x280) |
| 5M≥L≥4.5M | (ø5.5x280) | ||
| 4.5M＞L≥3M | (ø4.5x280) | ||
| Fence Arm | 5M≥L≥4M | (ø6.5x280)+(ø6.5x280) | |
| 4M＞L≥3M | (ø5.5x280)+(ø4.5x280) | ||
Learning Parking Barrier Gate Remote control
Parking Barrier Gate
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes, the standard advertising barrier gate has a loop detector and pressure sensor.
2-How about the guarantee and after-sale service?
We have a 1-year quality guarantee, We own well-trained and passional sales & aftersale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special items, or need a custom design package or logo, need 3-10 working days longer.
4-How about the payment terms?
TT, Western Union, our company already joined the trade assurance, it will highly protect your order security.
5-How do you send the products to me, how long?
As our products are big volume and heavy duty, we suggest you ship by sea. You can also choose your own shipping forwarder. It normally takes 7-60 days depending on different countries.
6-What is the package of the barrier gate?
Inside with a carton package. Then outside, there are wooden crate packages.
