DC 24V 140W 1400rpm 8.58A Parking Lot Barrier Gate

Price Negotiable

Price: Negotiable

MOQ: 1PC

Delivery Time: 3-7 working days after received your payment

Brand: WONSUN

Product Description

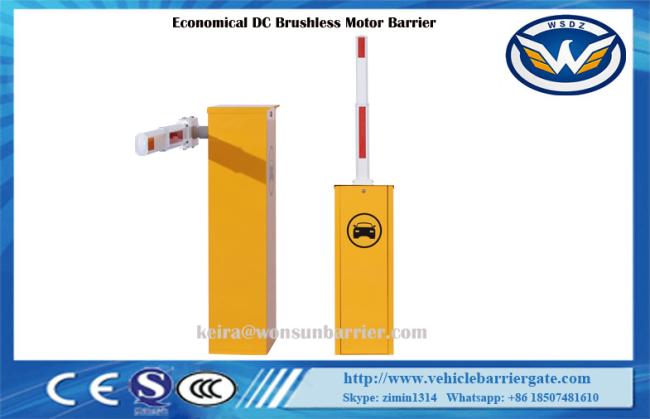

Economical DC Motor Automatic Barrier Gate With 24V DC Motor Brushless Hall Limit

Safety Precautions

To ensure your safe operation, please strictly in accordance with the provisions of this manual.

To avoid personal injury, it is strictly forbidden to open the door or cover when barrier working.
The barrier housing must be connected to the ground to prevent inductive electric shock.
It is strictly forbidden to stand, walk or place objects under the boom/ arm when barrier working.
The boom/arm and the spring have been matched to the balance state before goods leave out
our factory. To avoid the danger of the balance being lost, the length and weight of the boom/arm
can not be increased or decreased at random. If you need to change it, please ask the professional for advice.

Technical parameters

Working temperature(motor)	-35℃~+80℃
Rated voltage	DC24V
Running speed	1.5s-8s
Rated current	8.58A
Rated power	140W
No-load speed	1850rpm
Rated speed	1400rpm
Remote control distance	≤100M(in the open place)
IP Degree	IP44
Max length of arm	:6M

Features

1 The running speed can be adjusted from 1.5s to 8s

3 Open the barrier gate by motor wheel when power off ,automatically reset after power on

4 Curved crank arm three- link movement structure, the operation is stable

5 Wireless remote control control open/close

6 Auto reverse function(force adjustable)

7 Infrared photocells connector is available

8 Loop detector connector is available.

9 Well-integrated with car parking system equipment,with wire control(must be switch signal)

10 Connector for traffic light(AC220V,power less than 40W)

11 Offering dry contact signal for car parking system(COM,NC,NO)

12 Auto-delay when closing(adjustable)

Type Length and Operating Speed Parameters of Barrier Gate

Arm type	Arm Length (L)	Operation time(S)	Height between arm and ground (M)
Straight arm	6M≥L>5M	5S	H=0.83M
	5M≥L≥4.5M	4S
	4.5M>L≥3M	3S
90 degree folding arm	L≤5M	5S
180 degree folding arm	L≤5M	5S
Two fence arm	5M≥L≥4M	6S	H=0.9M
Two fence arm	4M>L≥3M	3S	H=0.9M
Three fence arm	5M≥L≥4M	6S	H=1.5M
Three fence arm	4M>L≥3M	5S	H=1.5M

Interchange descriptions

The product direction can be interchanged, divided into 6 steps.

Step 1: remove the M8X20 inner hexagonal screw,take out the machine core;

Step 2: remove the electrical supporting plate from left side to the right side;

Step 3: remove the M10*30 fixed screw on the boom tray (see figure 1);

Step 4: using the M14*150 screw to pull out the boom tray head(see figure 2);

Step 5: install the boom tray head from the original left to the right side,or the original right to the lest side;

Step 6: put the machine core back into machine case, fixed the M8*20 hexagonal screw, direction interchange

is completed, no need to adjust other Settings.
