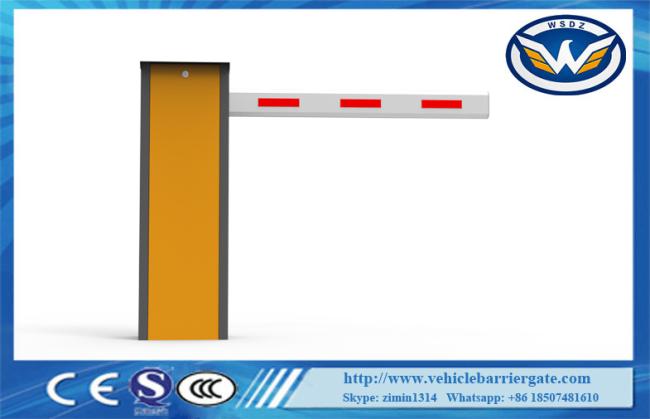

1400rpm RS485 24V DC 6sec 6M 150W Traffic Barrier Gate Anti Collision
1400rpm RS485 24V DC 6sec 6M Barrier Gate 150W Traffic Barrier Gate With Anti-collision
1. Technical parameters
| 1 Working temperature(motor): -30℃~+70℃ |
| 2 Rated voltage:DC24V |
| 3 Running speed:2.5s-8s |
| 4 Rated current:9.5A |
| 5 Rated power:150W |
| 6 No-load speed:1850rpm |
| 7 Rated speed:1400rpm |
| 8 Rated torque:59.6N.m |
| 9 Relative humidity:≥85% |
| 10 Remote control distance:≤100M(in the open place) |
2. Function
| 1 The running speed can be adjusted from 2.5s to 8s |
| 2 Arm can be quickly interchanged. |
| 3 Open the barrier gate by motor wheel when power off ,automatically reset after power on |
| 4 Curved crank arm three- link movement structure, the operation is stable |
| 5 Wireless remote control control open/close |
| 6 Auto reverse function(force adjustable) |
| 7 Infrared photocells connector is available |
| 8 Loop detector connector is available. |
| 9 Well-integrated with car parking system equipment,with wire control(must be switch signal) |
| 10 Connector for traffic light(AC220V,power less than 40W) |
3.Equipment installation
Please select the correct type of barrier gate according to the specifications of
the pace,and then fix the barrier cabinet with expansion bolts(refer to Figure 3).
After determined the position,the barrier gate foundation should be done according to the site conditions,and
also make the cast-in-place basement for the non-concrete ground.
4.Barrier arm balance adjustment
1,Please check and confirm arm status in horizon and vertical position,then tighten 2pcs M12 screw.
2,According to arm balance status, repeat adjusting the spring level of tightness of M8*140MM, make sure
the arm open and close in stable.
3,For the barrier gate with double springs,please adjust the two springs simultaneously.
4,If arm open and close shake too much, Please check below picture. Open arm shaking a lot means spring
is too tight, loose a little. Close arm shaking too much means spring too lose, repeat tighten a little spring.
5.Electrical installation, wiring diagram
1. The internal wiring of this machine has been completed when it leaves the factory, please do not change it, just connect the 220V power supply and the protective ground wire to work.
2. Traffic light interface: 2A24V voltage traffic light use.
3. Infrared anti-smashing interface: external infrared anti-radiation device, and the switch signal of the anti-radiation output can be connected.
4. Ground sense interface: support external ground sense. When using an external ground sensor, you only need to connect the switch signal output by the ground sensor.
5. Parking system interface wire control interface: connect the switch signal from the system to this interface to control the barrier.
6. Starting limit and landing limit signal output: output COM/NO/NC switch signal to the system to inform the current state of the barrier.
7. RS485 or CAN communication interface: PC software can be used to manage more than 15 barriers.
The parameter for selecting the spring
| Arm type | Arm length | Use of spring | |
| Type | Dimension(Wire Diameter*Length) | ||
| 100*45 Straight arm | 6m | Tension spring | 4.5+5.5 |
| 5m | 4.0+5.5 | ||
| 4.5m | 4.5+4.5 | ||
| 4m | 4.5+4.0 | ||
| 3.5m | 4.5 | ||
| 3m | 4.5 | ||
| 80*45Straight arm | 6m | 5.5+4.0 | |
| 5m | 5.5+4.0 | ||
| 4.5m | 4.5+4.5 | ||
| 4m | 4.5+4.0 | ||
| 3.5m | 4.5 | ||
| 3m | 4.0 | ||
| Two fence arm | 4.5m | 5.5+5.5 | |
| 4m | 4.5+5.5 | ||
| 3.5m | 4.5+4.5 | ||
| 3m | 4.5+4.5 | ||
| 90 degree arm | 5m | 5.5+4.5 | |
| 4.5m | 5.5+4.5 | ||
| 4m | 4.5+4.5 | ||
| 3.5m | 4.5+4.5 | ||
| 3m | 4.5+4.0 | ||
| Three fence arm | 4.5m | 5.5+6.8 | |
| 4m | 5.5+5.5 | ||
| 3.5m | 4.5+5.5 | ||
| 3m | 4.5+4.5 | ||
| Remark:6.8 yellow,5.5 blue,4.5 red,4.0 green | |||
(the parameter is based on the company’s arm)
