High Speed Transmission Rate G.657 Fiber Optic Pigtail LC / PC 900um SM For FTTH
High Speed Transmission Rate G.657 Fiber Optic Pigtail LC / PC 900um SM For FTTH

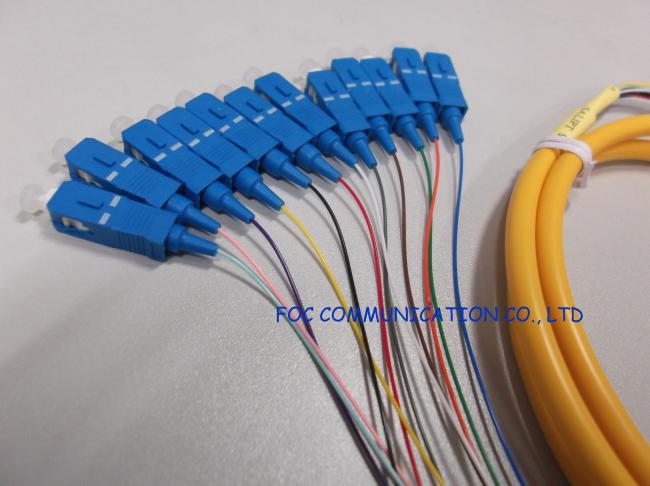

Optical fiber pigtail is a fiber optic component that has a durable and fiber optic connector installed on one end and a length of exposed fiber at the other end. Fiber optic pigtails are used to connect the major optical cable lines and the optical receivers in optical fiber communication systems.
Our range of fiber pigtail is made up with high fiber cable connector, high quality fiber optic cable and qualified fiber optic assembly. It features high environmental suitability, easy installation, a long lifetime, high tensile strength.
Features
1.4c, 6c, 8c, and 12c fiber options
2. Connector ends are staggered to simplify installation
3. Color-coded fiber jackets throughout the cable for easy fiber identification
4. Low insertion loss and high return loss
5 .Excellent interchangeability and durability
6 .Custom made optical pigtails are available
Applications
1.Optical fiber communication system
2.Telecommunication network
3.CATV, LANS and WANS
4.Connection of equipment in the open air
5.Installation and debugging in harsh conditions
6.FTTX
Specifications
| Parameter | Specifications | |
| Single mode fiber pigtail | Multimode fiber pigtail | |
| Testing wavelength | 1310nm, 1550nm | 850nm, 1300nm |
| Insertion loss | Typical≤0.2dB, max≤0.3dB | Typical≤0.2dB, max≤0.3dB |
| Return loss | UPC≥50dB, APC≥60dB, | ≥35dB, |
| Repeatability | ≤0.1dB | |
| Exchangeability | ≤0.2dB | |
| Durability | 1000 Mating, typical≤0.2dB | |
| Operating Temperature | -20℃ to +70℃ | |
| Storage Temperature |
-40℃ to +85℃ |
|
Fiber Optic Pigtail, Optical Fiber Pigtail, Fiber Pigtail, Fiber Pigtails
