0.9mm FC Fiber Optic Connector SM Simplex For Fiber Optic Test Equipment
0.9mm FC Fiber Optic Connector SM Simplex For Fiber Optic Test Equipment
Optical fiber connectors are the base passive products in fiber communication system. The optical connectors which are used in PON network are single mode type. There are many types according to the connector structure, such as FC/SC/ST/LC/MU/MTRJ/MPO. There are UPC/APC types by end face structure. Our connectors all have passed the test of Telcordia GR-326-CORE conforming RoHS requirement.
Fiber optic connectors effectively terminate optical fiber in a variety of network applications. The connectors are secured using a threaded coupling nut, providing a significant increase in pull-out performance. It also features an internal cavity and epoxy injection tube that virtually eliminates the possibility of improper epoxy application, thus providing higher manufacturing yields. Every aspect of the connector system is precision manufactured to produce reliable and consistent performance. It is available in tunable or non-tunable PC versions for flexibility in specific performance requirements.
FC fiber optic connectors are threaded, key-oriented coupling mechanism which allows highly repeatable, low-loss connections
Features
Superior qualified standard PC, APC, UPC, SPC polishing
High precision zirconia ferrules minimize insertion loss and return loss values
Available in singlemode and multimode versions
Available with 900µm, 2.0mm, or 3.0mm boots
Precision mechanical dimension
One piece with pre-domed ceramic ferrule is designed for sat, easy assembly & polishing
Low insertion loss
Corrosion resistant body
Fixed key and activity key available
Rubber boot and Bellcore boot can be selected
Connector kit is also available
All parts compliant with Rohs

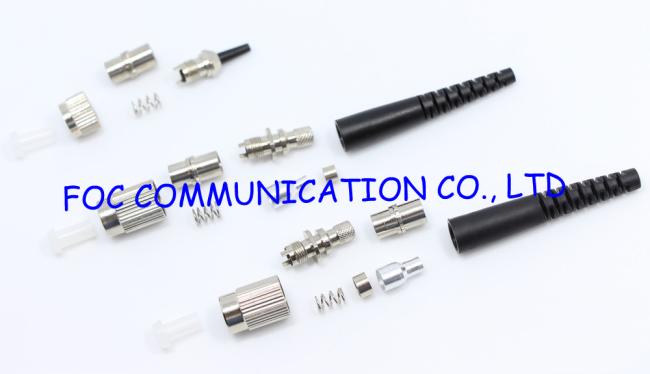

The connector can be supplied as a pre-assembled one-piece connector or as connector kit
Housing kits without ferrule are available.
Application
Instrumentation
Local Area Networks (LANs)
Data processing networks
Premise installation
Telecommunications networks
CATV - Cable television
FTTH
LAN, MAN and WAN application
Data processing networks
Premises distribution
Specifications
| Parameter | Unit | FC,LC,SC | ST,MU | MTRJ,MPO | |||||||
| SM | MM | SM | MM | SM | MM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 |
| Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | |||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Operating temperature | °C | -40~+75 | -40~+75 | -40~+75 | |||||||
