16 Ports Fiber Optic Distribution Box With Splitters and Adapter For FTTH​

Fiber optic splitter distribution box is designed to enable the fiber network to be installed and connected in the short possible time.  All the components are pre-assembled and easy to be installed together.  And it is a perfect solution for optical fiber installations and management. It is suitable for SC splitters 1:8 and 1:16 type, 8cores or 16cores.

Descriptions
Applicable in FTTH project
Suitable for indoor, basement, room and building's outer walls application
Used as a termination point for the feeder cable to connector with drop cable
With the function of mechanical splice, fusion splice, light splitting, wiring distributions
Provides solid protection and management for the FTTx network building

Features

Total enclosed structure, perfect peformance

Industry Standard User Interface, be made of high impact plastic

Can accommodate 1x8 & 1X16 PLC splitter.

Anti-UV, Ultra violet resistant and rainfall resistant.

Up to 24FTTH drops cable

Wall and pole mountable.

1~3 inlet ports, 8~24 outlet ports.

Easy maintenance and installation

Application

Widely used in FTTH access network.

Telecommunication Networks

CATV Networks

Data communications Networks

Local Area Networks, Wide Area Networks

Specifications

Working Temperature: -40℃～+85℃

Insertion Loss: ≤0.2dB

Return Loss UPC: ≥50dB

Return Loss APC: ≥60dB

Durability: ≤0.3dB(1000 matings)

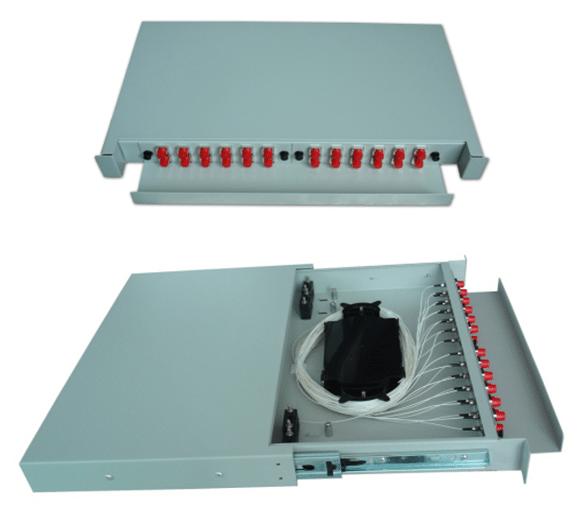

Fiber Optic Patch Panel, Optical Fiber Patch Panel, ODF, Fiber Optic Distribution Frame
