LC 1.25mm to ST 2.5mm Hybrid Fiber Adapter MM High Precision Connection
LC 1.25mm to ST 2.5mm Hybrid Fiber Adapter MM High Precision Connection
LC male-ST female fiber optic adapter is specially designed to incorporate the Small Form Factor LC into ST configured environment. The compact design of LC male-ST female fiber adapter enables network operators to reduce cost via space-savings, and by eliminating hybrid cable assemblies.
Male to female fiber optic adaptors allow users to couple from one connector type to another type. These adaptors are comprised of a polymer/metal outer body and their inner assembly fitted with a precision alignment mechanism. They are precisely made and manufactured to demanded specification. Sleeves and a precision molded polymer housing provides consistent long-tem mechanical and optical performance.
LC-ST fiber optic coupler male to female is also used to connect fiber-optic cables together. It offers a solution for hybrid applications where the two different kinds of fiber optic connectors or cable assemblies need to be connected with each other. The main function of hybrid fiber optic adapter is for connection between various different fiber optic connectors, fiber optic patch cords, fiber optic pigtails and fiber optic equipments, different shapes, but it offers the point-to-point connection in the fiber optic network.

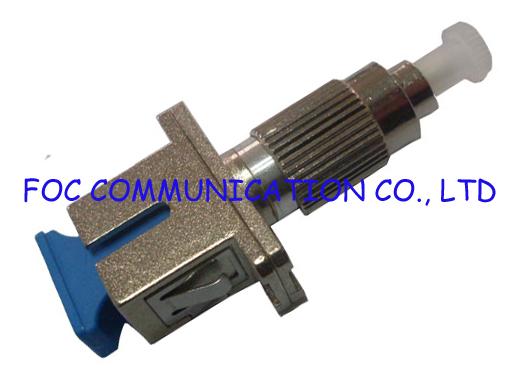

Male to female fiber optic adapter provides reliable solution for fiber connections and meet the market requirement. SC-FC, SC-LC, FC-ST, E2000-SC, and other types are all available.
Features
Used for connecting and coupling of the fiber optical connector
Low insertion loss and high return loss
High precision mechanical dimensions
High performance and reliability
Applications
Optical Distribution Frame
Fiber Optic Instruments
Fiber Optic Communication System Interface
Fiber Instrument
Fiber LAN, Wide Area Networks
Specifications
| Parameter | Unit | LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU | MTRJ | E2000 | ||||||
| SM | MM | SM | MM | SM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | APC | ||
| Insertion Loss (Typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
| Repeatability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ||||||
| Durability | Time | >1000 | >1000 | >1000 | ||||||
| Operating Temperature | °C | -40~75 | -40~75 | -40~75 | ||||||
| Storage Temperature | °C | -45~85 | -45~85 | -45~85 | ||||||
| Plug and Unplug force (g/f) | 200—600 | |||||||||
| Spec | Simplex and Duplex | |||||||||
Ordering Information
|
Cores Count |
SX= Simplex, DX=Duplex, Quad |
|
Type |
UPC, APC |
|
Material |
Plastic, Metal |
|
Connector Type |
FU=FC/UPC, FA=FC/APC, SU=SC/UPC, SA=SC/APC, ST=ST/UPC, LU=LC/UPC, LA=LC/APC, X=Others |
Fiber Optic Adapter, Optical Fiber Adapter, Fiber Optic Coupler
