Fiber Optic Jumper Fiber Optic Patch Cord FC - FC Duplex G.657A Bend Insensitive

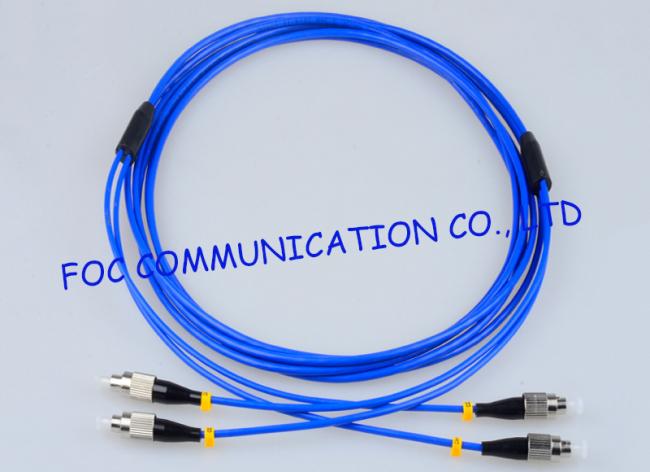

Armored Fiber Optic Patch Cord FC - FC Duplex G.657A Bend Insensitive
Armored patch cables have a metal sheathing housed in a robust outer jacket. Providing greater protection for sensitive optical fiber than standard cables, it enables installation in hazardous areas including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents.
Armored patch cord can be deployed directly in different harsh environment, save space, reduce construction cost, and make the maintenance more conveniently. Furthermore, it has steel strength member to prevent optic fiber from damage, which improves security and stability of the system.
Every armored patch cord is optically tested for insertion loss to ensure a high quality end product. We rely on these cables for use in our clients fiber networks across the world.
Features
Ensure transmission power and avoid additional attenuation
Prevent optic fiber from destroy by harsh environment and improper operation
High resistance of tensile strength, pressure, rodent bite
Without damage by construction
Application
Telecommunications and data trunk
Long haul networking
Applications requiring moisture, weather resistance
Harsh environments, where a traditional fiber optic patch cable may fail
Building interconnections
Specifications
| Connector Type | SC, LC, FC, ST, MTRJ | ||
| Endface Type(nm) | PC | UPC | APC |
| Insertion Loss(dB) | ≤0.30 | ≤0.30 | ≤0.30 |
| Repeatability(dB) | ≤0.10 | ||
| Exchangeability(dB) | ≤0.20 | ||
| Return Loss(dB) | ≥45 | ≥50 | ≥60 |
| Fiber Type | SM, MM | ||
| Operation Temperature(℃) | -25℃~ +70℃ | ||
| Storage Temperature(℃) | -40℃~ +85℃ | ||
| Durability(time) | >1000 times | ||
| Industry Standard | Telcordia GR-326-CORE | ||
Ordering information
| Interface | Connector | Length | Color of jacket | Type of jacket | Fiber Type | Cores |
| P-PC | SC-SC | 3M | B-Black | PE | SM | Duplex |
| U-UPC | LC-LC | 5M | Y-Yellow | X-Customized | MM 50/125um | 4cores |
| A-APC | ST-ST | 10M | W-White | MM 62.5/125um | 6cores | |
| FC-FC | 15M | X-Customized | MM OM3 | 8cores | ||
| MTRJ-MTRJ | 20M | 12cores | ||||
| Hybrid type | Customized |
