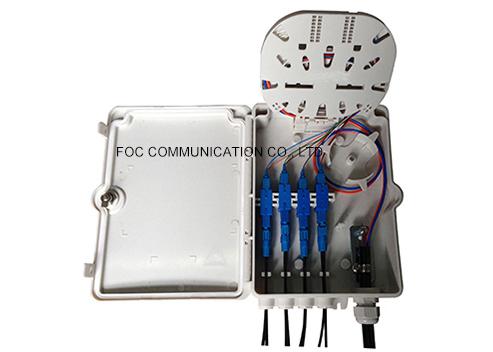

Outdoor FTTX Box 8 Fiber Loaded With 1pc PLC 1:8 Steel Tube Type Splitter

Optical fiber terminal box is a product range of compact wall mountable fiber enclosures for indoor and outdoor use. The enclosures are specifically designed for fast deployment and easy customer connection.

FTTH box is for jointing fiber cable and pigtails, It protects fiber optic splices and enables distribution. The termination box is wall-mounting and is mainly used in telecommunication and network equipment rooms.

Descriptions
Applicable in FTTH project
With the function of mechanical splice, fusion splice, light splitting, wiring distributions
Provides solid protection and management for the FTTx network building

Suitable for indoor, basement, room and building's outer walls application
Used as a termination point for the feeder cable to connector with drop cable

Features

Wall mountable and pole mountable

Easy maintenance and installation

Total enclosed structure, perfect peformance

Industry Standard User Interface, be made of high impact plastic

Anti-UV, Ultra violet resistant and rainfall resistant.

Application

CATV Networks

Widely used in FTTH access network.

Telecommunication Networks

Data communications Networks

Local Area Networks, Wide Area Networks

Specifications

Dimension(mm): 171.4x234.5x47.4mm
Material: ABS plastic
Adapter port: 8pcs SC simplex
Max. capacity: 8 fibers
Max. qty of splice tray: 1pc
Max. capacity of splice tray: 8 fibers
Color: white
Can load 1pc PLC 1:4 or 1:8 steel tube type splitter
