IP65 16cores Outdoor Fiber Optic Enclosures Buckle Lock FATB-0416

Fiber Access Termination Box FATB-0416 16 Cores 2mm 4mm 7mm Output Ports Can be Chosen

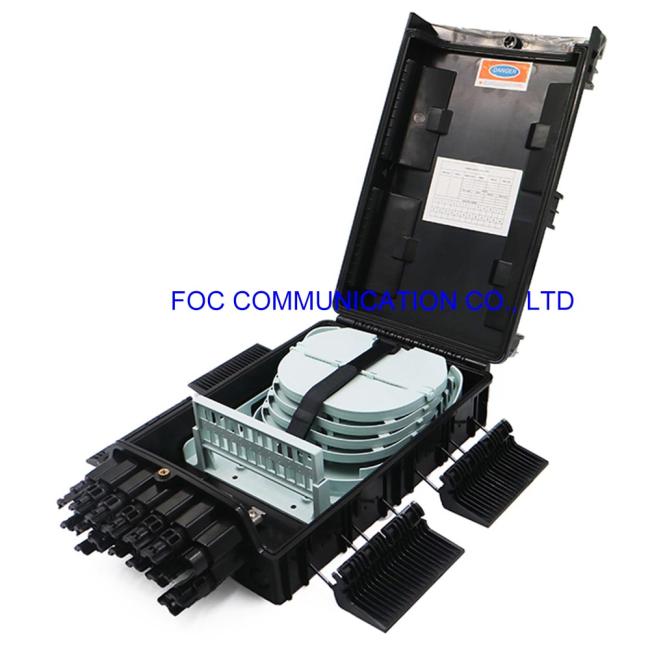

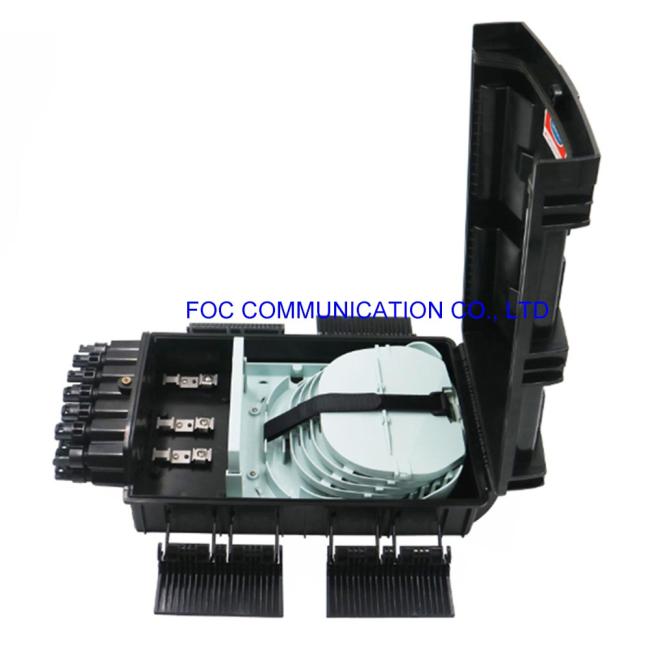

Fiber access termination box FATB-0416 is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

Features

● Water-proof design with IP65 Protection level.
● Integrated with flap-up splice cassette and adapter holder.
● Maximum 24F splice capacity, stainless anti-rust bolts and nuts.
● Easy for maintainance and expansion.
● Fiber bend radius control more than 40mm.
● 180 degree access with buckled lock structure.
● 2pcs of 1*8 mini tube type PLC splitter can be installed
● 16pcs of mechanical ports for 3-7mm drop cable.

Configuration

Fiber Access Terminal FATB-0416 Parameter

Material

Size

Max Capacity

Reinforced Adapter

Weight

Color

PC+ABS

AxBxC(mm)

Splice 120 Fibers

PLC splittter

24pcs SC/UPC

1.85kg

Grey/Black

340x220x95

2pcs of 1x8(SC)

or 24pcs SC/APC

Application

● Wall-mounted installation
● Pole-mounted installation
● Aerial-hanging installation
● Suitable for 2*3mm indoor FTTH drop cable an outdoor 4-7mm figure-8 self-supporting drop cable

Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, cable tube, key, wrench, rubber seal for cable entrance.

Optional Accessories
Pole mounted kits
