Stainless Steel 2-Panel Side Opening Elevator Landing Door
2-Panel Side Opening Elevator Landing Door | Stainless Steel | Quiet & Space-Saving Design
Product Overview
Our 2-Panel Side Opening Elevator Landing Door is engineered for smooth, space-saving, and noise-free operation in commercial and residential buildings. Made from premium stainless steel, it ensures durability, corrosion resistance, and a sleek modern appearance. The side-opening mechanism maximizes space efficiency, making it ideal for high-traffic areas where quick access is essential.
Key Features:
- Sturdy Stainless Steel Construction – Resists wear, rust, and harsh environments.
- Quiet & Smooth Operation – Precision-guided rollers reduce noise for passenger comfort.
- Space-Saving Design – Slides sideways (no forward protrusion), perfect for tight spaces.
- Safety Certified – Complies with EN 81-20/50 & ASME A17.1 standards.
- Customizable Sizes – Available in standard & made-to-order dimensions.
Technical Specifications (Table)
| Parameter | Details |
|---|---|
| Material | 304/316 Stainless Steel (Optional Powder Coating) |
| Door Type | 2-Panel Side Opening (Bi-Parting) |
| Thickness | 1.5mm – 2.0mm (Adjustable for load requirements) |
| Operating Speed | 0.3 – 0.8 m/s (Adjustable based on elevator system) |
| Noise Level | < 55 dB (Quiet operation for residential/commercial use) |
| Max. Door Width | 1200mm (Custom widths available up to 2000mm) |
| Safety Features | Infrared sensors, mechanical locks, and emergency manual release |
| Certifications | EN 81, CE, ASME A17.1, ISO 9001 |
| Finish Options | Brushed stainless steel, mirror polish, or custom powder-coated colors |
| Maintenance | Low-maintenance design with self-lubricating rollers |
Why Choose Our Side-Opening Elevator Door?
- Optimized for Traffic Flow – Ideal for hospitals, hotels, and offices requiring fast access.
- Energy-Efficient – Lightweight yet robust, reducing elevator motor load.
- Aesthetic Flexibility – Choose from brushed, polished, or colored finishes to match building interiors.
- Easy Installation – Pre-assembled panels with adjustable frames for quick retrofit.
| OP | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 |
| L | 1150 | 1300 | 1450 | 1600 | 1750 | 1900 | 2050 |

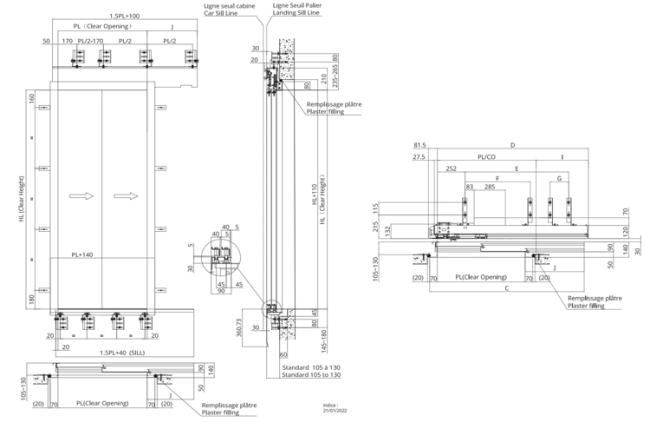

Products Measurement
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
