350kg~700kg Direct Drive Winding Drum Gearless Machine For Home Lift
Price:
$500~1200
MOQ:
1Set
Delivery Time:
7~15 days
Brand:
SUNNY
Product Description
350kg~700kg Direct Drive Winding Drum Gearless Machine For Home Lift
Quality direct drive machine PMS motor (Home lift application without counterweight design)
| Load(P+Q):350kg~700kg | Voltage:220V/380V | IP Code: IP41 |
| Speed:0.25m/s-0.4m/s | Brake Vol: DC110V | INS.Class: F |
| Roping:1:1 | Static Load:1500kg | Poles: 32 |

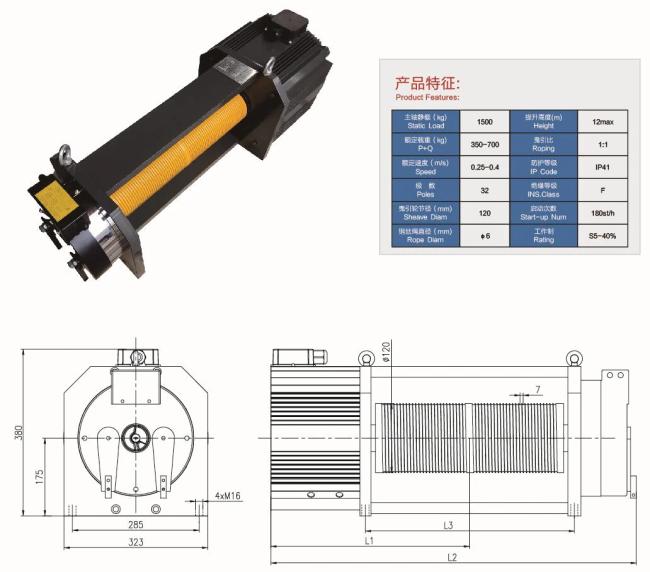

SN-KA120D Series Direct drive Machine Drum Traction Machine Specification
| Type |
Load (P+Q) |
Lift Speed [m/s] |
Drum | |||||||||
| Diam [mm] |
Groove | Vol [V] |
Power [kW] |
Hoist height(M) | Speed [r/min] |
Current [A] |
Freq [Hz] |
Poles | ||||
| SN-KA120D | 350 | 0.3 | 120 | 2*Φ6 | 380V | 1.1 | 6-12 | 48 | 5 | 12.80 | 32 | |
| SN-KA120D | 350 | 0.4 | 120 | 2*Φ6 | 380V | 1.4 | 6-12 | 64 | 5 | 17.07 | 32 | |
| SN-KA120D | 500 | 0.3 | 120 | 2*Φ6 | 380V | 1.6 | 6-12 | 48 | 6 | 12.80 | 32 | |
| SN-KA120D | 500 | 0.4 | 120 | 2*Φ6 | 380V | 2.1 | 6-12 | 64 | 7 | 17.07 | 32 | |
| SN-KA120D | 600 | 0.3 | 120 | 2*Φ6 | 380V | 1.8 | 6-12 | 48 | 7 | 12.80 | 32 | |
| SN-KA120D | 600 | 0.4 | 120 | 2*Φ6 | 380V | 2.4 | 6-12 | 64 | 9 | 17.07 | 32 | |
| SN-KA120D | 700 | 0.3 | 120 | 2*Φ6 | 380V | 2.1 | 6-12 | 48 | 8 | 12.80 | 32 | |
| SN-KA120D | 700 | 0.4 | 120 | 2*Φ6 | 380V | 2.8 | 6-12 | 64 | 10 | 17.07 | 32 | |
Frequently Asked Questions
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration considers not only wire rope and rated load, but also the size of the traction. The tensile strength exceeds the lift weight, with a safety factor of four or more wire ropes, preventing simultaneous breakage.
2. Is it dangerous during sudden power failure while the elevator is running?
In such cases, the elevator automatically stops due to electrical and mechanical safety devices. The brakes engage during power failure. Planned outages are preceded by prior notice from power supply departments.
3. Will users be hurt if the doors close suddenly?
The doors automatically reopen when touched during closing, with anti-pinch switches preventing closure. The closing force is carefully calibrated for safety.
4. How does the elevator operate?
Elevators move via counterweight wire ropes through traction drive, moving vertically along guide rails.
5. Is escalator installation complicated?
Our escalators feature integrated structures for precision and efficiency, enabling easier installation and more convenient commissioning.
6. Do you have any certifications?
Yes, we hold ISO9001, CCC, and CE Certificates for our products.
