Elevator Safety System And Hot Sale Elevator Roller Guide Shoes

Technical Parameter

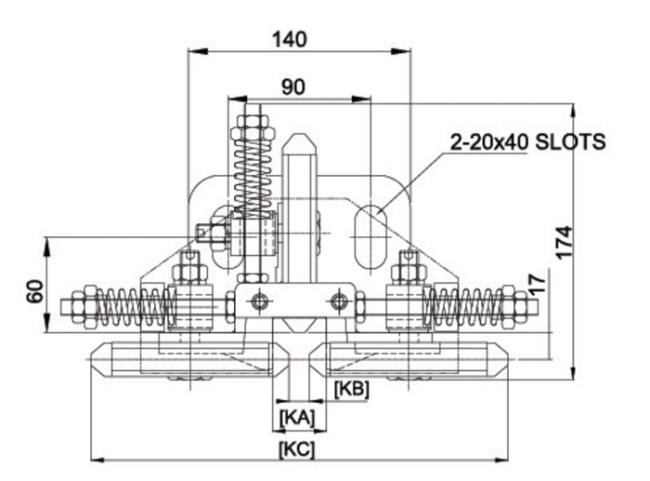

Model	SN-SGS-CB125NS
Speed	CWT:5.0m/s,CAR:3.0m/s
Rail Type	8K,13K,18K,24K
Max Rated Load	1800kg
Diameter	Φ125
Width,Overall	301mm
Length,Overall	174mm
Height,Overall	226mm
Mounting Hole	2-20mmx40mm
Hole Range	90mm
Applicable guide	9mm,10mm,16mm,19mm

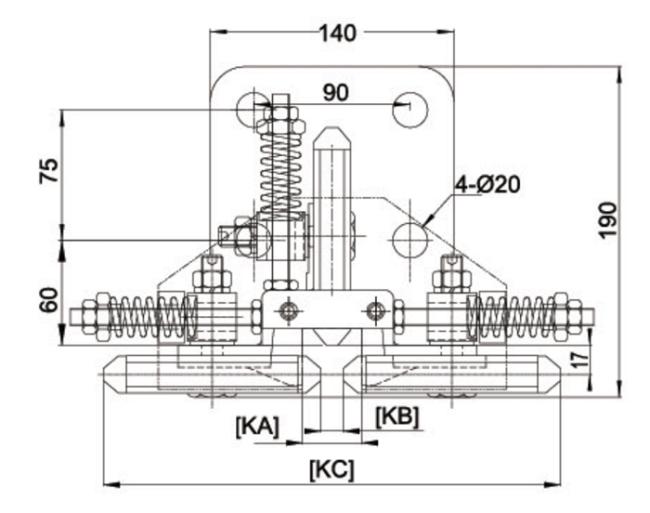

Model	SN-SGS-CB125NS-K
Speed	CWT:5.0m/s,CAR:3.0m/s
Rail Type	8K,13K,18K,24K
Max Rated Load	1800kg
Diameter	Φ125
Width,Overall	301mm
Length,Overall	190mm
Height,Overall	226mm
Mounting Hole	4-20mm
Hole Range	Front75mmxSide90mm
Applicable guide	9mm,10mm,16mm,19mm

FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
