ABS/ABE seriesmotor protection circuit breaker is suitable for industrial or commercial power and lighting with AC50/ 60Hz, rated working voltage up to AC600V/DC250V, rated current up to 630A.
Its a kind of economical breaker with the characters of stable and reliable function, beautiful appearance, small size and long life. It can be used for conversion of line and infrequent starting motor.
It can also be attached to install the accessories which have protection function for avoiding loss-voltage, under voltage.
The product can install connection line with front board and back board, it also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance.
Specifications:
| Model | ABE 225 | ||
| Rated current In(A) 40℃ (standard ambient temperature 40℃) | 125,150,175,200,225 | ||
| Poles | 3 | ||
| Max rated service voltage Ui(V) | AC | 600 | |
| DC | 250 | ||
| Breaking capacities(KA) | AC(Relative Asymmetry/symmetry value) GB14048-2 | 500V 600V | 10 |
| 440V 480V | 14 | ||
| 380V | 25 | ||
| 220V 240V | 50 | ||
IEC60947-2 Icu AC | 500V | 10 | |
| 440V | 14 | ||
| 415V | 25 | ||
| 380V | 25 | ||
| 240V | 50 | ||
| DC | 250V | 20 | |
| 125V | 14 | ||
| Connection method | Pressed terminal | ||
| Automatic tripping device | - | ||
| Trip button | YES | ||

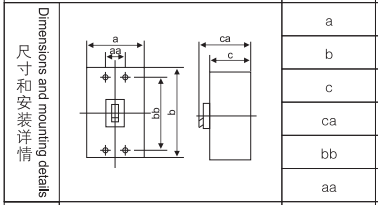

Dimensions and mounting details:
Wiring:
*The wiring method has four ways wiring in front of the board, wiring on back of the board, insertion type in front of the board and insertion type on back of the board.
Inverse time lag characteristic of circuit breaker for distribution
Name of test current | Times of rated current | (h)Conventional time | Intial state | ||
Inm≤40 | 40<In≤250 | In>250 | |||
Conventional non-tripping current | 1.05 | ≥1h | ≥2h | ≥2h | Cold |
Conventional tripping current | 1.3 | <1h | <2h | <2h | Thermal |
Returnable time | 3 | Current of returning characteristic | Current of returning characteristic | Current of returning characteristic | Cold |
3 | 5s | 8s | 12s | Cold | |
Normal working conditions and installation condition:
1. The ambient temperature should be -5°C≤T≤40°C.
2. The max distance should not exceed 2000m.
3. The relative humidity should not exceed 50% at 40°C.
4. The external magnetic within 5 times of earth magnetic field.
5. Installed by standard mounting rail.
6. Upright installation, knob upwards is switch on position.
7. Without obviously impact and libration.
