RED 32A IP67 5P 6h Waterproof Interlocked Switch Socket IEC Standard
RED 32A IP67 5P 6h Waterproof Interlocked Switch Socket IEC Standard
| Current | Position | Voltage | Color | Poles | Model |
| 16A | 4h | 110-130V | Yellow | 2P+E | UKS-J136-4 |
| 4h | 110-130V | Yellow | 3P+E | UKS-J146-4 | |
| 4h | 110-130V | Yellow | 3P+N+E | UKS-J156-4 | |
| 6h | 220-250V | Blue | 2P+E | UKS-J136-6 | |
| 9h | 220-250V | Blue | 3P+E | UKS-J146-9 | |
| 9h | 220-250V | Blue | 3P+N+E | UKS-J156-9 | |
| 9h | 380-415V | Red | 2P+E | UKS-J136-9 | |
| 6h | 380-415V | Red | 3P+E | UKS-J146-6 | |
| 6h | 380-415V | Red | 3P+N+E | UKS-J156-6 | |
| 32A | 4h | 110-130V | Yellow | 2P+E | UKS-J236-4 |
| 4h | 110-130V | Yellow | 3P+E | UKS-J246-4 | |
| 4h | 110-130V | Yellow | 3P+N+E | UKS-J256-4 | |
| 6h | 220-250V | Blue | 2P+E | UKS-J236-6 | |
| 9h | 220-250V | Blue | 3P+E | UKS-J246-9 | |
| 9h | 220-250V | Blue | 3P+N+E | UKS-J256-9 | |
| 9h | 380-415V | Red | 2P+E | UKS-J236-9 | |
| 6h | 380-415V | Red | 3P+E | UKS-J246-6 | |
| 6h | 380-415V | Red | 3P+N+E | UKS-J256-6 |
Product Feature
1.Safety, Environmental,Economic, Multi-function, Safe, Durable, Timesaving
2.Standard plug, Standard socket
3.Provide different series products for different environment
4.Resistance to severe weather and ageing
5.Good space stability and accuracy
6.Effectively prevent power outages and leakage
Specifications
| Product | Interlocked Switch Socket |
| Rated current | 16A,32A |
| No. of poles | 2P+E, 3P+E,3P+N+E |
| Voltage | 110V-130V;220V-250V; 380V-415V |
| Protection degree | IP67 |
| Power type | Single Phase, Three Phase |
| Conductor cross-sectional area (mm2) | 1.5-4(16A), 2.5-10(32A) |
| Material | NYLON,PA, PC, Copper |
| Color | 110V(yellow) 220V,230V(blue) 380V,415V,440V(red) 500V(black) |
Product Applications
Applied to Power distribution equipment.
Applied to Port container terminal
Applied to Refrigerated container
Applied to Power systerm.
Applied to Construction site.
Applied to Large public space.
Applied to Transportation equipment

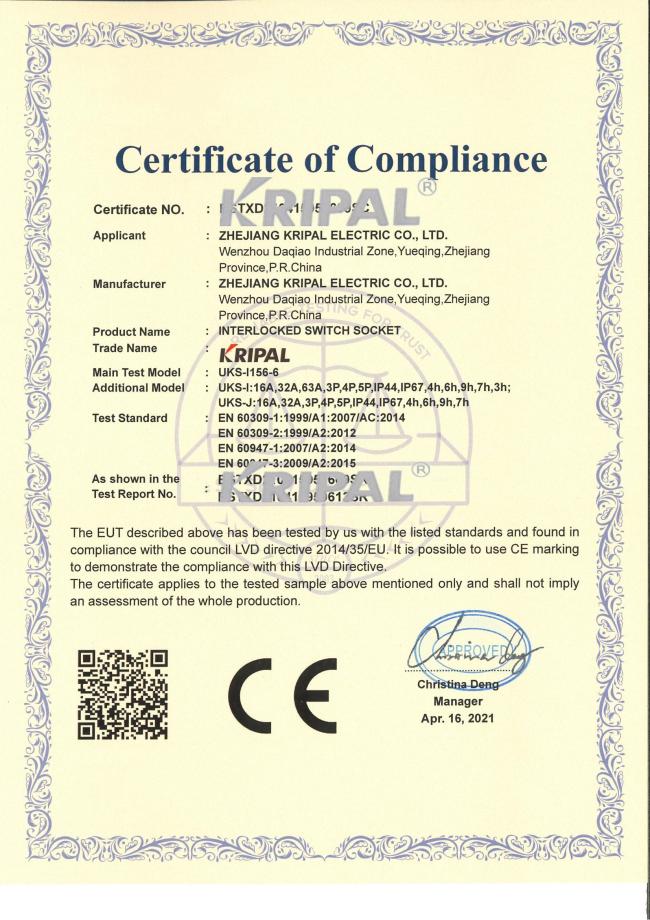

Certification
Packaging & Delivery
| Lead Time | Normally 20 days after received your fund, but mostly depends on your quantity |
| Leading Port | Ningbo or Shanghai by sea or by air. If any other loading port please kindly advise and the extra inland transportation freight will be added accordingly. |
| Trade Term | EXW, FOB, CIF as customer need |
| Payment Term | T/T 30% as deposit,and 70% before delivery. |
| Packaging | Neutral carton, or according to customer requirements |
| Shipping | By Air, by sea, by express |
FAQ
Q:Are you factory?
A:Yes ,our factory is located in Wenzhou, one hour to Yiwu and two hours to Hangzhou by train, and one hour to Shanghai by air .Also very near to Wenzhou international Airport and train station.
Q:Do you offer OEM service?
A:Yes,we have been providing OEM/ODM service to global manufacturers and suppliers for many years.
Q:Can you produce according to the samples?
A: Yes,we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q: What is your sample policy?
A: Sample is available ,but sample should be paied in advance. The cost of sample will be refund after further order.
Q:What′s your quality standard?
A:Our products are complied to UL,VDE,TUV,SEMKO CE,ROHS,CB,IEC……
Our company:
Purple Horn Electric Co., Ltd. was founded in 1992, and now has two production bases, in Wenzhou and Xianju in Taizhou. The company has more than 500 employees, including over 10 senior engineers, 30 professional technicists and 30 senior executives, covering an area of more than 15000 square meters. The company has passed ISO9001 quality system certification, and serves customers with high-quality service, innovative electrical solutions and competitive prices. Therefore, the products are exported to Europe, Australia, America, Africa, Oceania, Southeast Asia, Hong Kong, Macao and Taiwan, with good brand effect in the local area, and won the title of export famous brand enterprise. Our mission is to strive to realize the dream of professional electrical world brand, and strive to improve our company's share in the global market. Welcome to cooperate with Purple Horn to create a better tomorrow.
