Type J Thermocouple Connector 200 Degrees Male And Female Standard
200 Degrees Male And Female Standard Thermocouple Connector Type J
Details of thermocouple connector:
| Manufacturer | Tankii |
|---|---|
| Part Number | J type connector |
| Is Discontinued By Manufacturer | No |
| Color | Black |
| Material | Nylon |
Tankii J-type thermocouple connector conforms to the miniature or mini connector dimensions with two flat prongs and the J-Type Thermocouple Extension Wire specification. You can use this to build your own J-type thermocouple or J-type extension wire.
J-type thermocouples are made from Iron / Constantan metal. This is a high quality connector, the prongs are made from the same Iron / Constantan alloy combination that is used in the wire.
This is also available as a set as well.
Specification:
- for J-Type Thermocouples: Iron / Constantan
- durable glass filled nylon, color coded according to ANSI, J-type black
- captive screws, spring loaded wire terminal and write on label
- stable to 360 degree Fahrenheit or 180 degree Celsius
- transmits the temperature signal over the full J-type range
200 Degrees Male And Female Standard Thermocouple Connector Type J
When to use a Thermocouple Connector
Although the simplest of thermocouples end in bare wires (as found in many laboratory and industrial/research applications, for example), there are many other applications where a connector is usually desirable to make life easier.
The connector is usually used to connect the thermocouple sensor to thermocouple or extension cables, then on to the reference junction and the instrumentation concerned. The connectors allow for rapid fitting or exchange of sensors without sacrificing thermocouple conductor uniformity. Plug and jacks are designed so that their installation can be made simply and securely, with designed-in locking mechanisms. Plugs and jacks are polarized by size and are usually marked for negative and positive polarity. Although there is no standard as such, connectors are generally pin compatible with devices from several manufacturers.
Thermocouple connectors can also be ordered in a smaller compact size which are typically called mini thermocouple plugs and jacks.
The male mini thermocouple plugs have smaller flat polarized plugs.
Thermocouple plugs and jacks can be ordered in a variety of body materials with various temperature ratings to suite your application.
All thermocouple Connectors can be ordered in Type E, J, K, N, T, R, S, and B thermocouple calibrations and with ANSI or IEC Color Coded bodies.

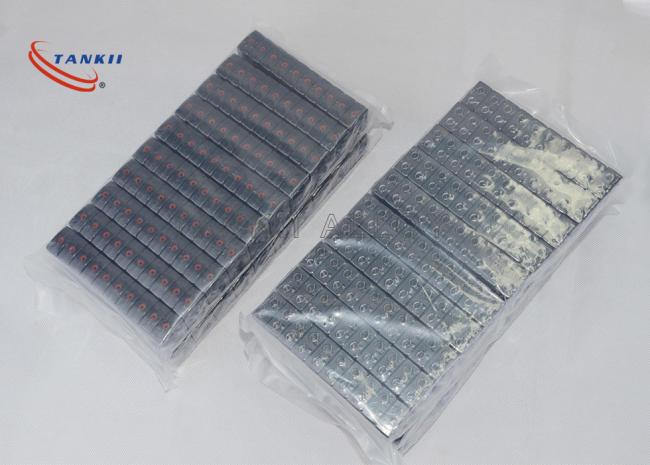

Pack and delivery:
Packing: 100pcs per bag
Delivery time : 5-7 days after getting the payment
Delivery: By express
Application: thermocouple sensor
