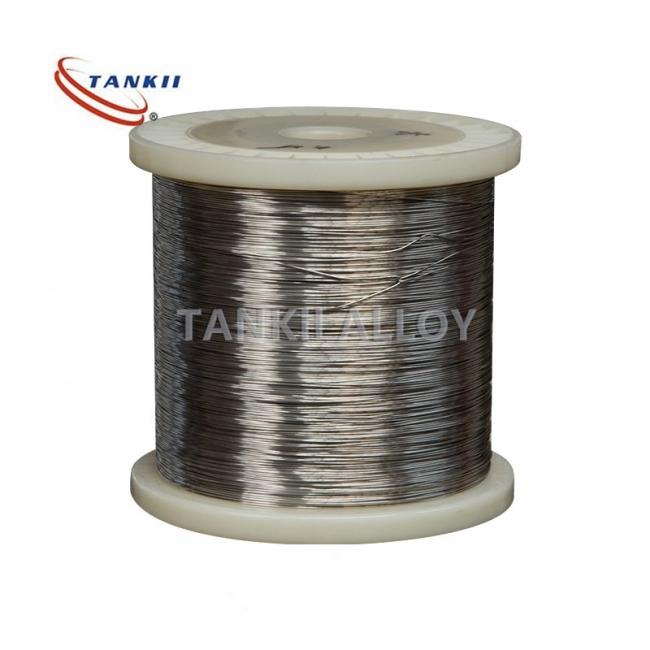

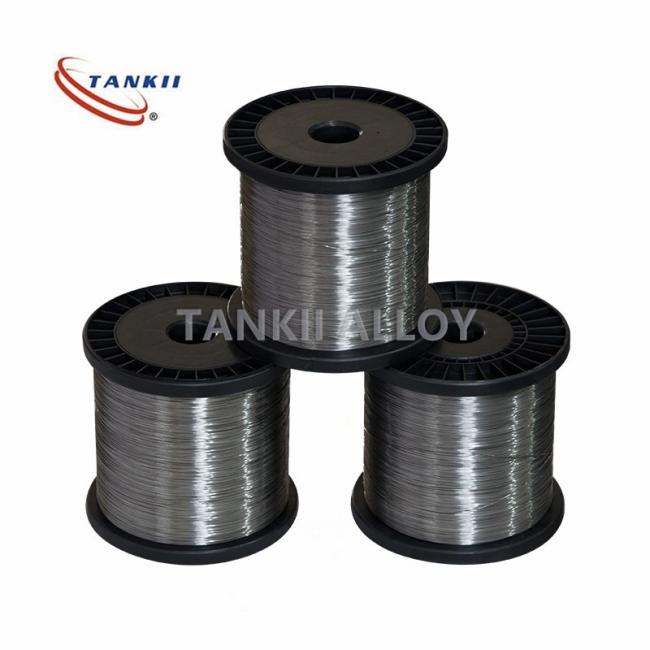

Kp / Kn Chromel Alumel K Type Thermocouple Bare Wire Extension For Sensors 0.3mm
Kp/Kn 0.3mm Chromel Alume K Type Thermocouple Extension Bare Wire for Sensors
Thermocouple wire and thermocouple strip for use at temperatures up to 1260°C (2300°F).Our thermocouple wire is supplied with bright or oxidized surface according to standard or special EMF requirements.
Each individual arm is calibrated against platinum and the EMF values are shown on each coil or spool.
product program for thermocouples includes:
- Thermocouple wire - round and flat
- Thermocouple strip
- Bunched wire
Size range
Wire: Our thermocouple wire ranges from 0.05 to 12.0 mm .Thermocouple wire in the size range 0.05 mm to 2.0 mm can be supplied with or without an insulating coating.Strip: Standard sizes for thermocouple strip range from thickness 0.10 to 2.0 mm ( and width from 2mm to 120 mm
Standards
Our thermocouple alloys are supplied according to the following standards shown below. Where older standards are still in use (which are not equivalent to those listed below), we can supply different EMF values upon request.
Thermocouple temperature range and tolerance
| Type | Standard | Operating temperature range (°C) | Tolerance(°C) | |||
| Long term | Short term | Grade | Temperature range | Tolerance | ||
| Type K | GB/T2614 K | 1200 | 1300 | I | -40~1100 | ±1.5°C/±0.4%t |
| II | -40~1300 | ±2.5°C/±0.75%t | ||||
| Type N | GB/T17615 N | 1200 | 1300 | I | -40~1100 | ±1.5°C/±0.4%t |
| II | -40~1300 | ±2.5°C/±0.75%t | ||||
| Type E | GB/T4993 E | 750 | 900 | I | -40~800 | ±1.5°C/±0.4%t |
| II | -40~900 | ±2.5°C/±0.75%t | ||||
| Type J | GB/T4994 J | 600 | 750 | I | 0~750 | ±1.5°C/±0.4%t |
| II | ±2.5°C/±0.75%t | |||||
| Type T | GB/T2903 T | 300 | 350 | I | -40~350 | ±0.5°C/±0.4%t |
| II | ±1°C/±0.75%t | |||||
| III | -200~40 | ±1°C/±1.5%t | ||||
Tankii's thermocouple products list includes the following:
- Thermocouple wire - round and flat
- Thermocouple strip
- Thermocouple extension leads/extension cables
- Thermocouple compensatingcables
- Bunched wire (Stranded wire)
- Thermocouple protection tubes
- Thermocouple connectors & plug
2. Aluminum
3. Food and Pharmaceutical
4. Forgings
5. Glass, Ceramics, Clay Tiles, Bricks
6. Heat Treating
7. Petroleum, Downhole Oil & Gas
8. Sensor Manufacturing
9. Steel
10. Utilities Power Generation
