0Cr25Al5 FeCrAl Alloy Electric Heating Stove Flat Strip For Industry Furnace

Name: 0Cr25Al5 FeCrAl Alloy Electric Heating Stove Flat Strip For Industry Furnace
Brand: Shanghai Tankii Alloy Material Co.,Ltd

Price Negotiable

Price: negotiation

MOQ: 20kg

Delivery Time: 5-10 days

Brand: TANKII

Product Description

TANKII 0cr25al5 Resistance Heating CrFeAl145 Alloy 1.4765 Wire for Furnace

0cr25al5

General Description
FeCrAl alloy is made by a high-temperature, ferritic iron-chromium-aluminium alloy which can be used at temperatures up to 1350degrees. Typical applications for 0Cr21Al6Nb are as electrical heating elements in high-temperature furnaces in the heat treating, ceramics, glass, steel, and electronics industries.

Feature:
With long service life.Heating up fast.High thermal efficiency.Temperature uniformity. Can use vertically. When being used in the rated voltage,there is no volatile matter.It is an environmental protection electric heating wire. And an alternative to the costly nichrome wire.Can be customized according to customer requirements

FeCrAl alloys are characterized by excellent oxidation resistance and very good form stability resulting in long element life.

They are typically used in electrical heating elements in industrial furnaces and home appliances.

Fe-Cr-Al alloy with high resistivity and serviceability temperature than that for NiCr alloy and also has lower price.

1Cr13Al4, 0Cr19Al3, 0Cr25Al5, 0Cr23Al5, 0Cr21Al6, 0Cr21Al4, 0Cr21Al6Nb, 0Cr27Al7Mo2 is one kind of normal material of Fe-Cr-Al alloy.

Chemical Composition

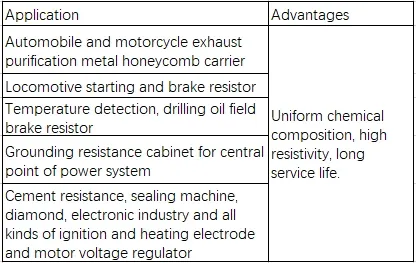

Applications of FeCrAl:

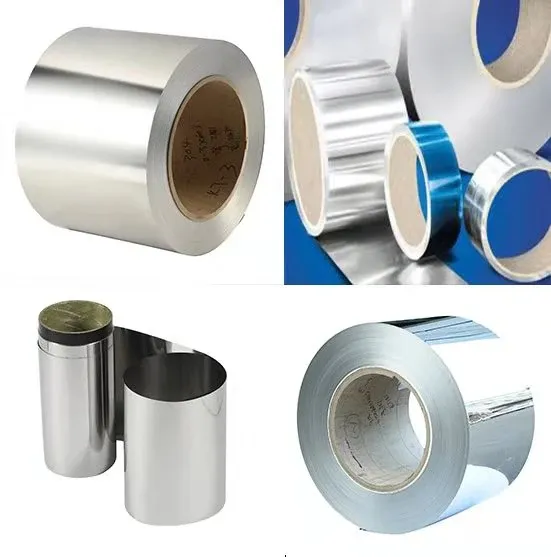

Product Show

Chemical Content, %

Alloy material	Chemical composition %
	C	P	S	Mn	Si	Cr	Ni	Al	Fe	others
	max(≤)				Si	Cr	Ni	Al	Fe	others
1Cr13Al4	0.12	0.025	0.025	0.7	≤1.00	12.5-15.0	-	3.5-4.5	Rest	-
0Cr15Al5	0.12	0.025	0.025	0.7	≤1.00	14.5-15.5	-	4.5-5.3	Rest	-
0Cr25Al5	0.06	0.025	0.025	0.7	≤0.60	23.0-26.0	≤0.60	4.5-6.5	Rest	-
0Cr23Al5	0.06	0.025	0.025	0.7	≤0.60	20.5-23.5	≤0.60	4.2-5.3	Rest	-
0Cr21Al6	0.06	0.025	0.025	0.7	≤1.00	19.0-22.0	≤0.60	5.0-7.0	Rest	-
0Cr19Al3	0.06	0.025	0.025	0.7	≤1.00	18.0-21.0	≤0.60	3.0-4.2	Rest	-
0Cr21Al6Nb	0.05	0.025	0.025	0.7	≤0.60	21.0-23.0	≤0.60	5.0-7.0	Rest	Nb add0.5
0Cr27Al7Mo2	0.05	0.025	0.025	0.2	≤0.40	26.5-27.8	≤0.60	6.0-7.0	Rest
