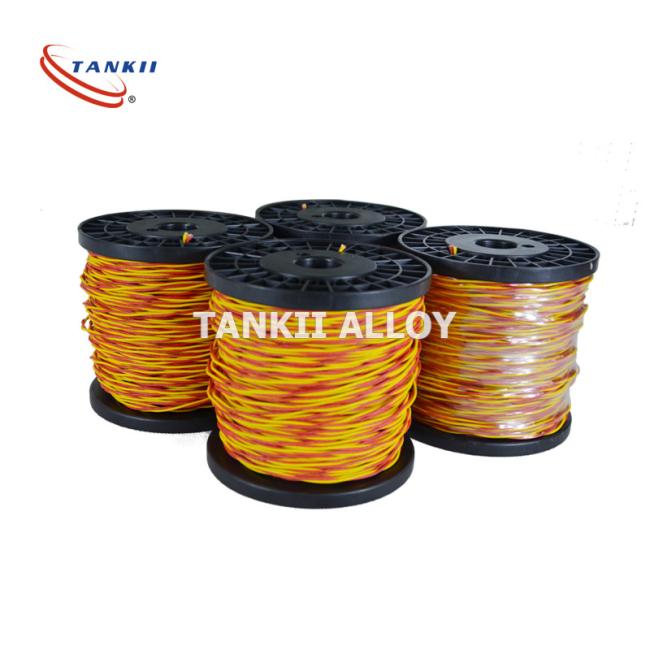

Fiberglass Insulation Shield Kx-Gg K Type Thermocouple Wire High Temperature Cable
Fiberglass Insulation Shield Kx-Gg K Type Thermocouple Wire High Temperature Cable
The thermocouple compensation cables can also be termed as instrumentation cables, since they are used for process temperature measurement. The construction is similar to pair instrumentation cable but the conductor material is different. Thermocouples are used in processes to sense temperature and is connected to the pyrometers for indication and control. The thermocouple and pyrometer are electrically conducted by thermocouple extension cables / thermocouple compensating cables. The conductors used for these thermocouple cables are required to have similar thermo-electric (emf) properties as that of the thermocouple used for sensing the temperature.
The products is manufactured according to the standards of GB/T4989-1994 "Compensating Wire for
Thermocouples" and JB/T7495-1994 "Compensating Cable for Thermocouples".
This kind of products are mainly used as the connect wire in the automatic measure instruments in the
electronic power industry, chemical industry, petroleum industry, metallurgy industry and national defense industry, etc.
| Spec | Unit | Standard requirement | |
| Conductor | Conductor structure | N/mm | 0.51mm*2 |
| Conductor material | Positive leg (+) | Chromel (NiCr10) | |
| Negative leg(-) | Alumel (NiAl2) | ||
| Conductor Grade | -- | Class II (Extension Grade) | |
| OD of conductor | mm | 0.51mm | |
| Insulation | Material | -- | Fiberglass 400ºC |
| Structure | Twisted/Parallel | Twisted | |
| Insulation thickness | mm | 0.3+/-0.05 | |
| Min thickness | mm | 0.25 | |
| OD of each core | mm | 1.01 | |
| Color | Positive leg(+) | Yellow (ANSI color code) | |
| Negative leg(-) | Red (ANSI color code) | ||
| Package | Spool | m/spool | 100 |
| Weight | -- | -- | 0.78kg/100m |
Temperature of insulation materials:
| Insulation materials | Temperature of insulation materials |
| PVC | 0 ~ 80 °C |
| PTFE | 0 ~ 250 °C |
| Glass fiber | 0 ~ 600 °C |
| Quartz yarn | 0 ~ 1000 °C |
| Ceramic fiber | 0 ~ 1200 °C |
