Constantan is a copper-nickel alloy that is widely used in various applications, particularly for its electrical and thermal properties. Here are some key details about constantan wire:

1. Composition:

   • Constantan is typically composed of approximately 55% copper and 45% nickel.
   • The precise copper-nickel ratio can vary slightly depending on the specific alloy composition.

2. Electrical Properties:

   • Constantan has a high electrical resistivity, making it suitable for use in resistors, thermocouple wires, and resistance temperature detectors (RTDs).
   • It has a low and stable temperature coefficient of resistance, which is an important property for applications where precise resistance measurement is required.

3. Thermal Properties:

   • Constantan has a relatively low thermal conductivity compared to pure copper, which makes it useful for applications where thermal isolation is needed.
   • It also has a high Seebeck coefficient, making it a popular choice for thermocouple applications where the generation of a thermoelectric voltage is desired.

4. Applications:

   • Thermocouple wires: Constantan is commonly used as one of the two wires in Type T (copper-constantan) thermocouples, which are widely used in temperature measurement applications.
   • Resistors: Constantan wire is used to make precision resistors due to its stable electrical resistance.
   • Strain gauges: Constantan's electrical resistance change under stress makes it suitable for use in strain gauge applications.
   • Electrical components: Constantan wire is used in various electrical components, such as potentiometers and rheostats.

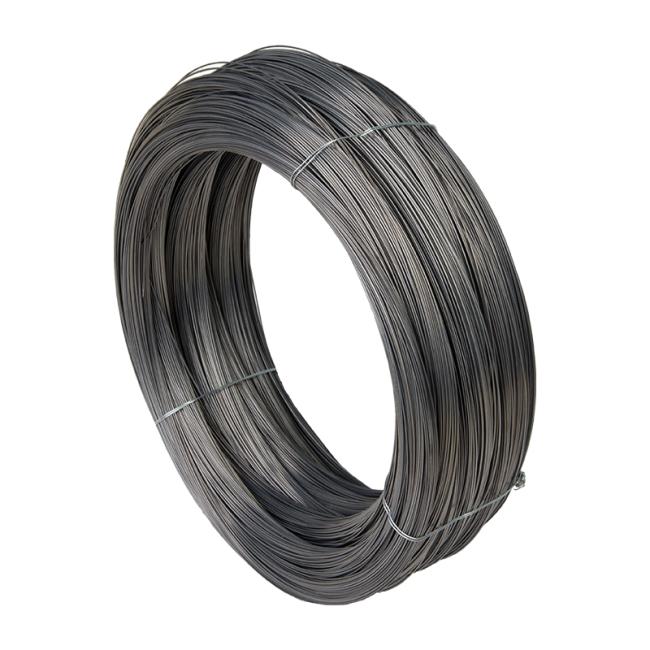

Constantan wire is available in a range of diameters and is commonly used in various industrial, scientific, and engineering applications that require its unique electrical and thermal properties.
