1.5mm*50mm 0cr21al6nb Strip Fecralnb21/6 Strip
Price:
Negotatioin
MOQ:
Negotiation
Delivery Time:
5-30 days
Brand:
Tankii
Product Description

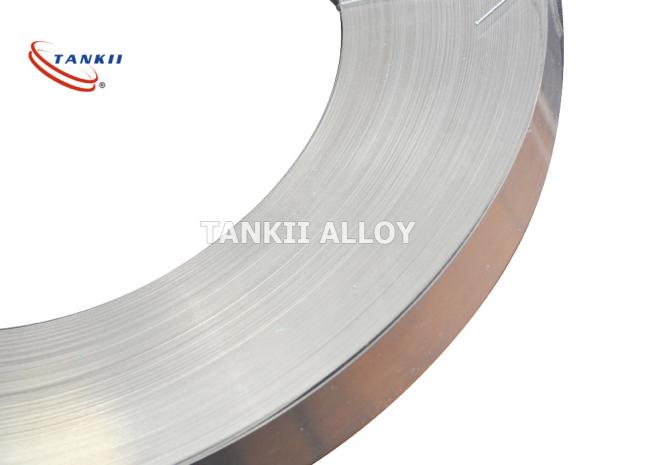

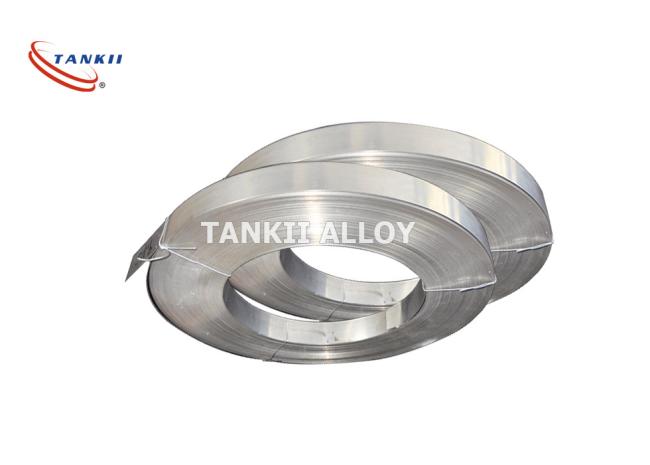

1.5mm*50mm 0Cr21Al6Nb strip FeCrAlNb21/6 Strip
0Cr21Al6Nb is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature.It is suitable for use at temperatures up to 1250°C.
Typical applications for 0Cr21Al6Nb are used in industrial electric furnace, household electrical appliance and far infrared ray device
1. Product Detail
1) Normal Composition(%)
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.12 | 0.025 | 0.025 | 0.70 | Max 1.0 | 18.0~21.0 | Max 0.60 | 3.0~4.2 | Bal. | - |
2)Typical Mechanical Properties(1.0mm)
| Yield strength | Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 550 | 750 | 22 |
3)Typical Physical Properties
| Density (g/cm3) | 7.1 |
| Electrical resistivity at 20ºC(Ωmm2/m) | 1.45 |
| Conductivity coefficient at 20ºC (WmK) | 13 |
| 4)Coefficient of thermal expansion | |
| Temperature | Coefficient of Thermal Expansion x10-6/ºC |
| 20 ºC- 1000ºC | 16 |
| Grade | 1Cr13Al4 | TK1 | 0Cr25Al5 | 0Cr20Al6Re | 0Cr23Al5 | 0Cr19Al3 | 0Cr21Al6Nb | 0Cr27Al7Mo2 | |
|
Nominal composition % |
Cr | 12.0-15.0 | 22.0-26.0 | 23.0-26.0 | 19.0-22.0 | 22.5-24.5 | 18.0-21.0 | 21.0-23.0 | 26.5-27.8 |
| Al | 4.0-6.0 | 5.0-7.0 | 4.5-6.5 | 5.0-7.0 | 4.2-5.0 | 3.0-4.2 | 5.0-7.0 | 6.0-7.0 | |
| Re | opportune | 0.04-1.0 | opportune | opportune | opportune | opportune | opportune | opportune | |
| Fe | Bal. | Bal. | Bal. | Bal. | Bal. | Bal. | Bal. | ||
| Nb0.5 | Mo1.8-2.2 | ||||||||
| Resistivity 20ºC | 1.25 | 1.48 | 1.42 | 1.40 | 1.35 | 1.23 | 1.45 | 1.53 | |
| Density(g/cm³) | 7.4 | 7.1 | 7.1 | 7.16 | 7.25 | 7.35 | 7.1 | 7.1 | |
| Max continuous operating temperature(ºC) | 650 | 1400 | 1250 | 1250 | 1250 | 1100 | 1350 | 1400 | |
