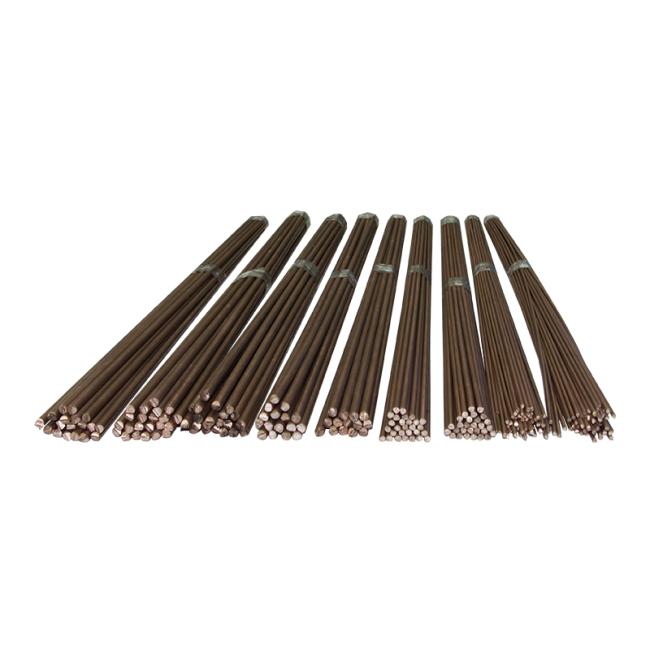

Welded / Seamless C15100 Copper Pipe / Tube / Sheet / Plate / Bar / Rod For Water Treatment Systems
Price:
negotiable
MOQ:
1000 KG
Delivery Time:
7-20 days
Brand:
TANKII
Product Description
C15100
C15100 is a copper alloy known as copper-tellurium (CuTe). Here’s a detailed overview of its properties, composition, and applications:
Properties
- High Electrical Conductivity: Offers excellent conductivity, making it suitable for electrical applications.
- Enhanced Machinability: The addition of tellurium improves machinability compared to pure copper, allowing for easier fabrication.
- Good Strength: Provides good mechanical strength, making it reliable in various applications.
- Corrosion Resistance: Offers decent resistance to corrosion, particularly in non-oxidizing environments.
Applications
- Electrical Components: Commonly used in the manufacture of electrical contacts, connectors, and other components requiring good conductivity.
- Machined Parts: Ideal for precision machined parts in various industrial applications due to its excellent machinability.
- Automotive Industry: Used in components that benefit from high electrical performance and durability.
Summary
C15100 is a copper-tellurium alloy valued for its high conductivity, improved machinability, and strength, making it a popular choice for electrical and industrial applications.
CHEMICAL COMPOSITION
| Zr% | Cu% | |
| Nominal Composition | Bal. | |
| Min | 0.05 | |
| Max | 0.15 |
PHYSICAL PROPERTIES
| Density g/cm3 | 8.9 |
| Conductivity at 20°C %IACS | 92 |
| Elastic Modulus GPa | 120 |
| Poisson's ratio | 0.33 |
| Thermal expansion coefficient 10-6/ K | 17.6 |
MECHANICAL PROPERTIES
| State | Yield strength | Tensile strength | Elongation | Hardness |
| Mpa | MPa | A50% | HV | |
| R325 | ≥310 | 325-385 | ≥2 | 100-125 |
| R365 | ≥350 | 365-425 | ≥2 | 120-145 |
| R405 | ≥395 | 405-450 | ≥1 | 125-150 |
| R440 | ≥425 | 440-500 | ≥1 | ≥135 |
Bending performance
Bending thickness: ≤0.5 mm, bending width: 10 mm
| State | 90° R/T | 180° R/T | ||
| GW | BW | GW | BW | |
| R325 | - | - | - | - |
| R365 | 0 | 0 | - | - |
| R405 | 0.5 | 0.5 | - | - |
| R440 | 1.0 | 1.0 | - | - |
|
Alloy System |
designation |
UNS |
EN |
JIS |
GB (China) |
| Cu | TK11000 | C11000 | Cu-ETP | C1100 | T2 |
|
CuCr/Zr |
TK15100 | C15100 | CuZr0.1 | C1510 | TZr0.1 |
| TK18160 | C18160 | CuCr0.5Zr | — | ||
| TK18150 | C18150 | CuCr1Zr | — | TCr1-0.15 | |
| CuCrSiTi | TK18070 | C18070 | CuCrSiTi |
— |
TCr0.3-0.2- 0.05 |
| CuNiSnCrTi | TK18090 | — | — | — | |
| CuNiP | TK19000 | C19000 | CuNi1P | — | |
| CuTi | TK19920 | C19920 | — | — | — |
|
CuFe |
TK19210 | C19210 | CuFe0.1P | C1921 | TFe0.1 |
| TK19400 | C19400 | CuFe2P | C1940 | TFe2.5 | |
|
CuNiSi |
TK19005 | C19005 | — | — | — |
| TK19010 | C19010 | CuNiSi | — | — | |
| TK70260 | C70260 | CuNi2Si | C7026 | BSi2-0.45 | |
| TK70250 | C70250 | CuNi3SiMg | C7025 | BSi3.2-0.7 | |
| TK70250HS | C70250 | CuNi4SiMg | C7025 | — | |
| CuNiCoSi | TK70318 | C70318 | CuNi3CoSi | — | — |
|
Special Brass |
TK42300 | C42300 | CuZn10Sn1NiSi | — | — |
| TK42500 | C42500 | CuSn3Zn9 | — | HSn88-2 | |
|
CuSn / Bronze
|
TK14415 | C14415 | CuSn0.15 | — | TSn0.12 |
| TK51000 | C51000 | CuSn5 | C5102 | QSn5-0.2 | |
| TK51100* | C51100 | CuSn4 | C5111 | QSn4-0.3 | |
| TK51900* | C51900 | CuSn6 | C5191 | QSn6-0.2 | |
| TK52100* | C52100 | CuSn8 | C5210 | QSn8-0.3 |
