Enamelled Nichrome Wire 0.5mm Swg 28 220 Degree For Resistor

Price Negotiable

Price: Negotiable

MOQ: 1~5kg

Delivery Time: 10-15 days after getting the payment

Brand: Tankii

Product Description

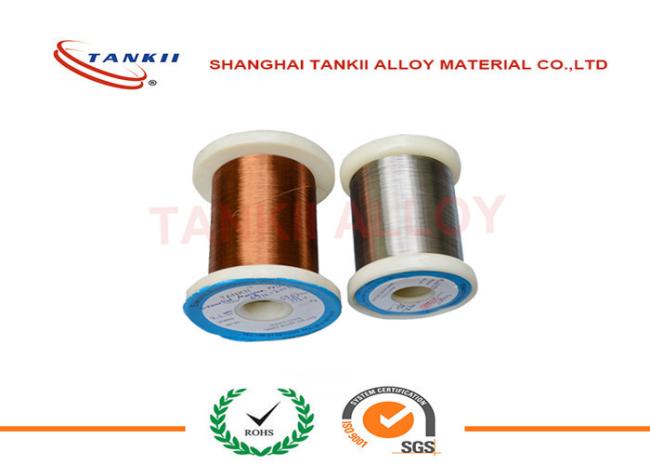

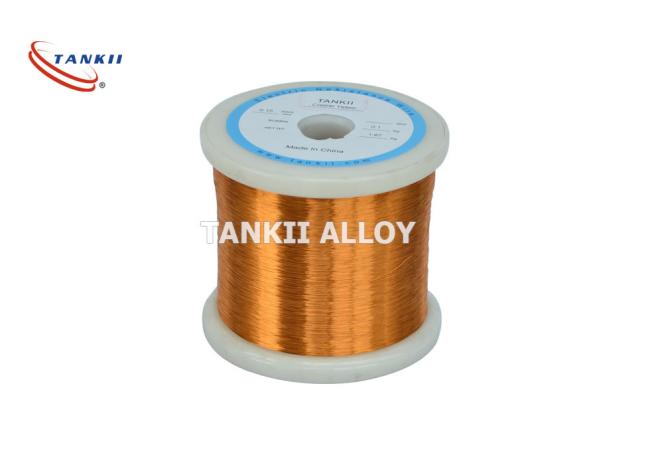

Enamelled Nichrome Wire 0.5mm Swg 28 220degree for Resistor

Enameled Alloy Wire(NiCr80/20)
Common Name:(enameled Resistor wire,enameled heating wire,enameled wound wire)

Product Description
These enameled resistance wires have been broadly used for standard resistors, High /Low Voltage Resistor automobile parts, winding resistors, etc.Using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order.Please make use of this production-on-order.

Type of bare alloy wire

Copper-nickel alloy wire,	Constantan Wire,CuNi1~CuNi44,pure copper
Ni-Cr Alloy wire	NiCr35/20,NiCr70/30,NiCr60/15,NiCr80/20,NiCr90/10,NiCr AA,Karma.
Fe-Cr-Al Alloy wire	Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5, Cr21Al6Nb,Cr27Al7Mo2,
Cu-Ni-Mn Alloy wire	CuMn12Ni2,CuMn12Ni4,Manganin,
Any copper alloy and nickel alloy is available

Color of enameled insulation:

Red,Green,Yellow,Black,Blue,Nature etc.

Type of insulation

Insulation-enamelled Name	Thermal LevelºC (working time 2000h)	Code Name	GB Code	ANSI.TYPE
Polyurethane enamelled wire	130	UEW	QA	MW75C
Polyester enamelled wire	155	PEW	QZ	MW5C
Polyester-imide enamelled wire	180	EIW	QZY	MW30C
Polyester-imide and polyamide-imide double coated enameled wire	200	EIWH (DFWF)	QZY/XY	MW35C
Polyamide-imide enamelled wire	220	AIW	QXY	MW81C

Style of supply

Alloys Name	Type	Dimension
Enameled-W	Wire	D=0.018mm~3mm
Enameled-R	Ribbon	W=0.4~24	T=0.01~0.2mm

Dimension of insulation

D Mm	Min thickness of insulation		Max OD of Enameled
D Mm
0.02	0.005	0.009	0.09	0.036
0.022	0.005	0.019	0.032	0.038
0.025	0.006	0.010	0.036	0.042
0.028	0.006	0.010	0.039	0.045
0.030	0.006	0.011	0.042	0.048
0.032	0.006	0.011	0.044	0.050
0.036	0.007	0.012	0.049	0.055
0.040	0.007	0.012	0.053	0.060
0.045	0.008	0.013	0.059	0.066
0.050	0.008	0.014	0.064	0.072
0.056	0.009	0.015	0.071	0.079
0.060	0.009	0.016	0.076	0.084
0.063	0.009	0.016	0.080	0.088
0.071	0.010	0.017	0.089	0.097
0.080	0.011	0.018	0.099	0.108
0.090	0.012	0.019	0.111	0.120
0.100	0.012	0.021	0.122	0.132
0.112	0.012	0.021	0.135	0.146
0.125	0.014	0.023	0.150	0.161
0.140	0.015	0.024	0.166	0.179
0.150	0.016	0.025	0.177	0.191
0.160	0.017	0.028	0.188	0.202
0.180	0.018	0.028	0.210	0.225
0.200	0.019	0.030	0.231	0.248
0.224	0.021	0.032	0.258	0.275
0.250	0.022	0.034	0.285	0.304
0.280	0.024	0.036	0.318	0.338
0.300	0.025	0.037	0.339	0.360
0.315	0.026	0.038	0.356	0.376
0.355	0.027	0.041	0.398	0.420
0.400	0.028	0.043	0.445	0.468
0.450	0.030	0.048	0.498	0.524
0.500	0.031	0.049	0.551	0.578
0.560	0.034	0.052	0.615	0.643
0.600	0.035	0.054	0.657	0.686
0.630	0.038	0.056	0.689	0.718
0.710	0.038	0.059	0.773	0.805
0.00	0.041	0.062	0.869	0.902
0.900	0.043	0.066	0.973	1.010
1.000	0.048	0.070	1.079	1.117
1.120	0.049	0.074	1.205	1.247
1.250	0.053	0.080	1.343	1.387
1.400	0.058	0.085	1.499	1.548
1.500	0.059	0.090	1.605	1.654

Application:

Applicable to radio, electric light source, mechanical manufacturing, chemical industry, pure nickel wire is an important structural material in vacuum electronic devices, can also be used as a guide wire lead in the bulb.

Welcome to call me or email to me for more information on enamelled wire.
