Pure Nickel 270 Strip UNS N02270 For Corrosion-Resistant Products
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
TANKII
Product Description
Product Description
Nickel 270 Strip
1.Description
Pure nickel 270 stripare made by advanced vacuum melting process.and by forging,rolling,annealing
and drawing. Good mechanical properties corrosion resistance pure nickel 270 strip is used in electric
apparatus,lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp.
Nickel 270 alloy is a high purity nickel alloy that has high ductility and low base hardness. It is made by powder metallurgy. It contains 99.95% nickel in addition to traces of minor elements.
1). Chemical composition(%)
Nickel min 99.9%
2). Physical properties
3). Mechnical properties
2.Specification
Strip:Thickness: 0.02mm to 3.0mm ,Width: 1.0mm to 1000mm
Sheet/Coil:Thickness:0.002-0.125mm
3.Usage
Good mechanical properties corrosion resistance pure nickel 270 strip is used in electric apparatus,lead for lamp
and chemical machinery.Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp.
4.Features
Good mechanical properties corrosion resistance pure nickel 270 strip has Stable performance;Anti-oxidation;
Corrosion resistance;High temperature stability;Excellent coil-forming ability;Uniform and beautiful surface
condition without spots.
5,application
1) Coil (plastic spool) + compressed ply-wooden case + pallet
2) Coil (plastic spool) + carton + pallet
6)Shanghai Tankii Alloy Material Co., Ltd. is your best choice on nickel strip.
If you need, pls be free to contact us. I am Martin Lee
![pure Nickel 270 Strip (UNS N02270)]()
![pure Nickel 270 Strip (UNS N02270)]()
![pure Nickel 270 Strip (UNS N02270)]()
1.Description
Pure nickel 270 stripare made by advanced vacuum melting process.and by forging,rolling,annealing
and drawing. Good mechanical properties corrosion resistance pure nickel 270 strip is used in electric
apparatus,lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp.
Nickel 270 alloy is a high purity nickel alloy that has high ductility and low base hardness. It is made by powder metallurgy. It contains 99.95% nickel in addition to traces of minor elements.
1). Chemical composition(%)
Nickel min 99.9%
2). Physical properties
Grade |
Density (g/cm3) |
Melting Range (ºC) |
Curie point (ºC) |
Volume resistivity (μΩ.cm) |
Thermal conductivity (W/m. ºC) |
Nickel 270 |
8.89 |
1435-1446 |
360 |
79.3(20ºC) |
3). Mechnical properties
FORM |
Yield Strength (Mpa) |
Tensile Strength (Mpa) |
Elongation (%) |
Hardness (RB) |
|
Bar |
Hot-finished |
105-310 |
60-85 |
55-35 |
45-80 |
Cold-drawn,annealed |
105-210 |
55-75 |
55-40 |
75-98 |
|
Strip |
Hard |
480-795 |
620-895 |
15-2 |
>90 |
Annealed |
105-210 |
380-580 |
55-40 |
<70 |
|
Wire |
Annealed |
105-345 |
380-580 |
50-30 |
|
No.1 Temper |
275-520 |
485-655 |
40-20 |
||
Spring Temper |
725-930 |
860-1000 |
15-2 |
||

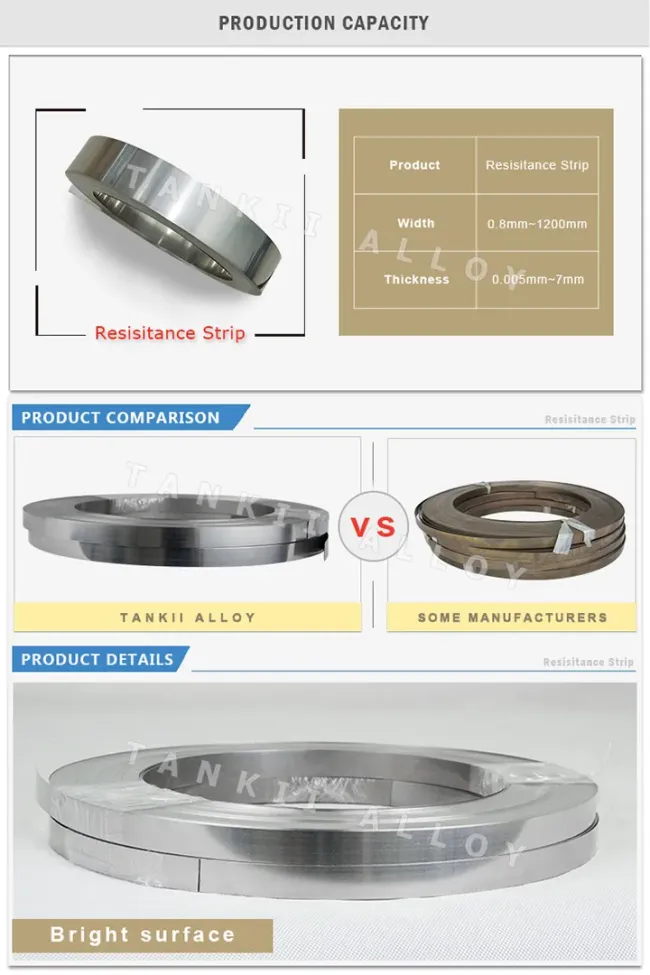

2.Specification
Strip:Thickness: 0.02mm to 3.0mm ,Width: 1.0mm to 1000mm
Sheet/Coil:Thickness:0.002-0.125mm
3.Usage
Good mechanical properties corrosion resistance pure nickel 270 strip is used in electric apparatus,lead for lamp
and chemical machinery.Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp.
4.Features
Good mechanical properties corrosion resistance pure nickel 270 strip has Stable performance;Anti-oxidation;
Corrosion resistance;High temperature stability;Excellent coil-forming ability;Uniform and beautiful surface
condition without spots.
5,application
- Fluorescent light components
- Electronic cathodes or anodes
- Resistance thermometers
1) Coil (plastic spool) + compressed ply-wooden case + pallet
2) Coil (plastic spool) + carton + pallet
6)Shanghai Tankii Alloy Material Co., Ltd. is your best choice on nickel strip.
If you need, pls be free to contact us. I am Martin Lee
