Factory Prices and High Quality Beryllium Copper Alloy Strip C17200 CuBe strip
Price:
25USD/KG
MOQ:
15KG
Delivery Time:
10DAYS
Brand:
TANKII
Product Description
Basic Info.
Model NO.
C17200
Shape
Coil
Density
8.4(g/cm3)
Sample
Small Order Accepted
surface
Bright
colour
Bronze
Elongation
30%
Other Name
CB101
Product Type
copper Alloy
Type
Copper Strips
Application
Water Heater, Air Condition or Refrigerator, Oil Cooler Pipe, Water Tube
Alloy
Alloy
Standard
ASTM
Transport Package
in Roll, in Woodencase Outside
Specification
thick: 0.01-5mm, width: 1-600mm
Trademark
TANKII
Origin
Shanghai, China
HS Code
7409400000
Production Capacity
5000 Ton/Year
Product Description

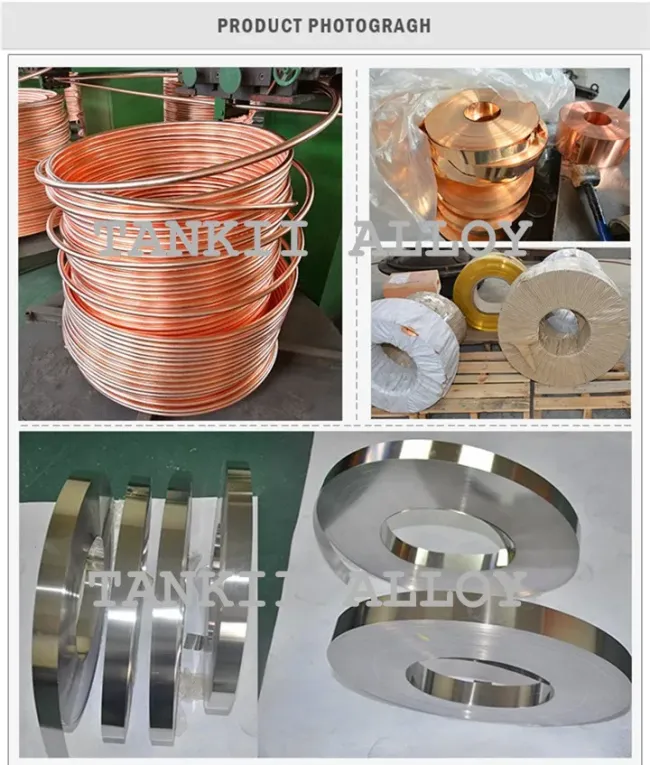

BeCu bar / C17200 Beryllium copper Strip / Sheet/rob/Foil
Unusual wear resistance
High property levels
High yield strength
High hardness values
Beryllium Copper Chemical Composition
beryllium copper C17200
Cube2--C17200 (CDA 172) Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. C17200 alloy contains appr. 2% of beryllium and achieves its ultimate tensile strength can exceed 200 ksi, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition.C17200 also exhibits exceptional resistance to stress relaxation at elevated temperatures.
Chemical Composition
Typical Physical Properties
Mechanical property:(before heat treatment)
Mechanical property:(after heat treatment)
Features
1. High thermal conductivity
2. High corrosion resistance, especially suitable for polyoxyethylene (PVC) products mold.
3. High hardness, wear resistance and toughness, as inserts used with mould steel and aluminium can make the mold play a highly efficient, prolong the service life.
4. Polishing performance is good, can achieve high mirror surface precision and complicated shape design.
5. Good tackiness resistance, easy to welding with other metal, easy to machining, there is no need additional heat treatment.
Applications
Beryllium Copper is widely used in mold core, injection mold insert, mold cavity, corrosion resistant die, die casting
machine head, watering the crossing thimble, the punch mould parts, hot runner system such as accessories,
stretching die, casting mould, die-casting mould, and corrosion resistant wear resistant parts such as bearings,worm gear etc.
Unusual wear resistance
High property levels
High yield strength
High hardness values
Beryllium Copper Chemical Composition
| ASTM | Cu | Ni | Co | Be |
| C17200 | Balance | 1 | 1 | 1.80-2.10 |
| C17000 | Balance | 1 | 1 | 1.60-1.85 |
| C17300 | Balance | 1 | 1 | 1.85-2.10 |
| ASTM | Cu | Ni | Co | Be |
| C17500 | Balance | - | 2.4-2.7 | 0.4-0.7 |
| C17510 | Balance | 1.4-2.2 | 0.3 | 0.2-0.6 |
beryllium copper C17200
Cube2--C17200 (CDA 172) Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. C17200 alloy contains appr. 2% of beryllium and achieves its ultimate tensile strength can exceed 200 ksi, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition.C17200 also exhibits exceptional resistance to stress relaxation at elevated temperatures.
Chemical Composition
| Element | Component |
| Be | 1.85-2.10% |
| Co+Ni | 0.20% Min |
| Co+Ni+Fe | 0.60% Max. |
| Cu | Balance |
Typical Physical Properties
| Density (g/cm3) | 8.36 |
| Density before age hardening (g/cm3 | 8.25 |
| Elastic Modulus (kg/mm2 (103)) | 13.40 |
| Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C) | 17 x 10-6 |
| Thermal Conductivity (cal/(cm-s-°C)) | 0.25 |
| Melting Range (°C) | 870-980 |
Mechanical property:(before heat treatment)
| status | Tensile strength (Kg/mm3) |
Hardness (HV) |
Conductivity ( IACS%) |
Elongation (%) |
| H | 70-85 | 210-240 | 22 | 2-8 |
| 1/2H | 60-71 | 160-210 | 22 | 5-25 |
| 0 | 42-55 | 90-160 | 22 | 35-70 |
Mechanical property:(after heat treatment)
| status | Tensile strength (Kg/mm3) |
Hardness (HV) |
Conductivity (IACS%) |
Elongation (%) |
| H | 130-151 | 380-420 | 22 | 1-5 |
| 1/2H | 126-147 | 370-410 | 22 | 2-7 |
| 0 | 112-135 | 350-339 | 22 | 3-11 |
Features
1. High thermal conductivity
2. High corrosion resistance, especially suitable for polyoxyethylene (PVC) products mold.
3. High hardness, wear resistance and toughness, as inserts used with mould steel and aluminium can make the mold play a highly efficient, prolong the service life.
4. Polishing performance is good, can achieve high mirror surface precision and complicated shape design.
5. Good tackiness resistance, easy to welding with other metal, easy to machining, there is no need additional heat treatment.
Applications
Beryllium Copper is widely used in mold core, injection mold insert, mold cavity, corrosion resistant die, die casting
machine head, watering the crossing thimble, the punch mould parts, hot runner system such as accessories,
stretching die, casting mould, die-casting mould, and corrosion resistant wear resistant parts such as bearings,worm gear etc.
Similar Products
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
Company

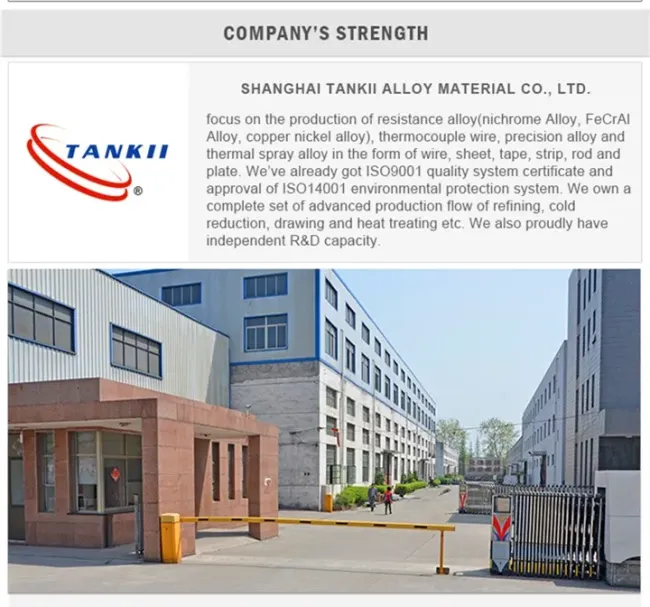

Shanghai Tankii Alloy Material Co.,Ltd
