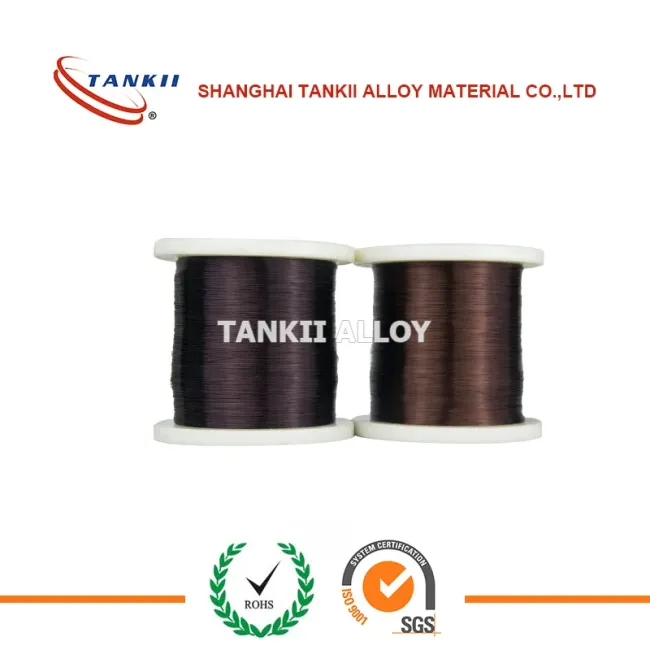

6J22 Karma Alloy Enameled Resistance Wire with Polyimide Insulation and Low TCR for Resistors and Heating Elements
Price:
negotiation
MOQ:
1kg
Delivery Time:
10-30days
Brand:
TANKII
Product Description
Product Description
Karma Resistance Wire for Resistor and heating elements
Product specific
![6J22 Karma Alloy Enameled Wire with Polyimide Insulation]()
![6J22 Karma Alloy Enameled Wire with Polyimide Insulation]()
![6J22 Karma Alloy Enameled Wire with Polyimide Insulation]()
Chemical Element: Cr 19~21.5%, Ni: Balance, Al 2.5~3.2%, Fe 2.5~20%
Resistivity: 1.33 ohm mm2/m
Resistivity 800 Ohms Per Circular Mil Foot at 20° C (68° F)
Wt. Per Cubic Inch =. 293 lbs.
Specific Gravity 8.10
Diameter 0.025mm~5mm
Usage: resistor
Distinctive features of Karma resistance wire
1) Starting with Nickel Chromium electric heat wire Class 1, we replaced some of the Ni with
Al and other elements, and thus achieved a precision resistance material with improved
resistance temperature coefficient and heat electromotive force against copper.
With the addition of Al, we have succeeded in making volume resistivity 1.2 times greater
than Nickel Chromium electric heat wire Class 1 and the tensile strength 1.3 times greater.
2) The secondary temperature coefficient β of Karmalloy wire KMW is very small, - 0.03 × 10-6/ K2,
and the resistance temperature curve turns out to be almost a straight line within a wide
temperature range.
Therefore, the temperature coefficient is set to be the average temperature coefficient between
23 ~ 53 °C, but 1 × 10-6/K, the average temperature coefficient between 0 ~ 100 °C, also may
be adopted for the temperature coefficient.
3) Electromotive force against copper between 1 ~ 100 °C is also small, below + 2 μV/K, and
exhibits excellent stability over a period of many years.
4) If this is to be used as a precision resistance material, low temperature heat treatment is
required to eliminate processing distortions just as in the case of Manganin wire CMW.
We also produce other kind of resistance wire such as NiCr 80/20, NiCr 70/30, Nicr 60/15, Cr25Al5, etc.
![6J22 Karma Alloy Enameled Wire with Polyimide Insulation]()
![6J22 Karma Alloy Enameled Wire with Polyimide Insulation]()
![6J22 Karma Alloy Enameled Wire with Polyimide Insulation]()
![6J22 Karma Alloy Enameled Wire with Polyimide Insulation]()
![6J22 Karma Alloy Enameled Wire with Polyimide Insulation]()
Product specific
| Material | Grade | Diameter Range | Resistivity | Temperature Coefficient | Surface | Supply Form |
|---|---|---|---|---|---|---|
| Nickel Chromium Iron Alloy | 6J22 Karma | 0.01-2.0 mm | 1.35-1.45 μΩ·m | Low TCR | Bright | Spool / Coil |
Chemical Element: Cr 19~21.5%, Ni: Balance, Al 2.5~3.2%, Fe 2.5~20%
Resistivity: 1.33 ohm mm2/m
Resistivity 800 Ohms Per Circular Mil Foot at 20° C (68° F)
Wt. Per Cubic Inch =. 293 lbs.
Specific Gravity 8.10
Diameter 0.025mm~5mm
Usage: resistor
Distinctive features of Karma resistance wire
1) Starting with Nickel Chromium electric heat wire Class 1, we replaced some of the Ni with
Al and other elements, and thus achieved a precision resistance material with improved
resistance temperature coefficient and heat electromotive force against copper.
With the addition of Al, we have succeeded in making volume resistivity 1.2 times greater
than Nickel Chromium electric heat wire Class 1 and the tensile strength 1.3 times greater.
2) The secondary temperature coefficient β of Karmalloy wire KMW is very small, - 0.03 × 10-6/ K2,
and the resistance temperature curve turns out to be almost a straight line within a wide
temperature range.
Therefore, the temperature coefficient is set to be the average temperature coefficient between
23 ~ 53 °C, but 1 × 10-6/K, the average temperature coefficient between 0 ~ 100 °C, also may
be adopted for the temperature coefficient.
3) Electromotive force against copper between 1 ~ 100 °C is also small, below + 2 μV/K, and
exhibits excellent stability over a period of many years.
4) If this is to be used as a precision resistance material, low temperature heat treatment is
required to eliminate processing distortions just as in the case of Manganin wire CMW.
We also produce other kind of resistance wire such as NiCr 80/20, NiCr 70/30, Nicr 60/15, Cr25Al5, etc.
